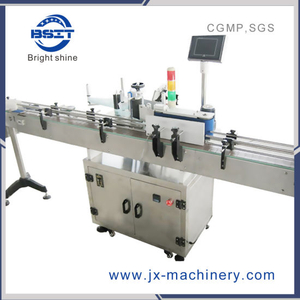

Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min

  • Shanghai, China

  • 30 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • BSM-A

  • Bottles

  • Self Adhesive Sticker Bottle Rotary Labeling Machi

  • 100-200 Bottle/Min

  • 220V, 50Hz

  • 30-100 mm

  • Labeling Machine

  • SUS304

  • Min Dia20mm, Max Dia 120mm

  • Length: 30~200mm Width: 20~90mm

  • Length 2000, Width 900, Height 1500

  • 400kgs

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP Standard

  • Made in China

  • 8422303090

  • Automatic

  • Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products

  • Automatic Labeling Machine

  • Electric

  • Automatic Vertical Round Bottle Labeling Machine

  • Plastic

Self Adhesive Sticker Bottle rotary Labeling Machine capacity 100-200pcs/min

Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min


General Features:

Automatic labeling machine for the application of labels on round bottle. The machine is composed by a conveyor, one of label adaptor and one of label applicator. In case of wrap around label application a side conveyor is installed. There is also the possibility to install a hot stamping unit, print expiry date, batch code etc. The bottle loading/unloading can be done manually, through loading/unloading turntable (alternative Ø620mm or Ø900mm) or directly from an production line.

Technical Features:

Kind of bottle Round
Bottle size Min. Ø20mm Max. Ø120mm
Speed

Step motor SMT-A: 15m/min

Servo motor SMT-B: 25m/min

Label size Length: 30~200mm Width: 20~90mm
Label roll size

Internal dia. Ø 76mm External dia. Ø 300mm

Power 220V 50/60Hz 1.0kw
Machine size mm Length 2000, width 900, height 1500
Machine weight 400kgs

* Other sizes on request

labeling bottle sampe:

Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min

Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min
Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min
Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min
Self Adhesive Sticker Bottle Rotary Labeling Machine Capacity 100-200PCS/Min
