Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine

  • Shanghai, China
  • 30 Sets/Year
  • L/C, T/T, Western Union, Paypal, Money Gram
  • BSMT-A
  • Bottles
  • Automatic Adhesive Wrap-Around Labeling Machine
  • 20-120PCS/Min
  • 25-150mm
  • Length: 30~200mm Width: 20~90mm
  • Labeling Machine
  • Bottle, Ampoule, Suppository,Box
  • 220V,50Hz,
  • Min. Dia 20mm Max. Dia 120mm
  • Internal Dia. 76mm External Dia. 300mm
  • 40kgs
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8422303090
  • Automatic
  • Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Dairy Products
  • Automatic Labeling Machine
  • Mechanical
  • Automatic Vertical Round Bottle Labeling Machine
  • Plastic

1. GP620 BottleTurntable


Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine


Frame • All Stainless Steel Construction to meet the GMP Standard
Specifications
• Feeding disk speed less control system
• Diameter of disk: 620mm
• Turning disk motor power: 100W
• Variable Speed Control for motor
Capacity
• Production Capacity: 40~80 bottles per min.
• Production Capacity Speed can be adjusted.
Dimensions & Weight
• Machine dimension (L x W x H): 1100 x 700 x 1200mm
• Main Machine weight: 60kg
Power Source
• AC220V, 50Hz, 1 Phase

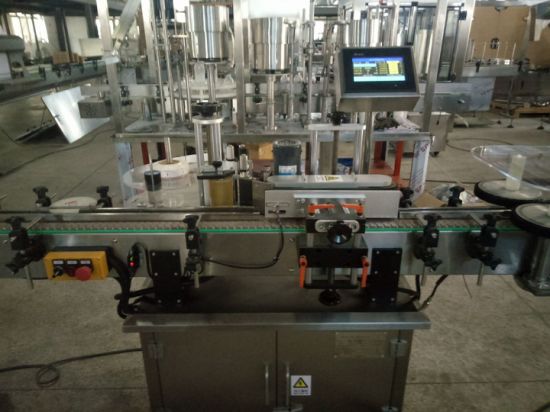

2. BSMT-A Adhesive Label Wrap-Around Machine General Features:
Automatic labeling machine for the application of labels on round bottle. The machine is composed by a conveyor, one of label adaptor and one of label applicator. In case of wrap around label application a side conveyor is installed. There is also the possibility to install a hot stamping unit, print expiry date, batch code etc. The bottle loading/unloading can be done manually, through loading/unloading turntable (alternative Ø620mm or Ø900mm) or directly from an production line.

Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine

Technical Features:

Kind of bottle Round
Bottle size* Min. Ø20mm Max. Ø120mm
Speed Step motor
SMT-A: 15m/min
Servo motor
SMT-B: 25m/min
Label size Length: 30~200mm Width: 20~90mm
Label roll size* Internal dia. Ø 76mm
External dia. Ø 300mm
Power* 220V 50/60Hz 1.0kw
Machine size mm Length 2000, width 900, height 1500
Machine weight: 400kgs
* Other sizes on request

labeling sample:

Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine


Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine
Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine
Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine

Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine
Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine
Automatic Adhesive Sticker Ampoule Tube Vial Labeling Machine
