Shanghai, China
5 Sets/Month
L/C, T/T, Western Union, Paypal, Money Gram
DSM
Vacuum
Pneumatic Lifting
Linear
Bottle
Plastic
Plastic Ampoule Blow-Fill-Seal Machine
Pet/PE, PVC/PE(0.2-0.4)X120mm
50PCS/Min 2 Heads, 100PCS/Min 5 Filling Head
Ampule Filling Machine
0-25 PCS
1-50ml
4.3kw
220/380V/50Hz
550kg
1750X750X1400(mm)
BSIT
Export Standard Wooden Case
meet with GMP standards
Made in China
8422303090
Volumetric Filling Machine
Automatic
Liquid
Multi-Head
Multi-Room Feeding
Plunger

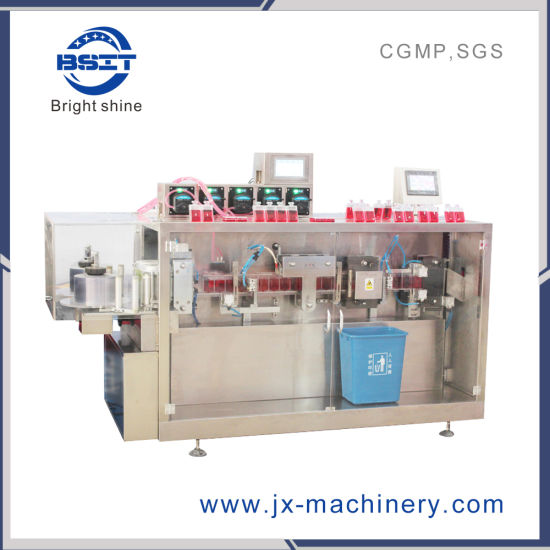

Plastic Ampoule Pharmaceutical Equipment Blow-Fill-Seal Machine DSM
Application:
Oral liquid,liquid,pesticide,perfume,cosmetics and pulp food category ,etc
Characteristics :
1.Controlled by PLC , the frequency conversion in finitely variable speeds.
2. All 6 processes from spreading roll, Ampoule bottle forming, filling , sealing the end , printing serial numbers, cutting the end,
cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head don't drop. Leak, riding bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and sirings adopt inward fittings.
7. Automatic and mechanical bottling, precise calculation and limited deflection
Technical parameter :
Max forming depth | 12mm |
Cutting frequency | 0-50 time 2 filling head |
0-100 time 5 filling head | |
Packing material | PET/PE, PVC/PE(0.2-0.4)X120mm |
Cutting frequency | 0-25 pcs
|
| Capacity | 1-50ml |
Power | 4.3Kw |
Voltage | 220/380V/50Hz |
Whole machine's weight | 550Kg |
Outer size L x W x H(mm) | 1750x750x1400(mm) |
