BGB5F
BSIT
Shanghai seaport
1/3/5 kg
L/C or T/T
1 set

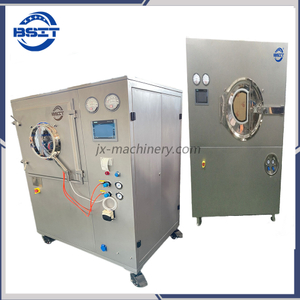

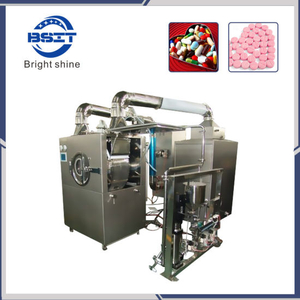

BGB 5F Best Price Tablet Sugar Coating Machine
Introducing the Tablet Film Coating Machine by Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd. This advanced machine is designed to meet the needs of pharmaceutical technology, providing reliable work, stable performance, and adherence to GMP requirements.
The tablet cores undergo continuous and intricate orbital motion within the closed rotating drum, guided by a streamline guide plate. As per the technological process and parameters, the coating medium is automatically sprayed onto the tablet cores. Simultaneously, hot air is supplied under negative pressure, penetrating through the tablet core layers and drying the coating medium evenly. This results in the formation of a solid and smooth surface film.
Three changeable coating drums: 10L, 5L, and 3L, making it suitable for various tablet sizes.
Control system consisting of PLC and HMI, offering flexibility in programming and meeting different pharmaceutical technology requirements.
Agitation of the streamline guide plate ensures smooth tumbling of tablet cores, eliminating the risk of falling and collision, thus reducing broken pieces and chipped edges.
Narrow surface of the guide plate prevents adhesion of coating material, saving coating material and improving medicine quality.
Peristaltic pump with constant pressure and variable turning radius eliminates the need for a return pipe, ensuring balanced slurry output and saving coating material.
Specially designed spray gun with even atomization and large coverage for efficient coating.
Display and control of negative pressure and temperature values for precise coating control.
Fine adjustment of sprayed syrup and control of coverage area of atomized syrup for consistent and controlled coating quantity.
Upgrade your tablet film coating process with the reliable and efficient Tablet Film Coating Machine. Trust in Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd. for cutting-edge pharmaceutical machinery solutions.
technical data:
| Model | BGB-3F | BGB-5F | BGB-10F |
| Production capacity (kg/run) | 3 | 5 | 10 |
| Three drums for one machine(kg , when bulk density is 1) | 1/3 | 1/3/5 | 3/5/10 |
| Diameter of drum(mm) | 300/380/480 | 300/380/480 | 300/380/480 |
| Speed-adjusting range of film coating drum (rpm) | 6-30 | 6-30 | 6-30 |
| Motor power of main machine (kW) | 0.37 | 0.37 | 0.37 |
| Temperature-regulating range of hot air (° C ) | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C |
| Filtration accuracy of hot air ( mm) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) |
| Motor power of air heater (kW) | 0.25 | 0.25 | 0.25 |
| Power of air electric heating(kW) | 5 | 5 | 5 |
| Motor power of exhaust machine (kW) | 1.1 | 1.1 | 1.1 |
| Overall dimension of main machine (mm) | 1100×750×1500 | 1250×900×1680 | 1250×900×1680 |
| Weight of main machine (kg) | 380 | 380 | 400 |
| Power supply:3-phase 5-wire | 400V 20A | |
| Clean air | Pressure Air consumption | >0.4 MPa ≤0.6 m3/min. |
| Water supply:pressure | > 0.15MPa | |
