BGB5F High Efficient Pill Sugar/Tablet/Film Coating Machine
Main introduce:
1. BGB-5F High-efficiency coating machine is a special laboratory equipment which used for coating film on traditional Chinese and Western tablets and pills in pilot run.
2.This equipment is manufactured according to the requirements GMP in pharmaceutical industry.
3.The entire outer surface, coating drum (coating pan).spraying device and all parts in contact with medicine are all made of stainless steel. The whole process is controlled by microprocessor-based programmable control system, and also can be controlled manually. The control system has functions such as a wide range of application, selection of running state, control of speed and temperature, control of negative pressure, complete display of control parameters, recording and printing of working state. All the coating operation is carried out under an airtight condition and is free from dust emission and liquid splash. So that this machine is a high quality, high efficiency, reliable, clean, energy saving, easy operation and new type coating equipment which obeys SOP regulations and is widely used as laboratory equipment.
4. it is meet with GMP
5. SS316/SUS304 contact with product
6. supply IQ and OQ and English manual user's

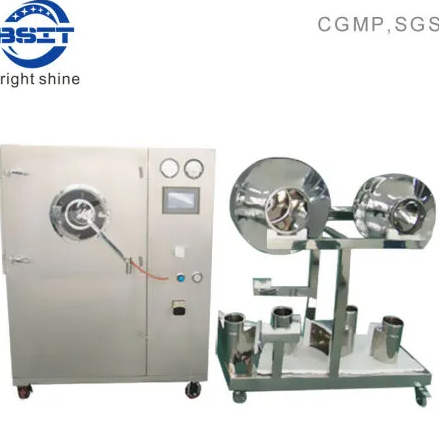

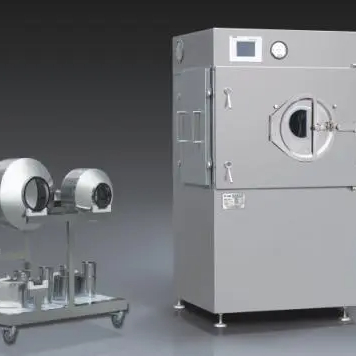

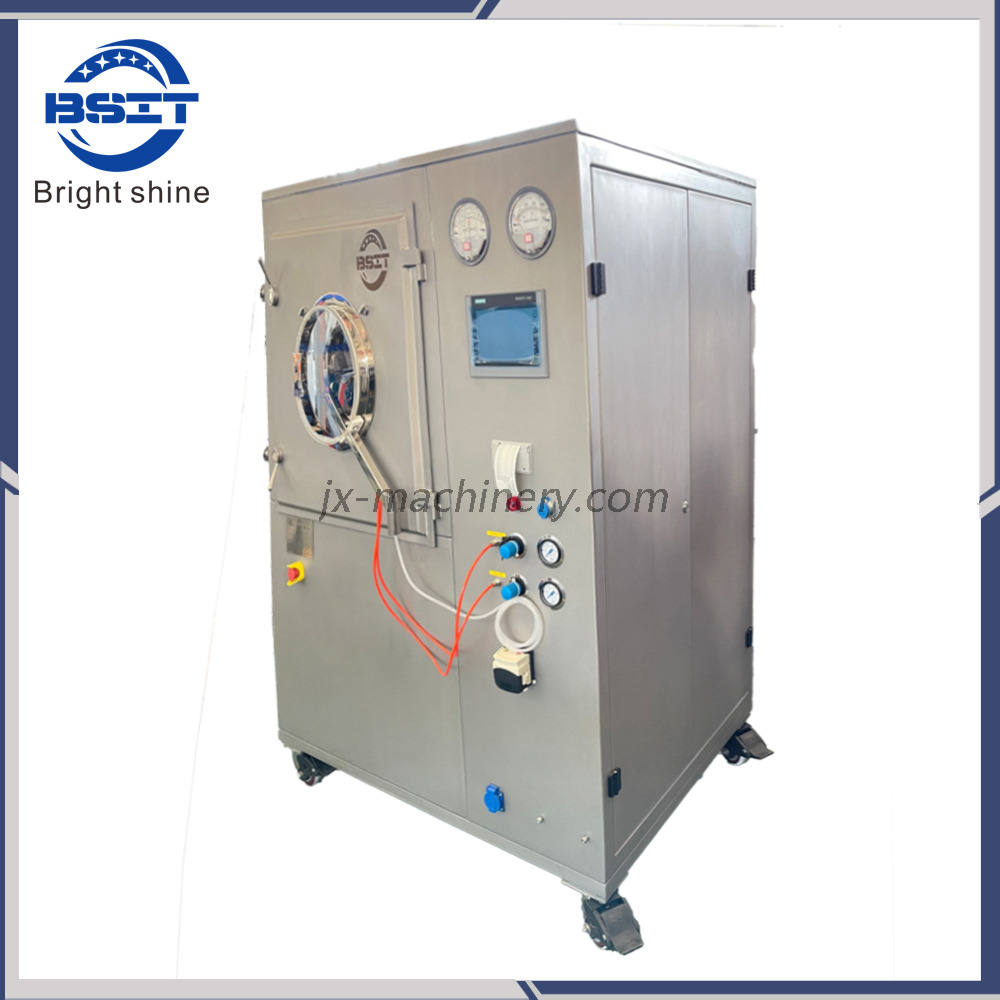

Main machine photo with 3 interchangable pots
Drum sample :
Electrica cabinet
Spray gun device
This machine made of parts as following list
| 1) 2) 3) 4) 5) 6) 7) | Main machine (Including heat exchanger, AHU) Peristaltic pump 1 piece spray gun+ rack Materials discharge device Coating drum rack & coating drums Magnetic stirrer Small slurry mixing device | 5F type OEM10132-313 Drums:5L,1L | 1set 1set 1set 1set 1set 1set |
Features:
Function of integrated design
One machine with three change drums
It is the best model for exploring coating technology in pharmaceutical laboratory.
The coating drum can be replaced according to the coating technology batch
Replacement of the coating drum is convenient and fast.
Control and display the negative pressure in coating pan
Display air pressure of the supply air of HEPA filter
Control and display the temperature
Control and adjust the atomization surface of slurry
Control the program of spray gun and atomization
Design of gun cleaning and anti-blocking
Design the functions of memory and printing
Designed the functions of impulse and dust removing
Technical specifications :
| Model | BGB-3F | BGB-5F | BGB-10F |
| Production capacity (kg/run) | 3 | 5 | 10 |
| Three drums for one machine(kg , when bulk density is 1) | 1/3 | 1/3/5 | 3/5/10 |
| Diameter of drum(mm) | 300/380/480 | 300/380/480 | 300/380/480 |
| Speed-adjusting range of film coating drum (rpm) | 6-30 | 6-30 | 6-30 |
| Motor power of main machine (kW) | 0.37 | 0.37 | 0.37 |
| Temperature-regulating range of hot air (° C ) | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C | Normal temperature ~ 80 ° C |
| Filtration accuracy of hot air ( mm) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) | 0.5 mm (100000 grade) |
| Motor power of air heater (kW) | 0.25 | 0.25 | 0.25 |
| Power of air electric heating(kW) | 5 | 5 | 5 |
| Motor power of exhaust machine (kW) | 1.1 | 1.1 | 1.1 |
| Overall dimension of main machine (mm) | 1100×750×1500 | 1250×900×1680 | 1250×900×1680 |
| Weight of main machine (kg) | 380 | 380 | 400 |
| Power supply:3-phase 5-wire | 400V 20A | |
| Clean air | Pressure Air consumption | >0.4 MPa ≤0.6 m3/min. |
| Water supply:pressure | > 0.15MPa | |
Sample:
BGB5F High Efficient Pill Sugar/Tablet/Film Coating Machine
Main introduce:
1. BGB-5F High-efficiency coating machine is a special laboratory equipment which used for coating film on traditional Chinese and Western tablets and pills in pilot run.
2.This equipment is manufactured according to the requirements GMP in pharmaceutical industry.
3.The entire outer surface, coating drum (coating pan).spraying device and all parts in contact with medicine are all made of stainless steel. The whole process is controlled by microprocessor-based programmable control system, and also can be controlled manually. The control system has functions such as a wide range of application, selection of running state, control of speed and temperature, control of negative pressure, complete display of control parameters, recording and printing of working state. All the coating operation is carried out under an airtight condition and is free from dust emission and liquid splash. So that this machine is a high quality, high efficiency, reliable, clean, energy saving, easy operation and new type coating equipment which obeys SOP regulations and is widely used as laboratory equipment.
4. it is meet with GMP
5. SS316/SUS304 contact with product
6. supply IQ and OQ and English manual user's

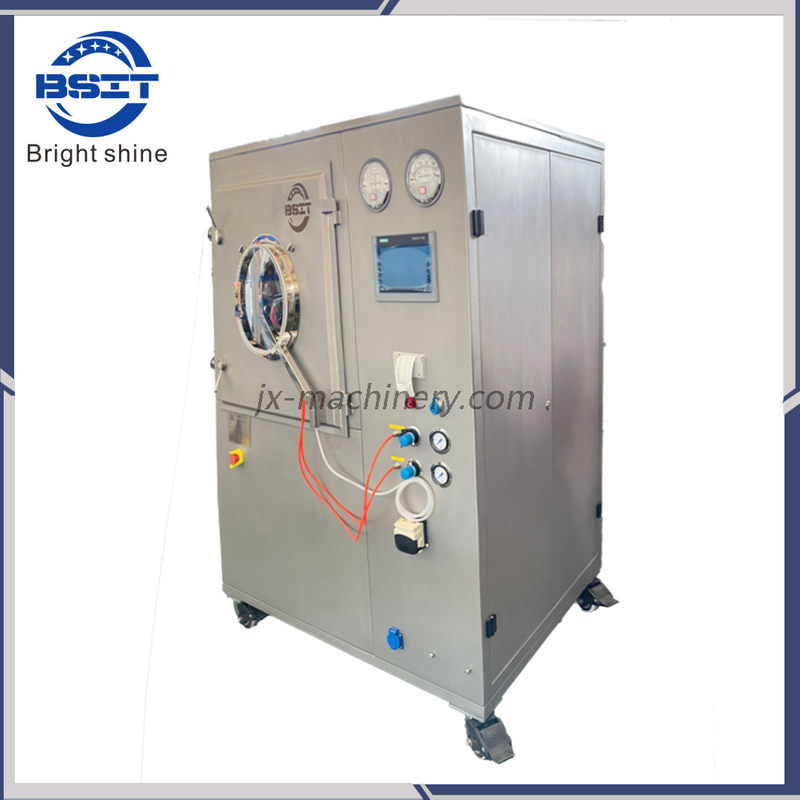

Main machine photo with 3 interchangable pots
