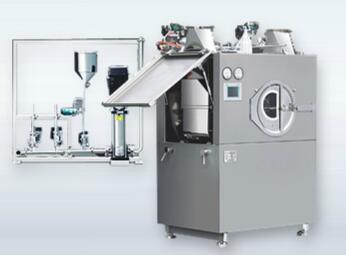

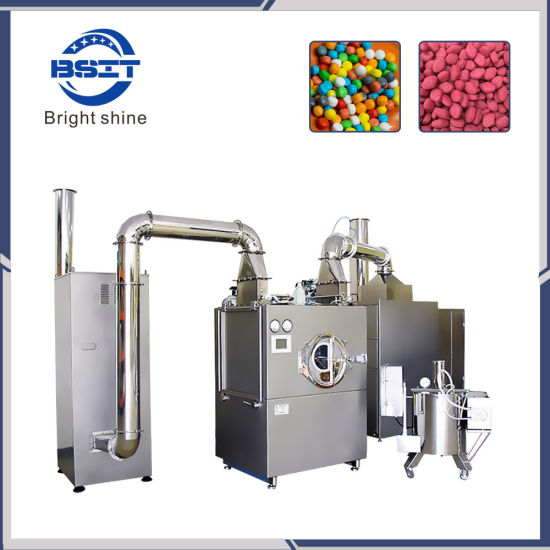

BGB PLC touch screen High Speed SS316/SUS304 Tablet Candy Pill Film Coating MachineUsage:
Application:
The BGW C Series high-efficiency poreless filmcoating machine is a high-efficiency, energy-saving, safe, clean, computer-controlled and macaronis equipment which is used for coating sugar, organic film, water soluble film, slow and controlled release film on traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-hindered pills, drip pills and granulated pills) and conforms to the requirement of GMP. It is a high-tech product first successfully developed in china by this factory.
Working principle:
The tablet cores (micro-pills, small pills or plain tablets) to be filmcoated make continuous complicated orbital motion within a closed rotating drum under the action of a streamline guide plate. Controlled by computer and according to the optimum technological parameters, they are automatically sprayed with filmcoating medium while hot air under a negative pressure is led in from one side of an air distributing pipe at the center of the drum, clean hot air penetrates through the tablet core layers and is discharged after being collected to the other side of the air distributing pipe by a pore duckbill-shaped (or oval) air paddle embedded in the tablet core layers, so that the filmcoating medium sprayed on the surface of tablet cores will dry rapidly and evenly, thereby forming a layer of solid, compact, neat and smooth surface film.
Sample:
Features:
1. It has all the features of BGB-C Series high-efficiency filmcoating machine.
2. The filmcoating drum is with a pore less structure. AboveΦ 0.6mm tablet coating, versatile in use.
3. It has a specially structured air distributing system, and the air intake and exhaust pipes can be interchanged according to the needs.
4. Different materials are equipped with different air paddles. The paddles can be embedded into or taken off from the material according to technology needs.
5. It has a special purging water discharge unit.
Main technical parameters:
| Model | BGW -350C | BGW -150C | BGW -75C | BGW -10C |
| Production capacity (kg/run) | 350 | 150 | 75 | 10 |
| Speed-adjusting range of filmcoating drum (rpm) | 2~11 | 3~15 | 4~19 | 6~30 |
| Motor power of main machine(KW) | 4.0 | 2.2 | 1.5 | 0.55 |
| Temperature-regulating range of hot air (degree) | normal temperature~80 degree | |||
| Filtration accuracy of hot air ( mm) | 0.5μm(100000 grade) | |||
| Motor power of hot air machine(KW) | 2.2 | 1.1 | 1.1 | 0.75 |
| Motor power of exhaust machine(KW) | 7.5 | 5.5 | 3 | 3 |
| Motor power of vibration dust- cleaning device(KW) | 0.37 | 0.37 | 0.37 | 0.37 |
| Motor power of peristaltic pump(KW) | 0.18 | 0.18 | 0.18 | 0.18 |
| Overall dimension of main machine (L×W×H)(mm) | 1740x250 x2270 | 1450x2200 x2100 | 1250x1900 x1900 | 1000x1500 x1600 |
| Weight of main machine(kg) | 2000 | 1100 | 700 | 560 |
