Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV

  • Shanghai, China
  • 50 Sets/Year
  • L/C, T/T, Western Union, Paypal, Money Gram
  • DXDC8IV
  • Green Tea/Black Tea
  • Bag
  • Filter Paper/PE/Paper, Plastic/Foil/P.E
  • Dxdc8I High Speed Tea Bag Packing Machine
  • Tea Bag Packing Machine
  • Black Tea or Green Tea or Hearb Granulte
  • Single Chamber Tea Bag
  • Filter Paper
  • 105+-5bags/Minute
  • 6cm3
  • 62.5mm X 50mm
  • 80mm X 70mm
  • 28mm X 24mm
  • 210mm
  • 1210kg
  • BSIT
  • Wooden Case
  • MeetChina Tea Packing Machine Standard
  • Made in China
  • 8422400000
  • Automatic
  • Tea
  • Tea Bag Packaging Machine
  • Bag Forming Filling Sealing Machine
  • Forming, Filling, Seal
  • Mechanical

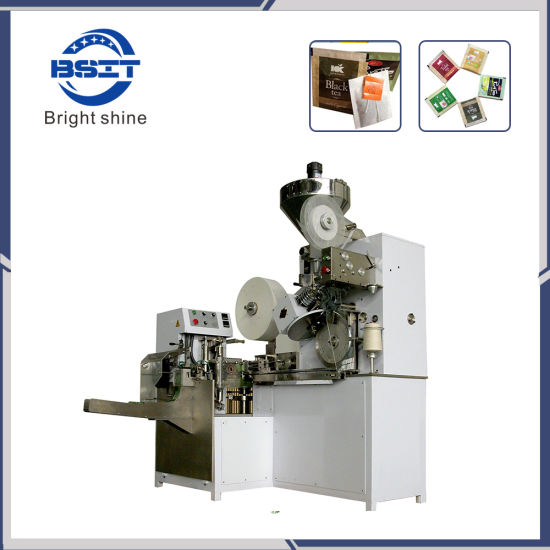

Automatically Green tea/black tea Tea packaging machine with outer bag,thread,tag DXDC8IV


1. Why choose our machine?

1. Single chamber Tea bag packing machine Model DXDC8IV for CTC black tea or green tea or hearb granulte
2. Tea bag packing machine Model DXDC8IV offer filling, heat sealing, threading, labeling and over-wrapping functions.
3. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials.
4.It can pack 20
meshes to 100 meshes or bulk non-viscidity granular materials, such as CTC black tea, green broken tea, herbals into the bag.Main materials include paper/PE, plastic/foil/PE and plastic/PE.

2. Options:

Heat sealable tag system
Date printing device
Semi carton device
Pneumatic vacuum feeder
Modification cutter tool

3. Packing materials

Heat sealing Filter paper: single side heat-sealing ,16.5~20g/m2and 125mm width.
Various heat sealable laminated materials : Plastic/foil/P.E, Paper/P.E,Paper/foil/P.E,Plastic/P.E
Cotton thread: The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.
Tag paper:The tag paper should be bleached paper for food industry specially, 70 g/m2
The adhesive used on this machine is polyvinyl acetate emulsion. Its Brookfield viscosity should be 1600~2800 CP at 25ºC with adhesive


DXDC8IV tea bag packaging machine working video please check https://youtu.be/qUNaYOKbxEw

Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV

Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV
Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV
Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV

Technical Parameter :
Capacity 105±5bags/minute
Max.Filing Volume 6cm3
Bag dimensions 62.5mm x 50mm
Envelope dimensions 80mm x 70mm
Tag dimensions 28mm x 24mm
Thread length 210mm
Power supply AC 380V / 220V
Total power 2.5KW
Net Weight 1210kg
Gross weight 1410kg
Overall dimensions 1688mmx 1330mm x 2205mm
Carton dimensions 1840mm x 1290mm x 1890mm

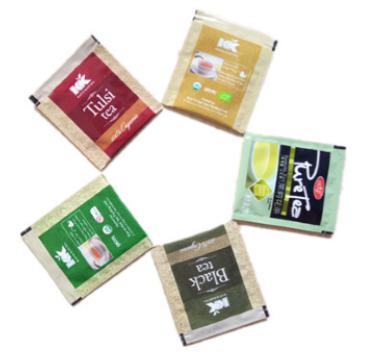

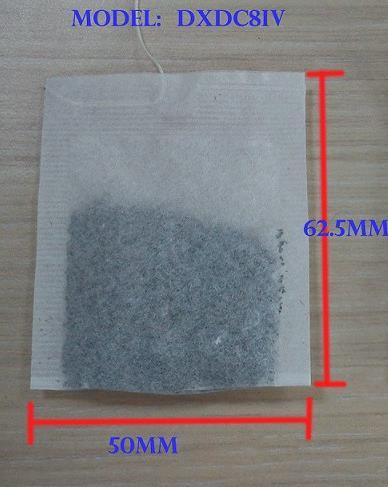

Tea bag inside bag Sample:

Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV

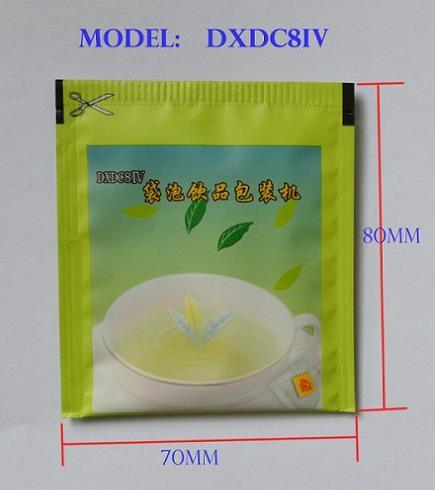

Outer bag size drawing:

Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV
Packing materical drawing size:



Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV


Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV
Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV



Automatically Green Tea/Black Tea Tea Packaging Machine with Outer Bag, Thread, Tag Dxdc8IV
