BSNF-60A Automatic plastic/laminated tube filling & sealing machine Feature:
1. Automatic bar code aligning, especially for oval shape tube
2. Hot air heating for inside sealing and looping cooling water for outside to promise good appearance
3. Dangerous gas generated during the sealing process to be ventilated out through ventilator
4. Change parts promise wide range of diameter of tube
Filling, sealing, batch No. Coding to be incorporated in one machine
5. Tube auto-loading.
7. The total production capacity can be set manually.
9. No tube no filling
Wooden case packing ready for delivery
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Automatic tube filling & sealing machine is import foreign advanced technique,specially designed according to technology of cosmetics, ointment cream products,machine include automatic tube feeding,filling,sealing(tail folding), batch number embossing,filling adopt mechanical piston, electrical control system and operation platform system.
This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for plastic tube, laminated tubes, It is a multi-purpose machine.
Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
Double-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect. Technical data:

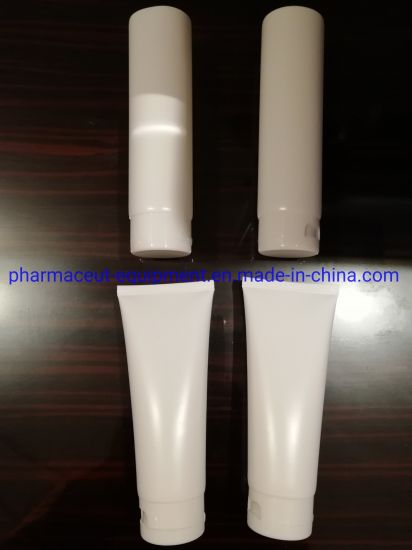

Choose our machine advantage Feature: 1. No tube no filling 2. Have counting function and point function when reach set amount. 3. Error alarm,stopping and alarm in case of door opening,stopping and alarm for too low main air pressure,alarm function for overloading,Emergency stop,bat ch number,Automatic tube discharging 4.Automatic tube feeding, automatic benchmarking. 5.Automatic filling,tail cutting function for viscous material 6.Main drive system located at the bottom of the machine table,safe and no pollution Filling and sealing part are installed in a semi-closed and no static electricity's transparent cap,and installed in the platform,easy to observation and operation., 7.Smooth and flat surface, free of dead corner, being innoxiously and non-smell, free of pollution, easy cleaning, and easy maintenance and servicing. Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc., Sample:
| ||Configuration Standard ||Technical Parameters ||Remarks |
| ||Main Machine |
|(about) 2m2 |
| ||Working Area ||(about)12m2 || |
| ||Water Chiller |
|(about)1m2 || |
| ||Working Area ||(about)2m2 || |
| ||Whole Machine |
|1950×1000×1800mm || |
| ||Integrated Structure ||Union mode || |
| ||Weight ||(about)850Kg || |
|Machine case body |
| ||Case Body Material ||304 || |
| ||Opening Mode of Safety Guard ||Handle Door || |
| ||Safety Guard Material ||Organic Glass || |
| ||Frame Below Platform ||Stainless Steel || |
| ||Case Body Shape ||Square-shape || |
|Power, Main Motor etc. |
| ||Power Supply ||50Hz/380V 3P || |
| ||Main Motor ||1.1KW || |
| ||Hot Air Generator ||3KW || |
| ||Water Chiller ||1.9KW || |
| ||Jacket barrel heating power ||2 KW ||Optional |
| ||Jacket barrel blending power ||0.18 KW ||Optional |
|Production Capacity |
| ||Operation Speed ||30-50/min/max || |
| ||Filling Range ||Plastic/laminated tube 5-250ml || |
| ||Suitable Tube Length ||Plastic/laminated tube 50-210mm ||Pipe length more than 210mm should customize |
| ||Suitable Tube Diameter ||Plastic/laminated tube 13-50mm || |
|Pressing Device |
