Automatic Soft Plastic Tube Filling and Sealing Machine for Toothpaste (Ce Certificate)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BGNY
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Rotary
Packaging:
Tube
Packaging Material:
Soft-Tube
Name:
Soft Tube Filling Sealing Machine
Packing Mateiral:
Plastic Tube or Laminated Tube
Inside Heating Way:
Hot Air Heating for Inside Sealing
Filling Material:
Paste, Cream, Ointment
Keywords:
Tube Filling Sealing Machine
Range of Tube Diameter:
10-35mm for Metal Tube
Range of Filling Volume:
1-150 for Metal Tube
Productivity:
60-80PCS/Min
Filling Error Tolerance:
1%
Motor:
1.1kw
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Paste
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Capacity Cup

Product Description

Automatic Toothpaste Soft Plastic Tube Filling and Sealing Machine (Ce Certificate)

Feature:

1. Automatic bar code aligning, especially for oval shape tube
2. Hot air heating for inside sealing and looping cooling water for outside to promise good appearance
3. Dangerous gas generated during the sealing process to be ventilated out through ventilator
4. Change parts promise wide range of diameter of tube
Filling, sealing, batch No. Coding to be incorporated in one machine
5. Tube auto-loading.
7. The total production capacity can be set manually.
9. No tube no filling

Automatic Soft Plastic Tube Filling and Sealing Machine for Toothpaste (Ce Certificate)

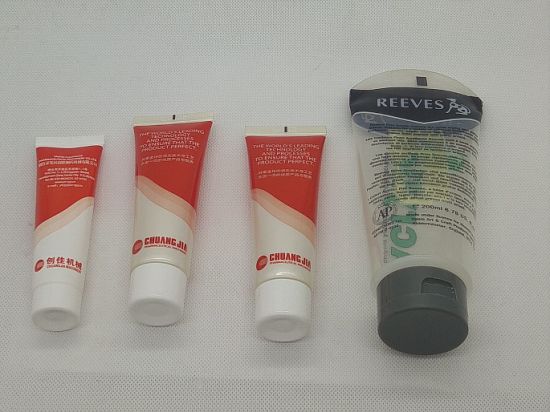

Sample:

Optional feature:

1. Up-down tube can be detected automatically.
2. Automatic cleaning, dust inside the tube is blowed by compressed air and particulates are collected automatically
3. Filling from the bottom to top of the tube, lest any air inside the tube.
4. Temperature control and blending system for material
5. Liquid level sensor

Appliance	plastic tube and laminated tube 10-60mm
Range of tube diameter	10-35mm for plastic tube and laminated tube
Range of filling volume	1-250 for plastic tube and laminated tube
Productivity	60-80PCS/min
Filling error tolerance	1%
Motor	4kw
Air pressure	0.4-0.6Mpa
