Afs-4 Button Control Glass Ampoule Liquid Filling Sealing Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
3800PCS/Hour
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
AFS-4
Filling Principle:
Injection
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Glass
Capacity:
7000-9000 PCS/Hour
Suitable:
1ml,2ml
Name:
Four Head Ampoule Filling Machine with PLC Control
Keywords:
Ampoule Filling Machine
Material:
304 Stainless Steel
Total Power:
0.55kw
Fuel Consumption:
2-2.5m3;/H(Gas), 0.08-0.1MPa(Plg)
Dimensions:
Lxwxh:1650X900X1500mm
Weight:
400kg
Voltage:
380V,50Hz 3p
Trademark:
BSIT
Transport Package:
Export Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Filling Head
Dosing Device:
Plunger

Product Description

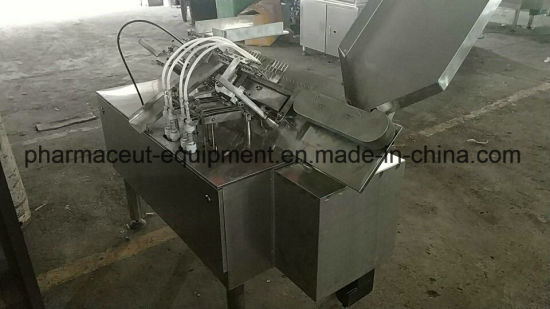

AFS-4 Ampoule filling and sealing machine (4 filling heads)

Tip: ampoule filling machine, ampoule sealing machine, ampoule filling and sealing amchine, ampoule fill seal machine, ampoule filer machine, ampoule filer, ampoule filer and sealer, pharmaceutical ampoule filling and sealing amchine, empty ampoule filling and sealing machine, glass ampoule fililng and sealing machine.

With PLC control + Peristaltic pump filling system

Performance and summary:

Apply sample trial test and small batch production in pharmaceutical industry, ampoule filling and sealing in the condition of sterile.

The machine is four position stepping transmission system, a group of four ampoules enter each position each time, complete send bottle separately, filling nitrogen before, filling liquid, filling nitrogen afterwards and pre-heating, sealing etc process.

Technical parameter:

Ampoule specification	1ml/2ml	5/10ml	20ml
Capacity	About 7000-9000 bottles/hour	About 6000-8000 bottles/hour	About 4000bottles/hour
Material	304 stainless steel
Total power	0.55kw
Fuel consumption	2-2.5m³/h(gas), 0.08-0.1mpa(PLG)
Dimensions	LxWxH:1650x900x1500mm
Weight	400kg
Power supply	380v 50Hz
