Performance and summary

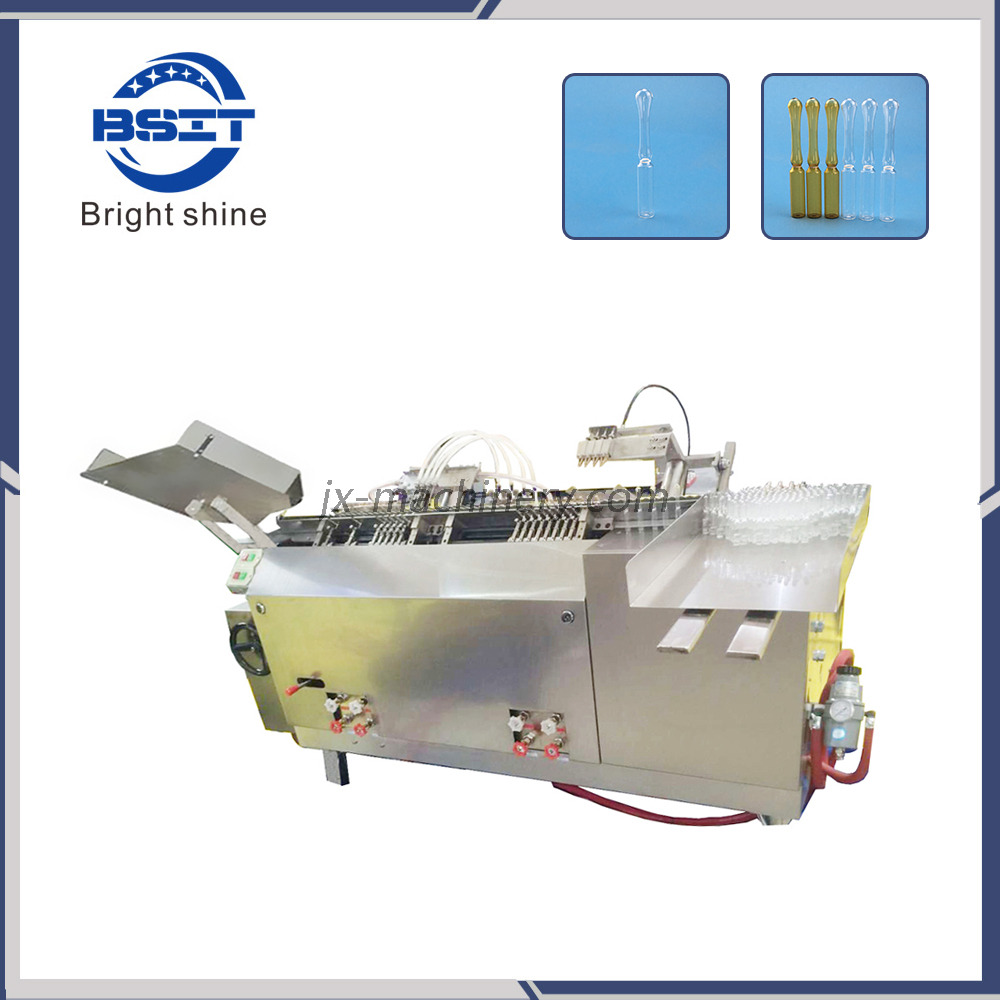

Automatic Closed（D model） Ampoule Opening Filling and Sealing Machine is suitable for pre-sterilized or pre-washed closed mouth ampoules, for filling and packing of liquid medicines/injections, vaccines and other human or veterinary sterile liquids.
The machine is six position stepping transmission system, a group of six ampoules enter each position each time, complete send bottle separately, Automatic Closed Ampoule Opening，filling liquid, pre-heating, sealing etc process.
Meanwhile, Automatic Closed（D model） Ampoule Opening Filling and Sealing Machine also know as Automatic Closed Ampoule Opening, Filling and Sealing machine ampoule Drawing, Filling & Closing machine, Closed Type Ampoule Filling & Sealing Machine, Closed Neck Ampoule Filling and Sealing Machine.
Working process:
Close ampoule---open top part---fill nitrogen gas(optional)---fill liquid---sealing---finished amp
Technical Parameter
Model | AFS-6D |
Ampoule specification | 5-10ml |
Capacity | 7000-8000 bottles/hour |
Material | stainless steel |
Total power | 0.75kw |
Fuel consumption | About 5-5.5m³/h(Piped gas), 2.2-2.8mpa（liquefied gas） |
Machine size and weight | 2400x1000x1350mm 480kg |
