1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
AFS-8
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Glass Ampoule
Name:
Ampoule Injection Filling Sealing Machinery
Filling Heads:
2/4/6/8
Filling System/Pump:
Peristaltic Pump/Glass Syringe
Filling Volume Rnage:
1-2ml/5-10ml/20ml or Others
Ampoule Range:
B/C/D Form Ampoule or Similar Bottle
Material:
Contact with Liquid SS316
Capacity:
16000-18000PCS/H
Opearation Porcess:
Ampoule Feed-Fill( Fill Nitrogen)-Sealing-Output
Optional Device:
Servo Motor/Ceramic Pump/100 Class Laf
Filling Liquid:
Injection/Essence/Collagen/Oil Ect.
Fuel Consumption:
3-4m/H(Gas), 0.08-0.1MPa(Plg)
Combustion-Supporting Consumption:
0.1MPa(1m³) Oxygen
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Multi-Room Feeding
Dosing Device:
Plunger

Product Description

1-20ML High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Our machine advange:

1. Our AFS ampoule filling machine has 2/4/6/8 filling heads as optional
2. Filling system/Pump as peristaltic pump/glass syringe as optional
3. Export this machine HS CODE 8422303090
4. Opearation Porcess ampoule feed-fill( fill nitrogen add this function)-sealing-output
5.Optional device : servo motor/Ceramic pump/100 class LAF
6. suitable Industry pharmaceutical/cosmetic/oil/pesciside/cream
7. Guarantee for 1 year
8. supply FAT testing and SAT testing

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Feeder for empty ampoule

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

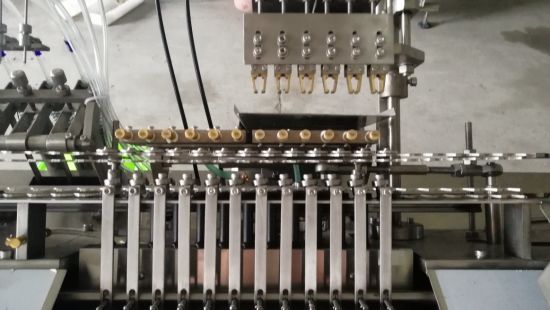

Filling parts+filling fill nitrogen device

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Injection parts pump as standards parts

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Filling parts with injectior head

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Before delivery make FAT testing

1-20ml High Speed Glass Automatic Ampoule Injection Filling Sealing Machinery

Performance and summary

Apply sample trial test and small batch production in pharmaceutical industry, ampoule filling and sealing in the condition of sterile.

The machine is eight position stepping transmission system, a group of eight ampoules enter each position each time, complete send bottle separately, filling nitrogen before, filling liquid, filling nitrogen afterwards and pre-heating, sealing etc process.

Technical parameter:

Ampoule specification	1/2ml
Capacity	About 16000-18000 bottles/hour
Material	304 stainless steel
Total power	0.55kw
Fuel consumption	3-4m³/h(gas), 0.08-0.1mpa(PLG)
Combustion-supporting consumption	0.1Mpa(1m³) oxygen
Dimensions	LxWxH:1850x900x1500mm
Weight	400kg
Power supply	380v 50Hz
