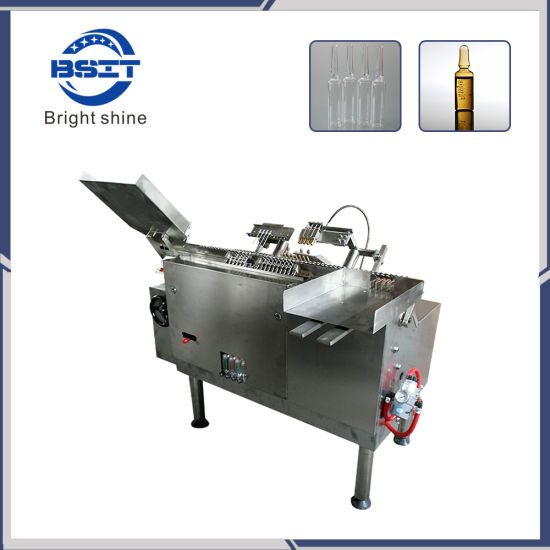

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

  • Shanghai, China

  • 3800PCS/Hour

  • T/T, Western Union, Paypal, Money Gram

  • AFS-4

  • Injection

  • Pneumatic Lifting

  • Linear

  • Bottle

  • Glass

  • 7000-9000 PCS/Hour

  • 1ml,2ml

  • Four Head Ampoule Filling Machine with PLC Control

  • Ampoule Filling Machine

  • 304 Stainless Steel

  • 0.55kw

  • 2-2.5m3;/H(Gas), 0.08-0.1MPa(Plg)

  • Lxwxh:1650X900X1500mm

  • 400kg

  • 380V,50Hz 3p

  • BSIT

  • Export Wooden Case

  • meet with GMP standards

  • Made in China

  • 8422303090

  • Volumetric Filling Machine

  • Automatic

  • Liquid

  • Multi-Head

  • Filling Head

  • Plunger

1-10ml pharmaceutical small injection liquid ampoule filling sealing machine

Performance and summary:

Apply sample trial test and small batch production in pharmaceutical industry, ampoule filling and sealing in the condition of sterile.

The machine is four position stepping transmission system, a group of four ampoules enter each position each time, complete send bottle separately, filling nitrogen before, filling liquid, filling nitrogen afterwards and pre-heating, sealing etc process.

With PLC control + Peristaltic pump filling system

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine
1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine
1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine
Ampoule fiiling sample:

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

English Manual user's

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

Customer Make FAT testing


1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine

Technical parameter:
Ampoule specification 1ml/2ml 5/10ml 20ml
Capacity About 7000-9000
bottles/hour
About 6000-8000
bottles/hour
About 4000bottles/hour
Material 304 stainless steel
Total power 0.55kw
Fuel consumption 2-2.5m³/h(gas), 0.08-0.1mpa(PLG)
Dimensions LxWxH:1650x900x1500mm
Weight 400kg
Power supply 380v 50Hz

1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine


1-10ml Pharmaceutical Small Injection Liquid Ampoule Filling Sealing Closing Machine
