6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • DXDC8IV)
  • 80mm X 70mm
  • 28mm X 24mm
  • 210mm
  • 1210kg
  • BSIT
  • Wooden Case
  • MeetChina Tea Packing Machine Standard
  • Made in China
  • 8422400000
  • Black Tea or Green Tea or Hearb Granulte
  • Single Chamber Tea Bag
  • Filter Paper
  • 105+-5bags/Minute
  • 6cm3
  • 62.5mm X 50mm
6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)

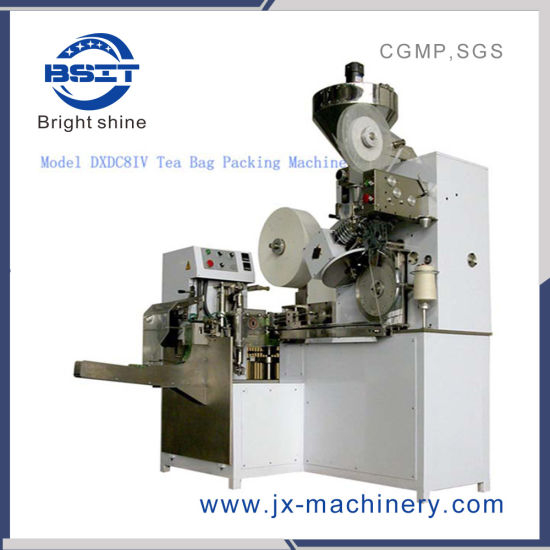

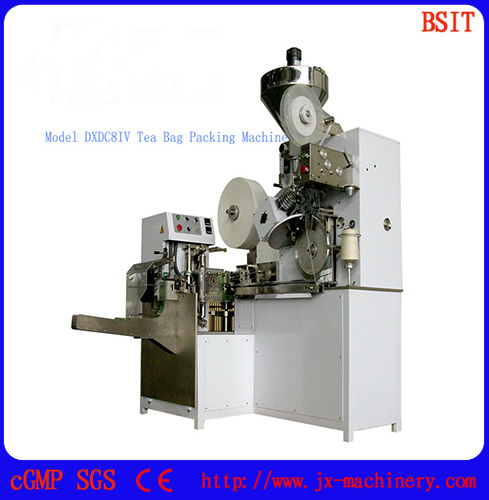

Single chamber Tea bag packing machine Model DXDC8IV for CTC black tea or green tea or hearb granulte

1. Our machine advantage:

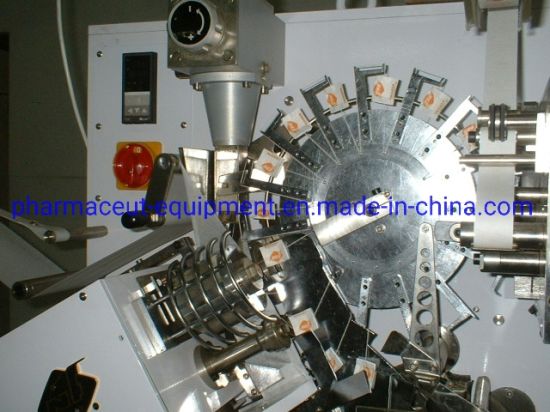

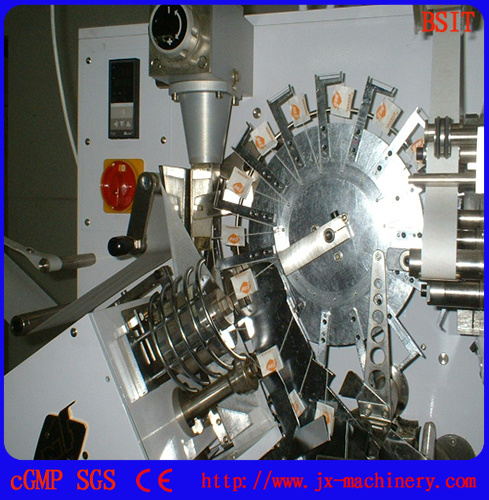

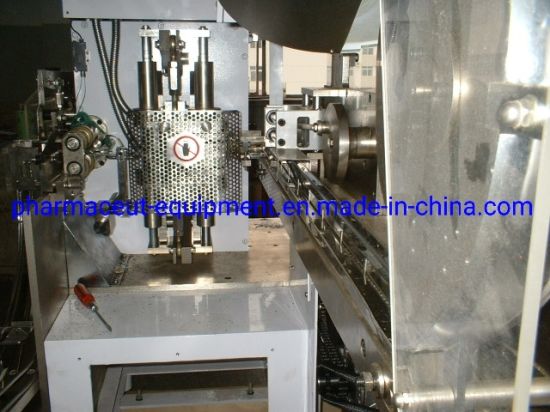

1. Tea bag packing machine Model DXDC8IV offer filling, heat sealing, threading, labeling and over-wrapping functions.

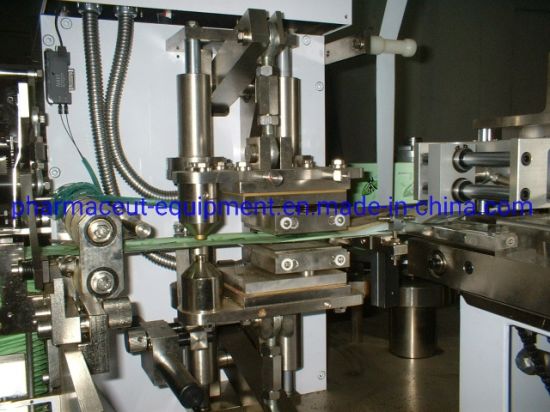

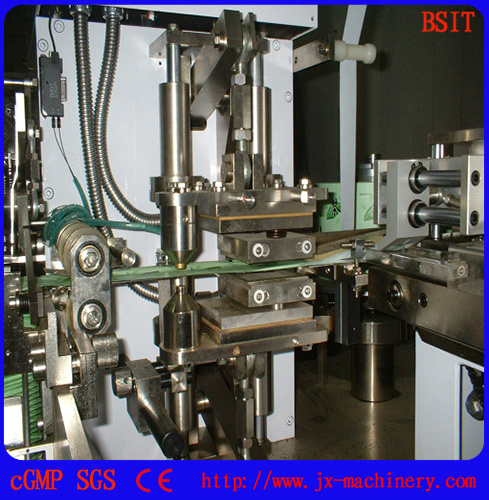

2. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials.
3. It can pack 20
meshes to 100 meshes or bulk non-viscidity granular materials, such as CTC black tea, green broken tea, herbals into the bag.Main materials include paper/PE, plastic/foil/PE and plastic/PE.

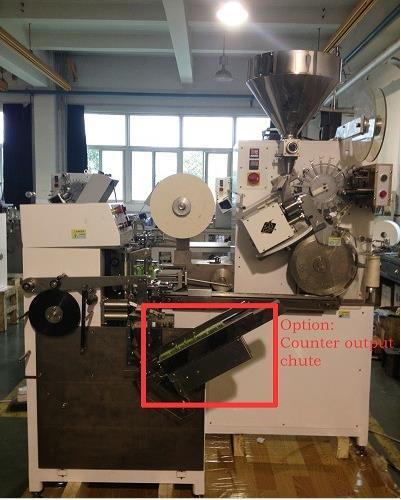

2. Options parts :

Heat sealable tag system
Date printing device
Semi carton device
Pneumatic vacuum feeder
Modification cutter tool
3. Packing materials

Heat sealing Filter paper: single side heat-sealing ,16.5~20g/m2and 125mm width.
Various heat sealable laminated materials : Plastic/foil/P.E, Paper/P.E,Paper/foil/P.E,Plastic/P.E
Cotton thread: The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.
Tag paper:The tag paper should be bleached paper for food industry specially, 70 g/m2
The adhesive used on this machine is polyvinyl acetate emulsion. Its Brookfield viscosity should be 1600~2800 CP at 25ºC with adhesive


High Speed Tea Bag Packing Machine working video please check https://youtu.be/qUNaYOKbxEw

6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)
6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)

6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)
6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)
6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)
Technical Parameter :
Capacity 105±5bags/minute
Max.Filing Volume 6cm3
Bag dimensions 62.5mm x 50mm
Envelope dimensions 80mm x 70mm
Tag dimensions 28mm x 24mm
Thread length 210mm
Power supply AC 380V / 220V
Total power 2.5KW
Net Weight 1210kg
Gross weight 1410kg
Overall dimensions 1688mmx 1330mm x 2205mm
Carton dimensions 1840mm x 1290mm x 1890mm

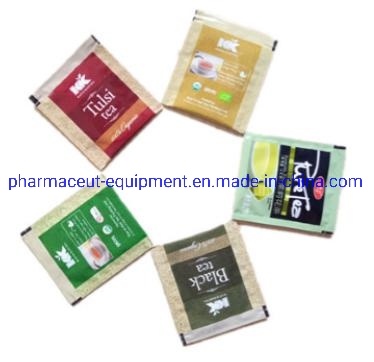

Tea Sample:
6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)

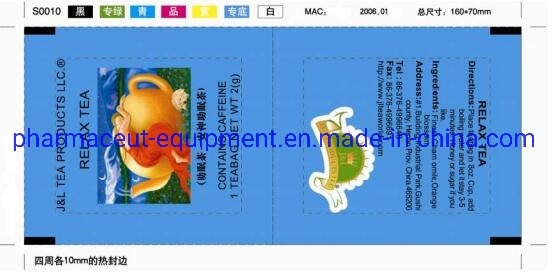

Packing materical size:


6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)



6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)



6300bags Per Hour/ Heat Sealing of Envelope for Tea Bag Packing Machine (DXDC8IV)
