Zs-I Model Pharmaceutical Machine Suppository Filling and Sealing Machine (GMP Standards)



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
20 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
ZS-I
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Empty Suppository Belt
Packaging Material:
Plastic
Product:
Liquid Suppository
Control System:
PLC
Output:
6000-10000suppositoies/H
Material:
SS316/SUS304
Packing Material:
PVC, PVC/PE
Center Distance of Bullet:
17.5mm
Dosage Per Suppository Cell:
1-5g/Cell
Volume of Storing Fluid Vessel:
50L
Total Power:
13kw
Weight:
2000kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

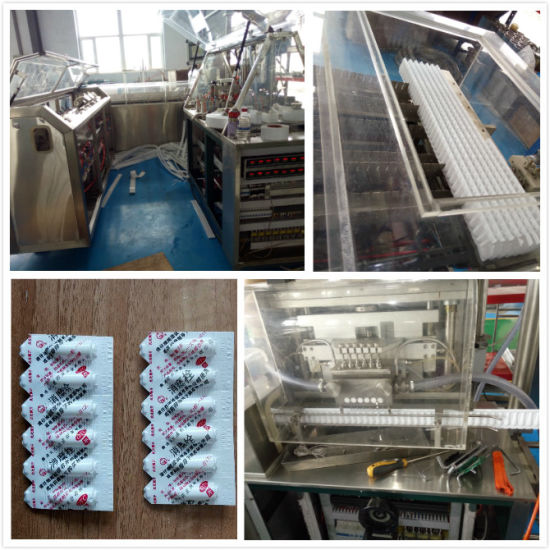

ZS-I model suppository filling and sealing machine that has been developed for the production of suppositories in PVC, PVC+PE. Its working is completely automatic, pneumatically based, controlled by a programmable logic(PLC).

Work principle:

Rolls of bits and pieces of plastic materials(PVC, PVC/PE)is formed with plastic-blowing methods above atmosphere pressure in suppository shell manufacturing machine, automatically enters embedment process.
After the mixed medicinal liquid automatically embed into the empty shell through high precision measure pump it is cut into bars of equal length fragment. Through setting in low temperature for a certain time, liquid-solid transmation, it is charged into solid grain. Through process of plastic, seal, printing lot number and cutting, the finished product of suppository is made.

Technological Character:

1. Plugged embedment, accurate position, no drops of medicine, not covered on the bottle and high precision measure.
2. Wide applicability, gelatin medium and traditional Chinese medicine with extremely difficult can be imbedded.
3. PLC programmable control and industrial men-computer operation, high degree automation, easy adjustment, high precision temperature control, reliable work and smooth operation.
4. Large capacity of liquid reserve, constant temperature, automatic control of mixing and surface of liquid.
5. Low pesition of medicinal packing, low labor intensity. Heat preservation equipment of circulation liquid supply and pipe, guaranteeing the medicinal liquid not become solid not become sold when the machine stops.
6. Small area, easy operation.

Technical Parameter:

Output	6000-10000suppositories/h
Center Distance of Bullet	17.5mm
Center Distance of Duck Bill	26.25mm
Dosage per suppository cell	1-5g/cell
Allowable Error of granular weight	± 2%
Volume of storing fluid vessel	50L
Height of feeding	1600mm
Total Power	13KW
Air Pressure	0.6Mpa
Air Consumption	1.5M3/Min
Water Consumption	600L /h be used in circle
Total Weight	2000kg
Overall Dimension	350030002500mm --6900× 1500× 1700mm

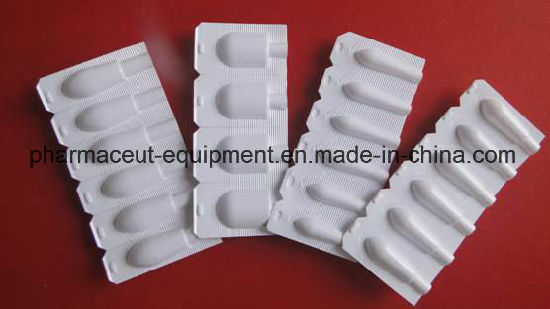

Shape of suppository	Bullet form, torpedo form, duck-mouth form and other special form.
