High Quality Control Anti Fungal Vaginal Suppository Filling Sealing Cutting Packing Machine



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
20 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
ZS-U
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Suppository Shell Belt
Packaging Material:
Plastic
Product:
Suppository Liquid
Output:
6000-10000suppositories/H
Packing Material:
PVC, PVC/PE
Center Distance of Bullet:
17.5mm
Filling Volume:
1-5ml
Volume of Storing Fluid Vessel :
50L
Height of Feeding :
1400mm
Total Power:
13kw
Pressure:
0.6MPa
Total Weight:
2000kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

high Quality Control anti fungal vaginal Suppository Filling Sealing Cutting Packing machine Line

Manufacturing Shell, Perfusing, Cooling Forming and sealed are finished automatically. This machine is equipped with a higher degree of automation . It is controlled by PLC and operated by man-machine interface.

This machine includes four parts:

Suppository belt machine
Suppository perfusing machine
Suppository condensing tunnel
Suppository sealing machine.

The suppository process:

Packaging materials (PVC, PVC / PE) → preheat → weld→ Knurl→ formed by blowing→ do line in mouth→ cut bottom line →perfusion →fixed formed by cooling → preheat→ seal →print production Lot # on above →align the edge →count and cut

Automatic Middle Speed Suppository Forming Filling Sealing Machine for Zs-U working video as following:

https://www.youtube.com/watch?v=9PIzdd9T2fw&feature=youtu.be
https://www.youtube.com/watch?v=oP3tDKoQAas&feature=youtu.be

This is a machine that has been developed for the production of suppositories in PVC, PVC+PE. Its working is completely automatic, pneumatically based, controlled by a programmable logic.

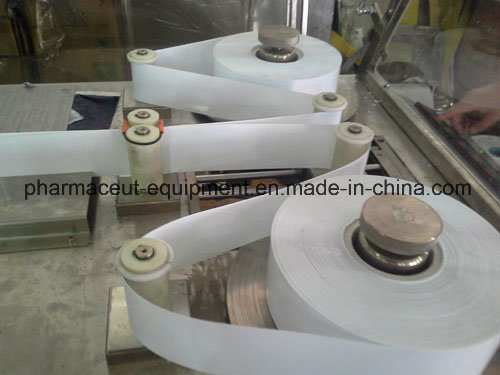

Principle of Operation Rolls of bits and pieces of plastic materials(PVC, PVC/PE)is formed with plastic-blowing methods above atmosphere pressure in suppository shell manufacturing machine, automatically enters embedment process.
Afeter the mixed medicinal liquid automatically embed into the empty shell through high precision measure pump it is cut into bars of equal length fragment. Through setting in low temperature for a certain time, liquid-solid transmation, it is charged into solid grain. Through process of plastic, seal, printing lot number and cutting, the finished product of suppository is made.

High Quality Control Anti Fungal Vaginal Suppository Filling Sealing Cutting Packing Machine

Technological Character:

1. Plugged embedment, accurate position, no drops of medicine, not covered on the bottle and high precision measure.
2. Wide applicability, gelatin medium and traditional Chinese medicine with extremely difficult can be imbedded.
3. PLC programmable control and industrial men-computer operation, high degree automation, easy adjustment, high precision temperature control, reliable work and smooth operation.
4. Large capacity of liquid reserve, constant temperature, automatic control of mixing and surface of liquid.
5. Low pesition of medicinal packing, low labor intensity. Heat preservation equipment of circulation liquid supply and pipe, guaranteeing the medicinal liquid not become solid not become sold when the machine stops.
6. Small area, easy operation.

Bullet Shape mould drawing is according to water proportion
Duck mouth mould drawing is according to water proportinal
Torpero Shape drawing is according to water proportical

Technical Parameter:

Output	6000-10000suppositories/h
Center Distance of Bullet	17.5mm
Center Distance of Duck Bill	26.25mm
Filling Volume	<5ml/PC
Allowable Error of granular weightt	± 2%
Volume of storing fluid vessel	50L
Height of feeding	1400mm
Total Power	13KW
Pressure	0.6Mpa
Air Consumption	1.5M3/Min
Water Consumption	1000kg/h
Total Weight	2000kg
Overall Dimension	350030002500mm 3490× 2900× 2000mm
Shape of Suppository	Bullet form, torpedo form, duck-mouth form and other special form
Adaptable cementin	FA-glyceride FA-gelatin polyglycol
