Our company digested and absorbed abroad advanced technology and bond internal suppository producing practice to manufacture and develop this produce that is machine-electricity and gas united new produce.

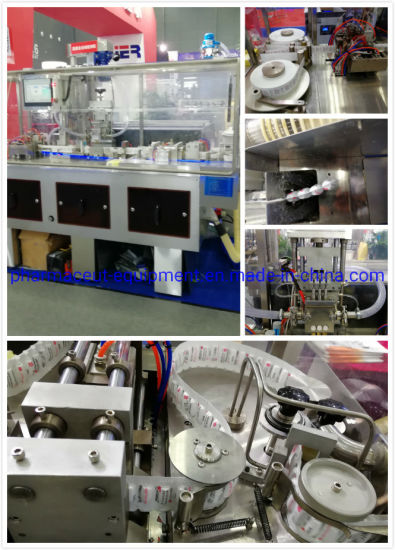

The machine is made up of four parts:
1, Suppository belt system; 2, Suppository perfusion machine; 3, Suppository freezer; 4, Suppository sealing machine. ZS-3automatic potting suppository unit can automatically complete make the shell perfusion, cooling forming, sealing all the processes. The unit by the PLC control, industrial human-machine interface operation, high degree of automation. Because of its functions, the output is high, take small area. Special apply for the restrictions area and be used for the hospital is not high yield preparation room and small pharmaceutical companies. I. Technical parameter 1, Production: 6000- 8000granulations per hour 2, Dosage per granulation: 0.5-3.7g per granulation 3, Dosage difference allowed: ± 3% 4, Suppository form: Bullet form, torpedo form 5, Center distance: 17.4mm 6, The number pill of mould: 3 pills. 7, The spec of tablet: Hight: 56, 58mm thickness: 1.14± 0.01mm 8, Volume of storing fluid vessel: 50L 9, Height of wadding: 2000mm 10, Electric pressure of power: Three- phases AC 380V 11, Total power: 9KW 12, Air pressure: 0.55-0.65MPa 13, Consuming gas tolerance: 1.0m3/min 14, Volume of consuming water: 1000L /h 15, Overall dimensions: 2700× 1720× 2300mm 16, Weight of overall machine: 1200kg
II. Working principle

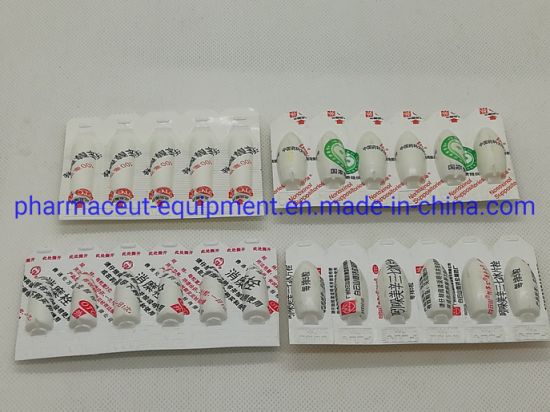

The rolled plastic sheet material (PVC or PVC/PE) is pressed positively to blow and make a statue to take shape, and enter into filling procedure automatically, stirred equally drug fluid is filled to nul nutshell automatically through high precise dosing pump, and is sheared into muti-strip iso-segment. Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversion from fluid to solid. At last, it will be produced to end product suppository by mending form, sealing, beating batch number and shearing working procedure.
III. Technical parameter

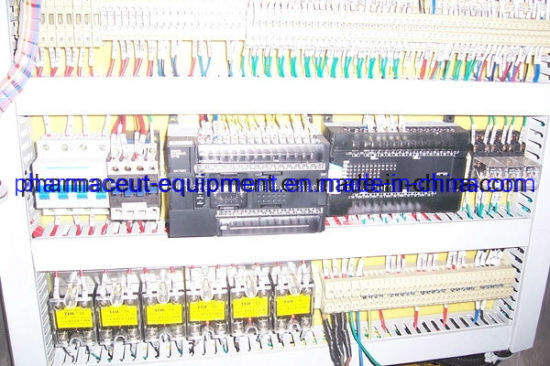

1, Using PLC written formula control and industry grade person-machine inerface operation, Possessing characteristics of convenience in adjustment, high degree automatization. 2, Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware. And it can be suited to rolls of all kinds of materials, such as (ALU/PE)or(PP/ALU/PE)or (PVC, PVC/PE, PVE/PVDC/PE) 3, Adopting warm protection apparatus to guarantee the liquid not to become solid when the machine has stalled. 4, Adopting motor drive with cam gear and cominated air drive, dilieved 3 shell pills every time. 5, Using inset filling, accurate in position, non-dribbling drug, non-hanging wall, high precise In counting. 6, Having big volume storing fluid vessel, laying homeothermia, stirring and fluid surface autocontrol assembly. 7, Continusous cooling technology for sterotypes, adopting out of the movement trajectory curve one end in and one end out... 8, The seal part adopted three-stage preheating. 9, Continuous system with continuous seal, the cut pill number can be set up freely
