Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
10 Sets/Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
ZPT15
Customized:
Customized
Condition:
New
Warranty:
1 Year
Model:
Zpt15/17/20/25
Capacity:
70,000 PCS/H
Material:
SUS304 with Product
Feeder Model:
Forced Feeder
Pressure:
Pre Pressure
Mould:
D Model
Max Tablet Diameter:
25mm
Max Depth:
20mm
Max Main Pressure:
100kn
Max Pre Pressure:
12mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with CGMP standards
Origin:
Made in China
HS Code:
8438800000
Package size per unit product:
660cm * 690cm * 1620cm
Gross weight per unit product:
675kg
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

ZPT15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

Choose our ZPT15/17/20/25 tablet press Reason?

1.The contact with product adopt SS304/SS316 stainless steel.
2.The hole of the punch¨ is with special anti-leakage and anti-dust device.
3.Convience for disassemble structure, make sure the maintenance.
4.Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design.
5.The force feeder system solves the shortage situation of normal tablet pressing machine.
6.Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the enforced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
7. With CE certificate and Meet with GMP certificate
8.Quality guarantee for 1 year
9. with 1 year spare part for free
10. with 1 set of mould is free
11. mould Die type for D/B/BB/BBS As optional
12. it has 15 pcs mould/ 17 pcs mould/20pcs mould/25pcs mould tablet press same price as optional
13. working video please https://youtu.be/M-oPHrywYrk

Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

with spare part and document
Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

Forced feeder system

Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

.
The powder recovery system solves the cross contamination.

Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

Machine main drawing as following:

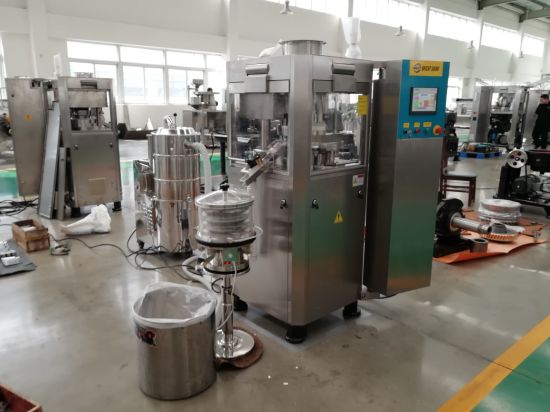

Our factory manufacture
Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

Tablet Sample:

Zpt15 Pharmaceutical Manufacturing Rotary Tablet Making Machine of Pill Press

Technical Parameter:

Model	ZPT15	ZPT17	ZPT20	ZPT25
Die type	D	B	BB	BBS
Number of dies	15	17	20	25
Max. diameter of tablet (mm)	25	16	13	11
Max abnormal Prolate axis size (mm)	25	18	16	_
Maxoutput (tablets/h)	70000	80000	95000	118000
Maximum filling depth (mm)	20	16	16	16
Maximum main pressure (KN)	100	80	80	80
Maximum pre-pressure (KN)	12	12	12	12
Idle load noise dB(A)	< 75
Power of main motor (KW)	380V 50HZ 5.5KW
Size of machine (mm)	660× 690× 1620
Net weight of machine (kg)	675
