Zp5/7/9A Labortary Round Tablet Tablet Press Machine/Salt Tablet Press Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
ZP5/7/9A
Warranty:
1 Year
Name:
Labortary Round Tablet Tablet Press Machine
Keywords:
Salt Tablet Press Machine
Product:
Salt Tablet/Candy Tablet/Milk Tablet/Chlorine
Capacity:
9000-16200PCS/Hour
Turret Speed (R/Min):
32
Dies(Set):
5/7/9 Sets
Suitable Range:
Lab/R&D/Small Batch Testing
Max. Diameter of Tablet( mm):
12mm
Net Weight (Kg):
260kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet with GMP standards
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Precision
Certification:
CE, GMP, ISO
Voltage:
220V
Computerized:
Computerized

Product Description

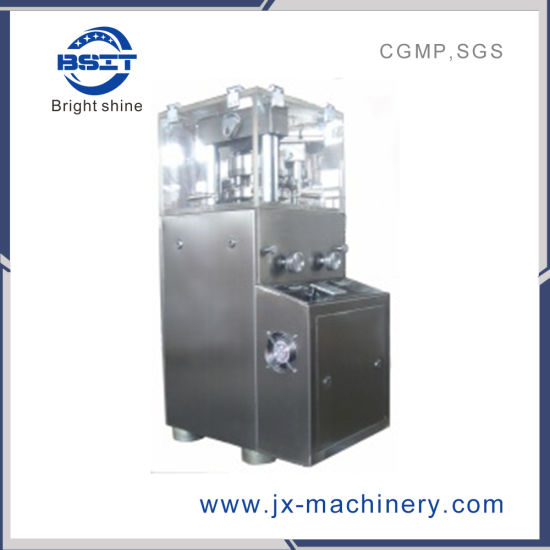

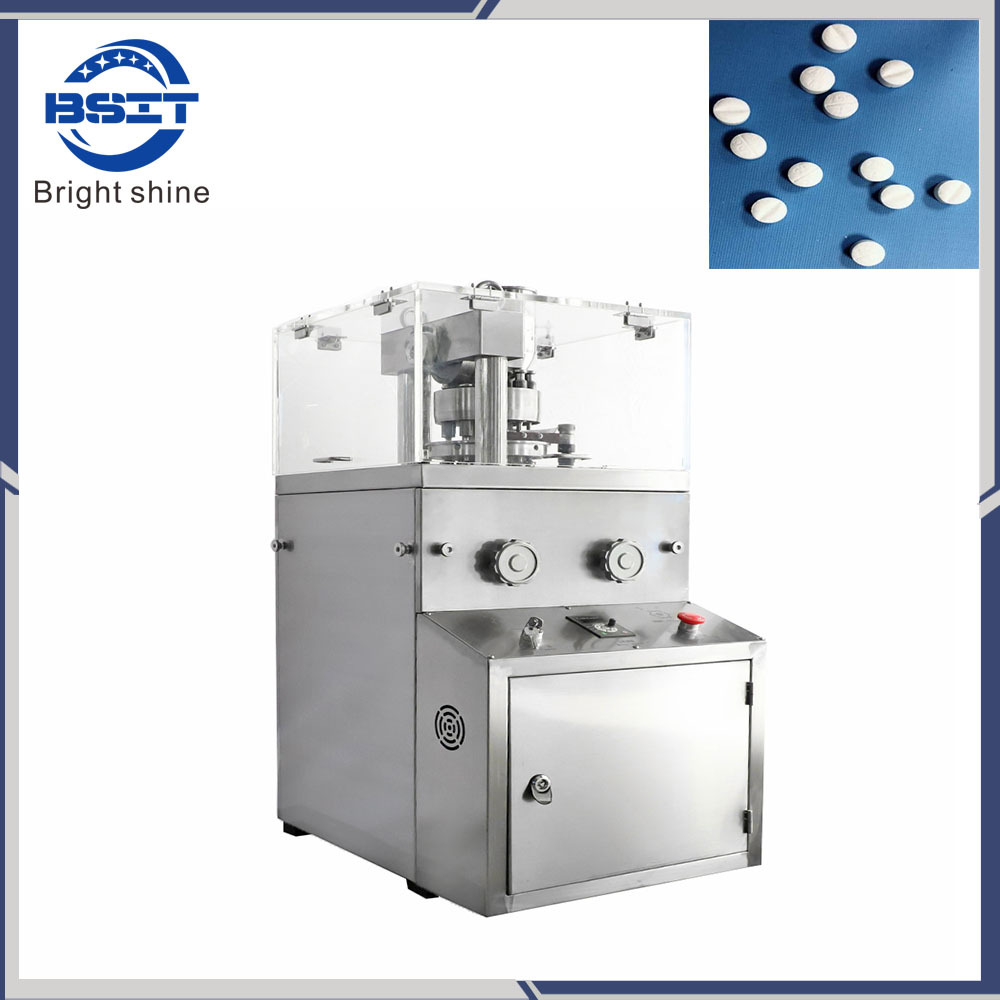

ZP5/7/9A Labortary Round Tablet Tablet Press machine/salt tablet press machine

Main introduce:

1.This machine is single pressing and capable of automatic revolution and continuous pressing to press raw material in particle from into tablets.
2.It mainly applies to the tablet production in pharmaceutical industry and also is applicable to chemical, food, electronic and etc.

ZP5/7/9A lab rotary tablet press machine ( small power 1.5kw)

Zp5/7/9A Labortary Round Tablet Tablet Press Machine/Salt Tablet Press Machine

ZP5/7/9B lab rotary tablet press machine ( small power 2.2Kw)
Zp5/7/9A Labortary Round Tablet Tablet Press Machine/Salt Tablet Press Machine

Feature:

1) It is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 7Arotary tablet press machine is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 7A punching automatic rotary tablet press machine meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.

Zp5/7/9A Labortary Round Tablet Tablet Press Machine/Salt Tablet Press Machine

Technical Parameter:

Name	ZP5	ZP7	ZP9
Dies(sets)	5	7	9
Max. pressure( kn)	40
Max. diameter of tablet( mm)	12(Special 14)
Max. filling Depth (mm)	15
Max. thickness of tablet ( mm)	6
Max production capacity (pc/h)	9000	12, 600	16, 200
Turret speed (r/min)	32
Motor Power (KW)	1.5
Outline dimension (LXWXH)	480× 630× 1100
Net weight (kg)	260kg
