ZPT china pharmaceutical manufacture Pharma Tablet Press Machines
Main introduce:
It can be used in pharmaceutical industries, chemical, food and electronic industry
ZPT15/ZPT17/ZPT20/ZPT25 tablet press machine as optional
The machine can be pressed into a variety of granular raw materials round tablets, shaped tablets, cartoons, double-sided positioning lettering films.
This machine new design with pre-pressure function
This machine with the force feeder system
Guarantee 1 year
Full compliance with GMP requirements.
Supply free FAT testing
Supply SAT testing according to customer request.
this machine working video https://youtu.be/M-oPHrywYrk

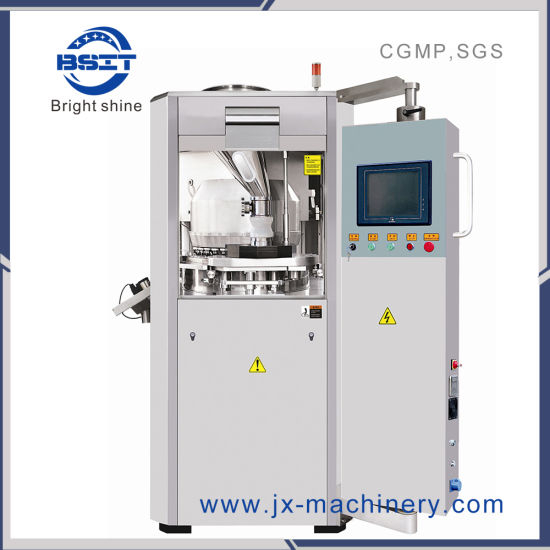

machine photo:
The contact with product adopt SS316 stainless steel.
The hole of the punch&die is with special anti-leakage and anti-dust device. Convience for disassemble structure, make sure the maintenance. Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design.
The force feeder system solves the shortage situation of normal tablet pressing machine.
Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the forced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
Machine main as following:
Technical Parameter:
| Model | ZPT15 | ZPT17 | ZPT20 | ZPT25 |
| Die type | D | B | BB | BBS |
| Number of dies | 15 | 17 | 20 | 25 |
| Max. diameter of tablet (mm) | 25 | 16 | 13 | 11 |
| Max abnormal Prolate axis size (mm) | 25 | 18 | 16 | _ |
| Maxoutput (tablets/h) | 70000 | 80000 | 95000 | 118000 |
| Maximum filling depth (mm) | 20 | 16 | 16 | 16 |
| Maximum main pressure (KN) | 100 | 80 | 80 | 80 |
| Maximum pre-pressure (KN) | 12 | 12 | 12 | 12 |
| Idle load noise dB(A) | < 75 | |||
| Power of main motor (KW) | 380V 50HZ 5.5KW | |||
| Size of machine (mm) | 660× 690× 1620 | |||
| Net weight of machine (kg) | 675 | |||
