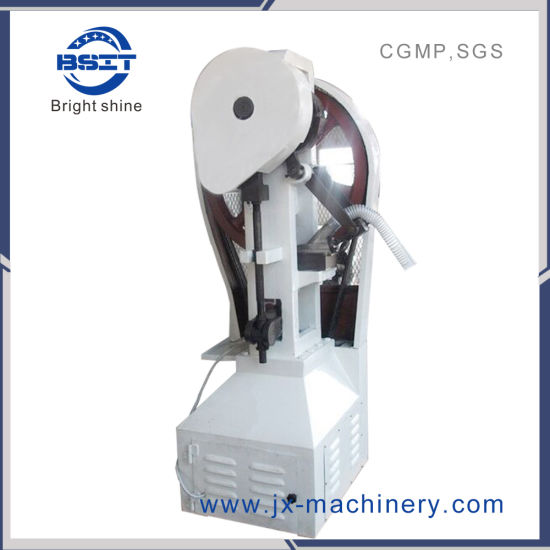

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • THP
  • Non-Customized
  • New
  • 1 Year
  • 85 mm
  • 30 T
  • 25 PCS/Min
  • 5kw
  • 2240*1100*1040
  • Salt, Chemical Fertilizer, Disinfectant
  • Stainless Steel
  • Thp-30
  • Big Tablet
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP standard
  • Made in China
  • 8438800000
  • Preparation Machinery
  • Tablet
  • Precision
  • GMP, ISO
  • 220V
  • Non-Computerized
THP6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder forming making machine/tablet press

We make and supply various kinds of tablet press machines, such as animal licking salt block press machine(1kg 2kg 5kg 10kg even 25kg), chlorine tablet press, 500T/1000T large hydraulic tablet press and so on, which have the characteristics of high stability, high efficiency, low cost, save work, and one-person -multi-equipment.

Main application:

This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.

Suitable product:

Candy, coffee block, chocolate, seasoning block, chicken tablets, tea-leaves, preserved fruit, cheese and other material's molding . it can press any powder/granules into tablet or blocks.
All kinds of powder forming in Sanitizer, water purification salt block, bath salt tablet and other corrosive materials. toilet articles, industrial salt tablet, chemical powder, ceramic, chicken essence powder.


Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press
Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press
Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press
Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press
Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

Sample:

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press


Main Technical specification:


Model THP-6 THP-10 THP-15 THP-20
Working Pressure (kN) 6T 10T 15T 20T
Max. dia. of tablet (mm) 35mm 50mm 55mm 65mm
Upper punch max travel(mm) 80mm 100mm 100mm 100mm
Loading height(mm) 40mm 50mm 50mm 50mm
Lower mold diameter(mm) 20mm 60mm 35mm 50mm
Production times(times/min) 25 25 25 25
Product error ±0.05 ±0.05 ±0.05 ±0.05
Motor power 1.5 3KW 3 3
Size 700*800*1600 800*900*2100 800*900*2100 900*800*2300
Weight 0.3T 1.2T 1.3T 1.5T
Model THP-25 THP-30 THP-45 THP-60
Working Pressure (kN) 25T 30T 45T 60T
Max. dia. of tablet (mm) 80 85mm 90mm 100
Upper punch max travel(mm) 120 130 140 110mm
Loading height(mm) 90 100 120 60mm
Lower mold diameter(mm) 130 140 100 100mm
Production times(times/min) 25 25 25 20
Product error ±0.05 ±0.05 ±0.05 ±0.05
Motor power 4 4 5.5 5.5
Size 2180*1020*1080 2240*1100*1040 2330*1165*1080 900*1000*2600
Weight 1.6T 1.7T 2.1T 2.4T



Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press

Thp6/10/15/20/30/45/60/100 Powder Salt Flower Basket Tablet Press/Powder Forming Making Machine/Tablet Press
