Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment

  • Shanghai, China

  • 50 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • THP-30

  • Non-Customized

  • New

  • 1 Year

  • Salt, Chemical Fertilizer, Disinfectant

  • 85 mm

  • 30 T

  • 25 PCS/Min

  • 5kw

  • 2240*1100*1040

  • Stainless Steel

  • Thp-30

  • Big Tablet

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP standard

  • Made in China

  • 8438800000

  • Preparation Machinery

  • Tablet

  • Precision

  • GMP, ISO

  • 220V

  • Non-Computerized

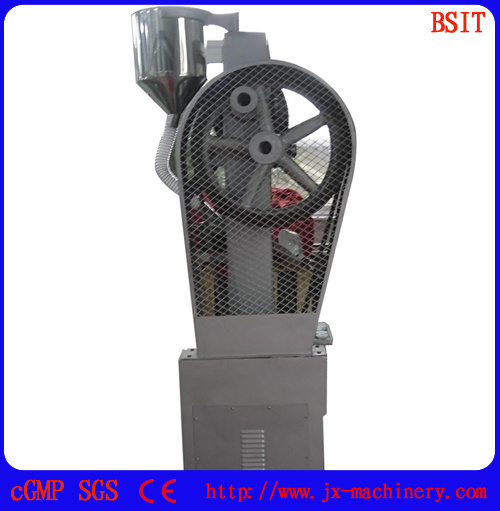

THP30 Flower Basket Pharmaceutical Tablet Press Equipment

Main application:

This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.

Suitable product:

Candy, coffee block, chocolate, seasoning block, chicken tablets, tea-leaves, preserved fruit, cheese and other material's molding . it can press any powder/granules into tablet or blocks.
All kinds of powder forming in Sanitizer, water purification salt block, bath salt tablet and other corrosive materials. toilet articles, industrial salt tablet, chemical powder, ceramic, chicken essence powder.

Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment

Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment

tablet sample:

Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment



THP-30 type Tablet press applies for pressing variety of corrosively materials such as bath salt, chemical fertilizer, disinfectant etc. The machine surface all adopts stainless steel, which has high corrosion resistance. The machine improves the safety production capability also save time and labor. The machine has high accuracy, stable performance and wide usage, which is the best choice for customer.

Main Technical specification:

Technique Parameter:
Model THP-6 THP-10 THP-15 THP-20
Working Pressure (kN) 6T 10T 15T 20T
Max. dia. of tablet (mm) 35mm 50mm 55mm 65mm
Upper punch max travel(mm) 80mm 100mm 100mm 100mm
Loading height(mm) 40mm 50mm 50mm 50mm
Lower mold diameter(mm) 20mm 60mm 35mm 50mm
Production times(times/min) 25 25 25 25
Product error ±0.05 ±0.05 ±0.05 ±0.05
Motor power 1.5 3KW 3 3
Size 700*800*1600 800*900*2100 800*900*2100 900*800*2300
Weight 0.3T 1.2T 1.3T 1.5T
Model THP-25 THP-30 THP-45 THP-60
Working Pressure (kN) 25T 30T 45T 60T
Max. dia. of tablet (mm) 80 85mm 90mm 100
Upper punch max travel(mm) 120 130 140 110mm
Loading height(mm) 90 100 120 60mm
Lower mold diameter(mm) 130 140 100 100mm
Production times(times/min) 25 25 25 20
Product error ±0.05 ±0.05 ±0.05 ±0.05
Motor power 4 4 5.5 5.5
Size 2180*1020*1080 2240*1100*1040 2330*1165*1080 900*1000*2600
Weight 1.6T 1.7T 2.1T 2.4T




Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
Thp-30 Flower Basket Pharmaceutical Tablet Press Equipment
