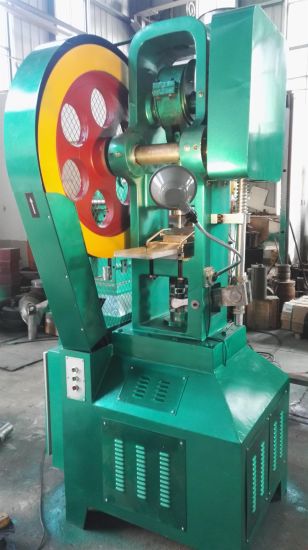

Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal
  • THP-10
  • Non-Customized
  • New
  • 1 Year
  • Flower Basket Tablet Press Machine
  • Powder Forming Machine
  • 2,760PCS/H
  • Pharmaceutical, Food, Chemical,
  • Powder and Granule Into Tablet
  • 50mm
  • 100kn
  • 45mm
  • 666*860*1824mm
  • 770kg
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP standard
  • Made in China
  • 8438800000
  • Preparation Machinery
  • Tablet
  • Precision
  • CE, GMP, ISO
  • 220V
  • Non-Computerized
Flower Basket pharmaceutical machinery Tablet Press for calcium tablet
Usage & brief introduction:

1.This machine is a medium continuous automatic tablet press which is one of the essential equipment for
pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food,
electronics components, various tablets of pesticide and fertilizer etc.
2. In small-batch production, laboratoryand hospital. The machine can press special-shaped circular tablets of different kinds, and can also process
the tablets of pesticide both sides are impressed trademarks, letters and simple patterns.

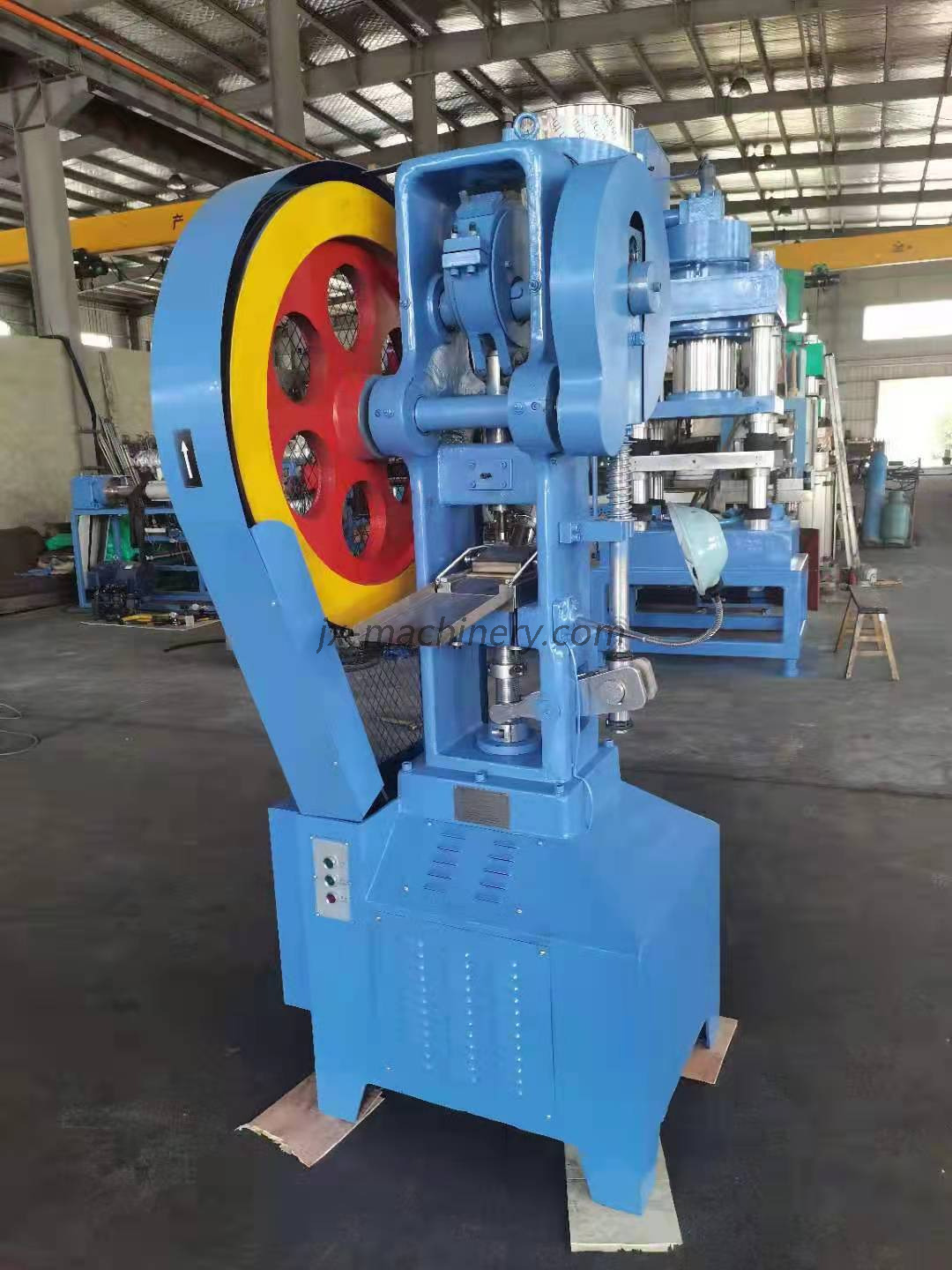

Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet) Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Sample:

Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)


Technique parameter:
Model
THP

THP-10

THP-20

Max. Pressure(Kn)

40KN

100KN

100KN

Max Dia of Tablet(mm)

30mm

40mm

50mm

Max. Depth of Tablet(mm)

25mm

45 mm

45 mm

Max. O.D of ring like tablet (mm)

22 mm

35 mm

35 mm

Hole Dia of Ring like Tablet(mm)

5.10mm

6-14mm

6-14mm

Filling Depth of Ring like tablet(mm)

25mm

45mm

45mm

Production Capacity(pcs/min)

2070PCC/H

2100PC/H

2760PC/H

Motor( Kw)

1.1kw

3.7kw

5.5kw

Overall size( LxWxH)mm

685*565*1610mm

666*860*1824mm

666*860*1824mm

Net Weight(KG)

520kg

620kg

770kg

Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)

Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
Thp-10 Model Flower Basket Tablet Press Machine (salt tablet and Calcium Tablet)
