Thp-10 Factory Wholesale Price Tablet Press Machine for Detergent (diameter 25mm)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union
Model NO.:
THP-10
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Name:
Tablet Press Machine for Detergent
Keywords:
Tablet Press Machine
Capacity:
About 3000PCS/Hour
Max Tablet Diameter:
80mm
Max Pressure:
100kn
Max Depth of Filling:
45mm
of Ring-Like Tablet Maximum Outer Diamet:
35mm
of Ring-Like Tablet Depth of Filling:
25mm
Motor Power:
5.5kw
Net Weight:
800kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet industry standard
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Precision
Certification:
CE, GMP
Voltage:
380V
Computerized:
Non-Computerized

Product Description

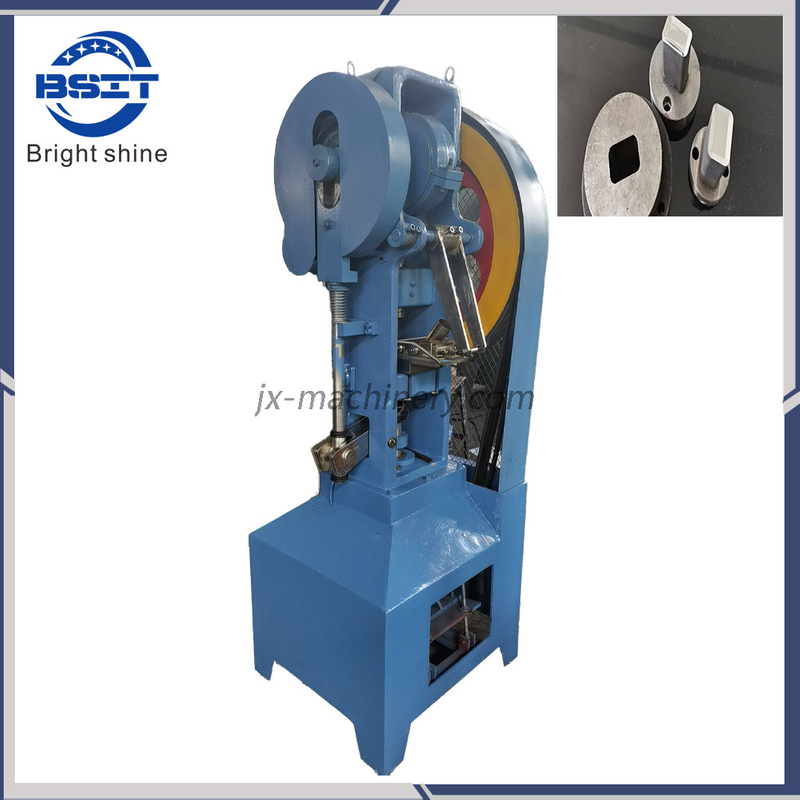

THP-10 factory wholesale price tablet press machine for Detergent (diameter 25mm)

Introduce:

1. This machine is a medium flower basket type tablet press machine, This machine is used for pressing different kinds of granular raw materials into round tablets.
2.It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape.
2. it applicable to the pharmaceutical, chemical, food, electronics, fuel and other industrial sectors. it Is to deal with all kinds of granular raw materials into tablets agent basic equipment.
3. It features a small desktop type press for motive and continual sheeting.
4. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
5. Tip: Tablet Press, Single Tablet Press, Tablet Press Machine, Flower basket type tabelt press, Big diameter tabelt press, Calcium tablet press, Food machine

technical parameters:

Model	THP-6	THP-10	THP-15	THP-20
Working Pressure (kN)	6T	10T	15T	20T
Max. dia. of tablet (mm)	35mm	50mm	55mm	65mm
Upper punch max travel(mm)	80mm	100mm	100mm	100mm
Loading height(mm)	40mm	50mm	50mm	50mm
Lower mold diameter(mm)	20mm	60mm	35mm	50mm
Production times(times/min)	25	25	25	25
Product error	±0.05	±0.05	±0.05	±0.05
Motor power	1.5	3KW	3	3
Size	7008001600	8009002100	8009002100	9008002300
Weight	0.3T	1.2T	1.3T	1.5T

Model	THP-25	THP-30	THP-45	THP-60
Working Pressure (kN)	25T	30T	45T	60T
Max. dia. of tablet (mm)	80	85mm	90mm	100
Upper punch max travel(mm)	120	130	140	110mm
Loading height(mm)	90	100	120	60mm
Lower mold diameter(mm)	130	140	100	100mm
Production times(times/min)	25	25	25	20
Product error	±0.05	±0.05	±0.05	±0.05
Motor power	4	4	5.5	5.5
Size	218010201080	224011001040	233011651080	90010002600
Weight	1.6T	1.7T	2.1T	2.4T
