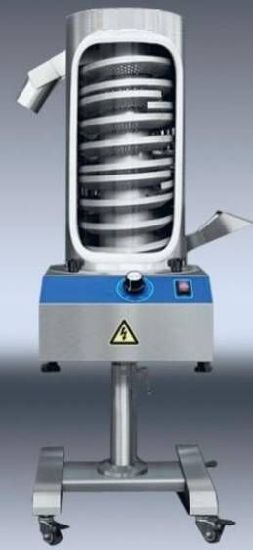

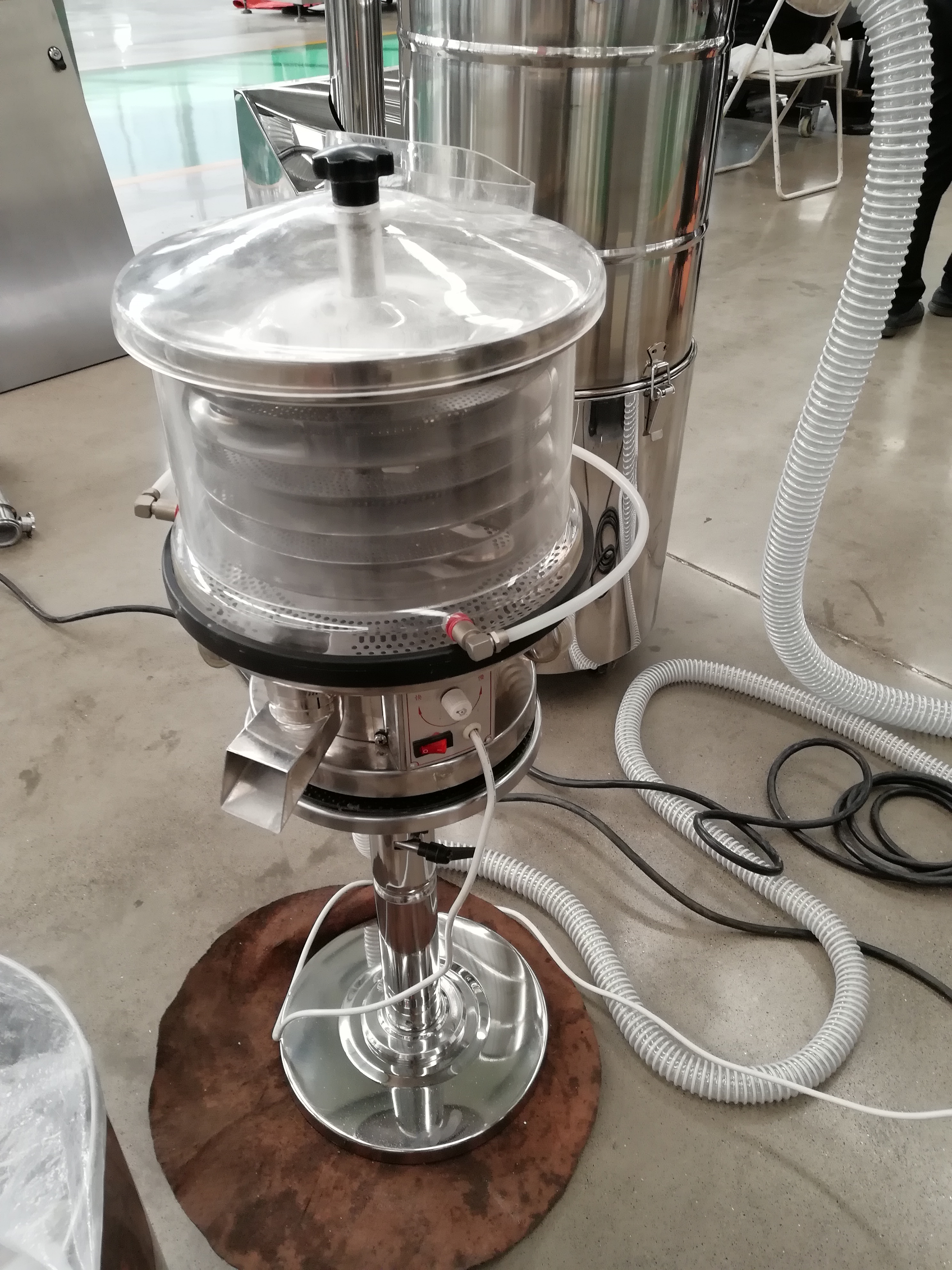

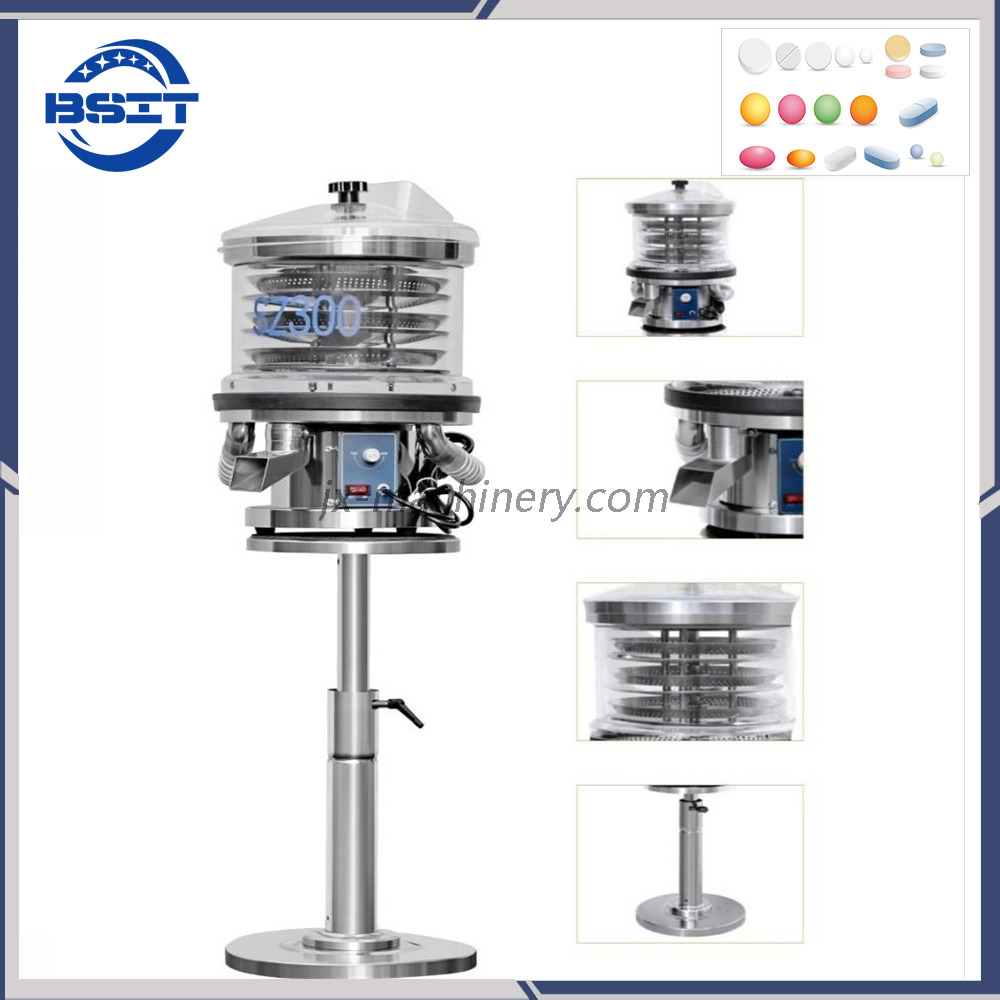

1. Tablets enter the inlet A. With the function of vibration the tablets move along the concave channel of filter disc B.
2. When tablets move down to the lower filter disc the tablets can turn upside down automatically.
3. During the process the tablets are polished. When the tablets move to the lowest disc the compressed air will blow away the dust which are sucked away by dust pipe D.
4. Finished clean tablets will be ejected from outlet E
|Max Output Capacity (t/h)||550000(Ø 5)|
|Dedusting Distance (m)||3.0|
|Maximum Tablet Diameter (mm)||Ø 5-Ø 25|
|Power Supply||1PH 220V/110V 50Hz/60Hz 0.1kw|
|Compressed Air||0.1 m3 /min 0.05MPa|
|Vacuum||2.7 m3 /min -0.014MPa|
|Dimension (mm)||(Ø 315-Ø 350) x (770-950)|
|Weight (kg)||38 |
