Rotary Tablet Press (ZP19) for Milk Tablet/Salt Tablet/Candy Tablet



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T
Model NO.:
ZP19
Customized:
Customized
Condition:
New
Warranty:
1 Year
Name:
Milk Tablet/Salt Tablet/Candy Tablet Tablet Press
Keywords:
Tablet Press Machine
Capacity:
27,000-45,000PCS/H
Range:
Pharmaceutical/Food/Make up/Chemical
Punch Sets:
15/17/19 Sets
Machine Material:
Carbon Steel
Max. Pressure (Kn):
60kn
Max. Diamater of Tablet (mm):
13/20/26mm
Turret Speed (R/Min):
20-30
Motor (Kw):
2-3kw
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP standard
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Precision
Certification:
GMP
Voltage:
220V
Computerized:
Computerized

Product Description

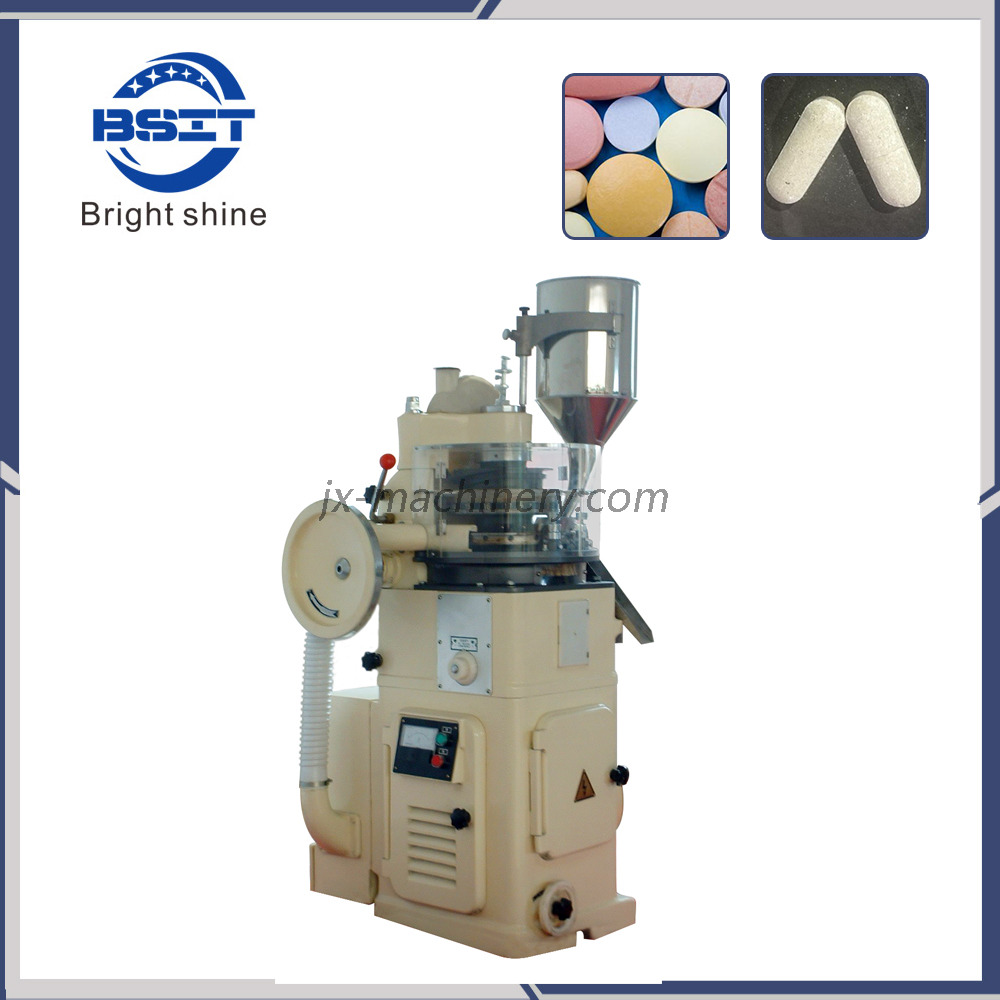

Rotary Tablet Press (ZP19) for Milk Tablet/salt tablet/candy tablet

Main application:

1.This machine is designed for pressing round tablets from various kinds of granular materials.
2. It is a primary machine to fit batch production of tablets. During operation, the speed of the Turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
3. The mechanical buffer unit will prevent punches and apparatus from overload damage.
4. A powder suction unit is attached to take in the residual powder can be eliminated and the Collected powder material can be reused. This machine has won the fine Quality Product Prize awarded by the China National Medical Management Bureau.
5. Guarantee 1 year
6..Supply free FAT testing
7. Supply SAT testing according to customer request.

tablet Sample:

Rotary Tablet Press (ZP19) for Milk Tablet/Salt Tablet/Candy Tablet

Technique parameter:

Type	ZP15	ZP17	ZP19
Dies (sets)	15	17	19
Max. Pressure (KN)	60	60	60
Max. Diamater of tablet (mm)	26	20	13
Max. Filling Depth (mm)	15	15	15
Thickness of largest tablet (mm)	6	6	6
Turret speed (r/min)	20-30	22-35	22-44
Production capacity (pc/h)	27000	36000	45000
Motor (kW)	3	2.2	2.2
Overall dimensions(mm)	76 0 × 750 × 1550
Net weight (kg)	570	560	560
