Rotary Tablet Press Machine with 15 Stations Mould (ZP15)

  • Shanghai, China
  • 50 Sets/Year
  • T/T, Western Union, Paypal, Money Gram
  • ZP15/17/19
  • Customized
  • New
  • 1 Year
  • Tablet Press
  • Rotary Tablet Press
  • 27,000PCS/H
  • 15/17/19 Sets
  • Carbon Steel
  • 60kn
  • 26mm
  • 15mm
  • 6mm
  • 20-30mm
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP standard
  • Made in China
  • 8438800000
  • Preparation Machinery
  • Tablet
  • Precision
  • GMP
  • 380V
  • Non-Computerized

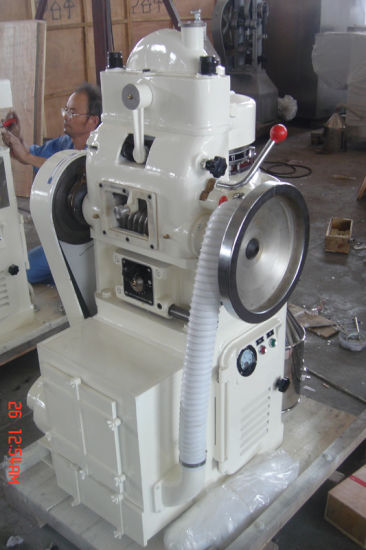

Rotary Tablet Press Machine with 15 Stations Mould (ZP15)

Main introduce:


This machine is designed for pressing round tablets from various kinds of granular materials.
It is a primary machine to fit batch production of tablets. During operation, the speed of the Turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder can be eliminated and the Collected powder material can be reused. This machine has won the fine Quality Product Prize awarded by the China National Medical Management Bureau.

Rotary Tablet Press Machine with 15 Stations Mould (ZP15)
Rotary Tablet Press Machine with 15 Stations Mould (ZP15)
Rotary Tablet Press Machine with 15 Stations Mould (ZP15)
Rotary Tablet Press Machine with 15 Stations Mould (ZP15)
Rotary Tablet Press Machine with 15 Stations Mould (ZP15)
Rotary Tablet Press Machine with 15 Stations Mould (ZP15)

Mould:


Rotary Tablet Press Machine with 15 Stations Mould (ZP15)

Tablet sample and drawing:

Rotary Tablet Press Machine with 15 Stations Mould (ZP15)


Rotary Tablet Press Machine with 15 Stations Mould (ZP15)


Technique parameter:
Type ZP15 ZP17 ZP19
Dies (sets) 15 17 19
Max. Pressure (KN) 60 60 60
Max. Diamater of tablet (mm) 26 20 13
Max. Filling Depth (mm) 15 15 15
Thickness of largest tablet (mm) 6 6 6
Turret speed (r/min) 20-30 22-35 22-44
Production capacity (pc/h) 27000 36000 45000
Motor (kW) 3 2.2 2.2
Overall dimensions(mm) 76 0 × 750 × 1550
Net weight (kg) 570 560 560
