Rotary Pharmaceutical Machine of Tablet Press Machine (ZPT-25)



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
10 Sets/Month
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
ZPT-25
Customized:
Customized
Condition:
New
Warranty:
1 Year
Finished Product:
Tablet
Zpt25 Capacity:
118,000 PCS/H
Name:
Zpt25 Tablet Press
Punch Model:
BBS
Station:
25
Max Tablet Diameter:
11mm
Max Depth:
16mm
Max Main Pressure:
80kn
Max Pre Pressure:
12kn
Size:
660X690X1620mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with CGMP standards
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

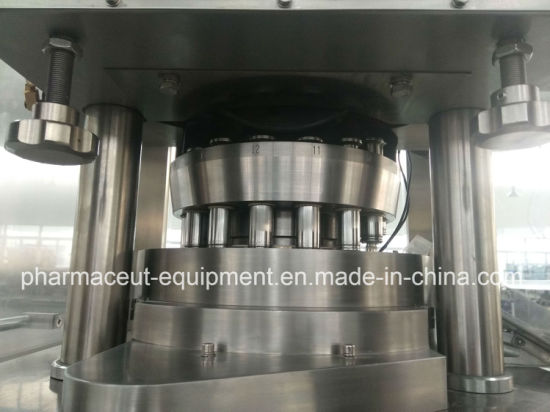

Rotary Pharmaceutical Machine of Tablet Press Machine (ZPT-25)

Main Feature:

1. The contact with product adopt stainless steel.
2.The hole of the punch¨ is with special anti-leakage and anti-dust device. Convience for disassemble structure, make sure the maintenance. Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design.

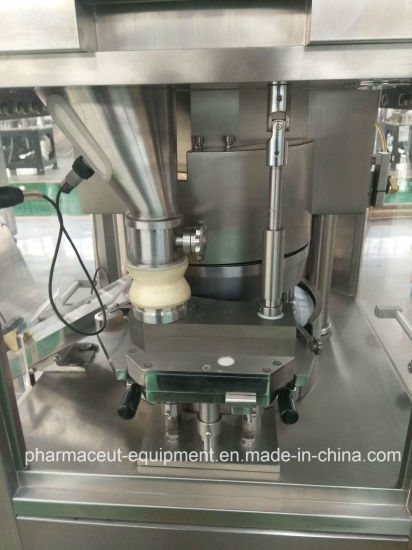

3. The force feeder system solves the shortage situation of normal tablet pressing machine.
Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the enforced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine

Rotary Pharmaceutical Machine of Tablet Press Machine (ZPT-25)

Tags: Tablet press , Tablet making machine, Pill making machine , Press machine, pressing machine, punching machine, Tablet machine
Rotary tablet press machine , Single punch tablet press , Mini tablet press ,l ab tablet press , pharmaceutical equipment
pharmaceutical machine , pharmaceutical machiner y, tablet presser , Tablet pressing machin e, Punch tablet press , Pill press machine
Powder tablet press , Tablet compression machine , Machine press , Candy tablet press , Automatic tablet press
Rotary Pharmaceutical Machine of Tablet Press Machine (ZPT-25)

Machine main drawing as following:

Rotary Pharmaceutical Machine of Tablet Press Machine (ZPT-25)

Technical Parameter:

Model	ZPT15	ZPT17	ZPT20	ZPT25
Die type	D	B	BB	BBS
Number of dies	15	17	20	25
Max. diameter of tablet (mm)	25	16	13	11
Max abnormal Prolate axis size (mm)	25	18	16	_
Maxoutput (tablets/h)	70000	80000	95000	118000
Maximum filling depth (mm)	20	16	16	16
Maximum main pressure (KN)	100	80	80	80
Maximum pre-pressure (KN)	12	12	12	12
Idle load noise dB(A)	< 75
Power of main motor (KW)	380V 50HZ 5.5KW
Size of machine (mm)	660× 690× 1620
Net weight of machine (kg)	675
