Pharmaceutical Solid Tablet and Capsule Crusher Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
BSIT
Cutter Material:
High-Speed Steel
Finished Surface:
Gear Process
Compressive Strength (For Crushing):
>300MPA
Tongs′ Features:
Universal Tongs
Name:
Crusher
Keyword:
Crusher Machine
30b Capacity:
50-300kg/H
Product:
Pharmaceutical , Chemical, Food,Healthcare
Materical:
SUS304
Main Shaft Speed(R/MIM):
3800r/Min
Ize of Input Granules:
<10mm
Size of Output Granules:
12-120 Mesh
Voltage:
380V,50Hz,3p
Power:
5.5kw
Trademark:
SIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8479820090
Type:
Impact Crusher
Object:
Pharmaceutical or Food or Chemical Raw Materical
Drive:
Electric
Crushing Degree:
Fine Grinding Machine
Crushing Style:
Grinding and Impact
Principle:
Fixed Culling

Product Description

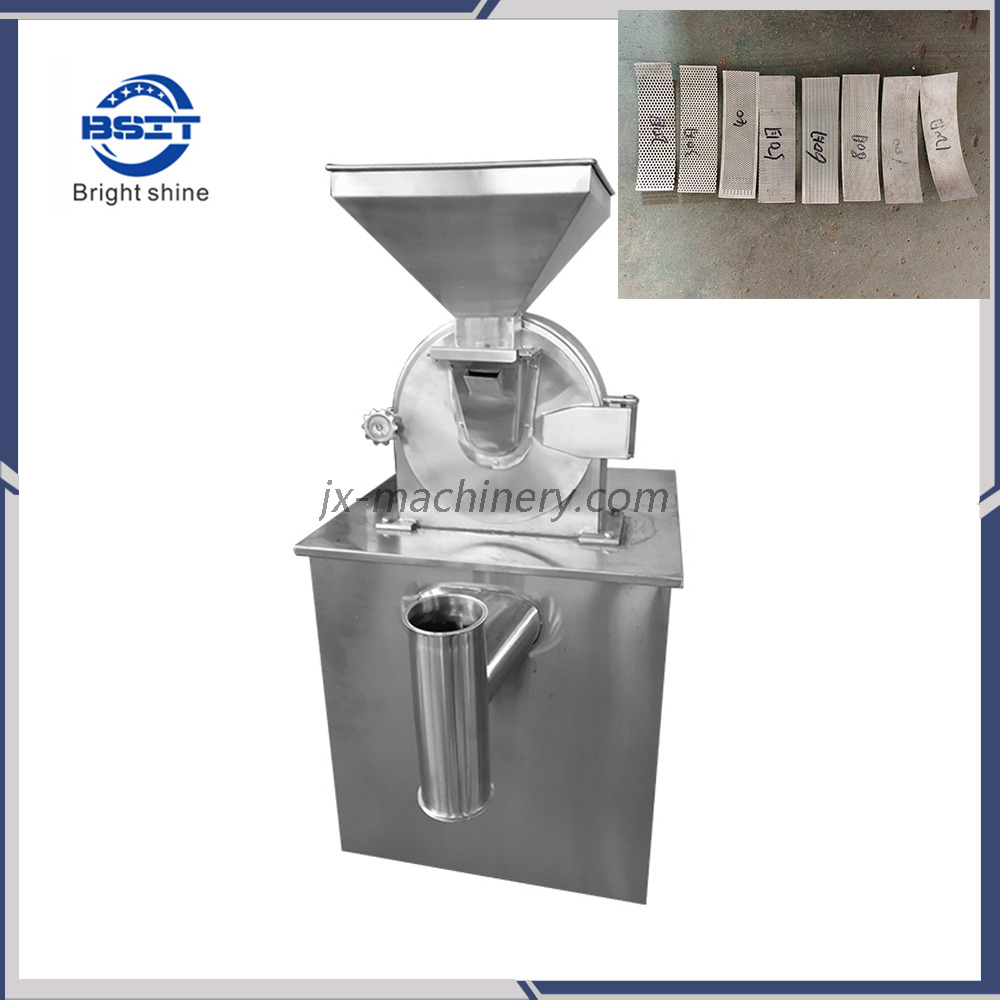

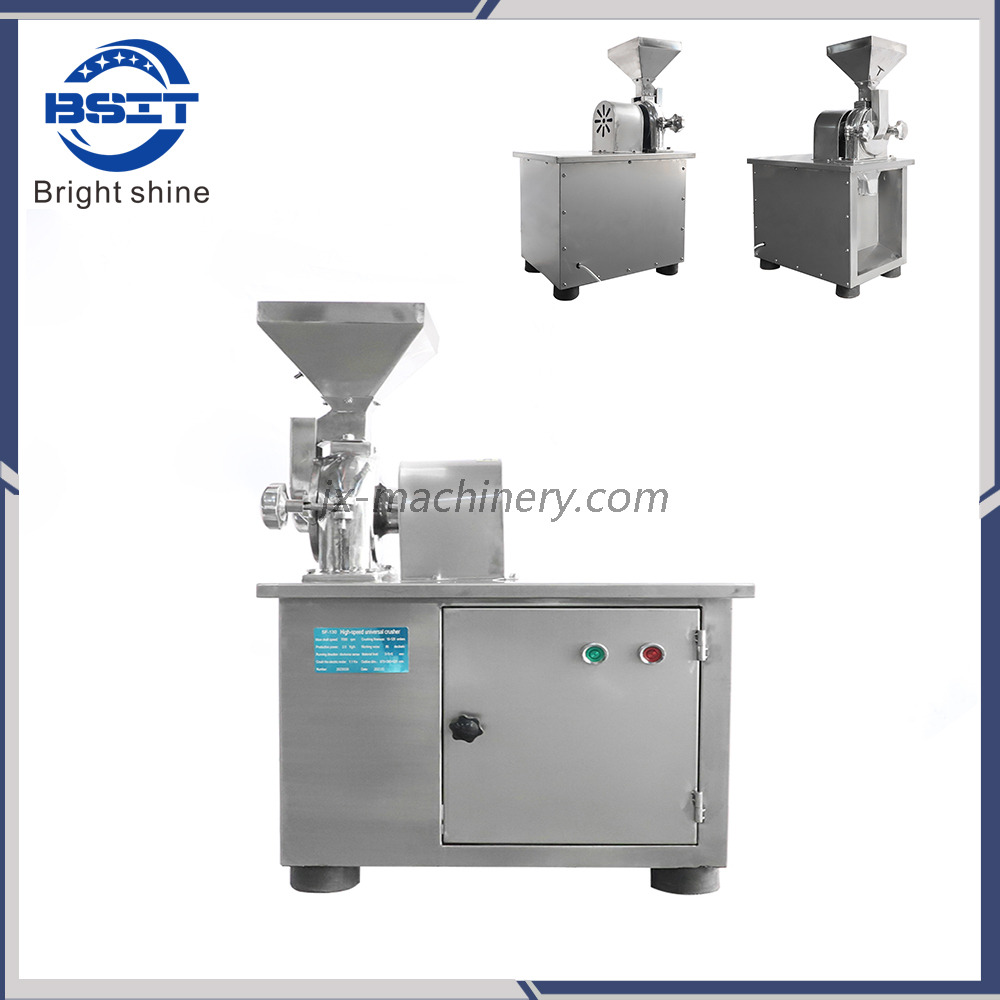

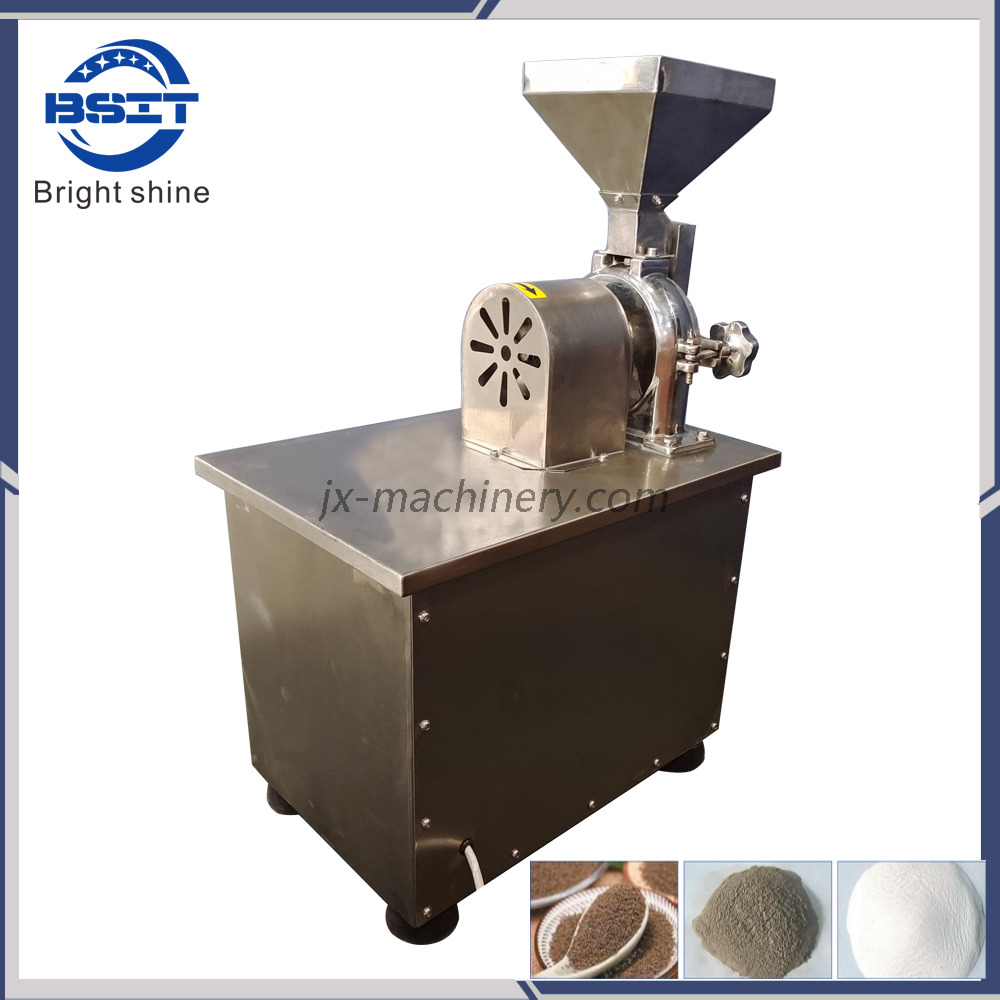

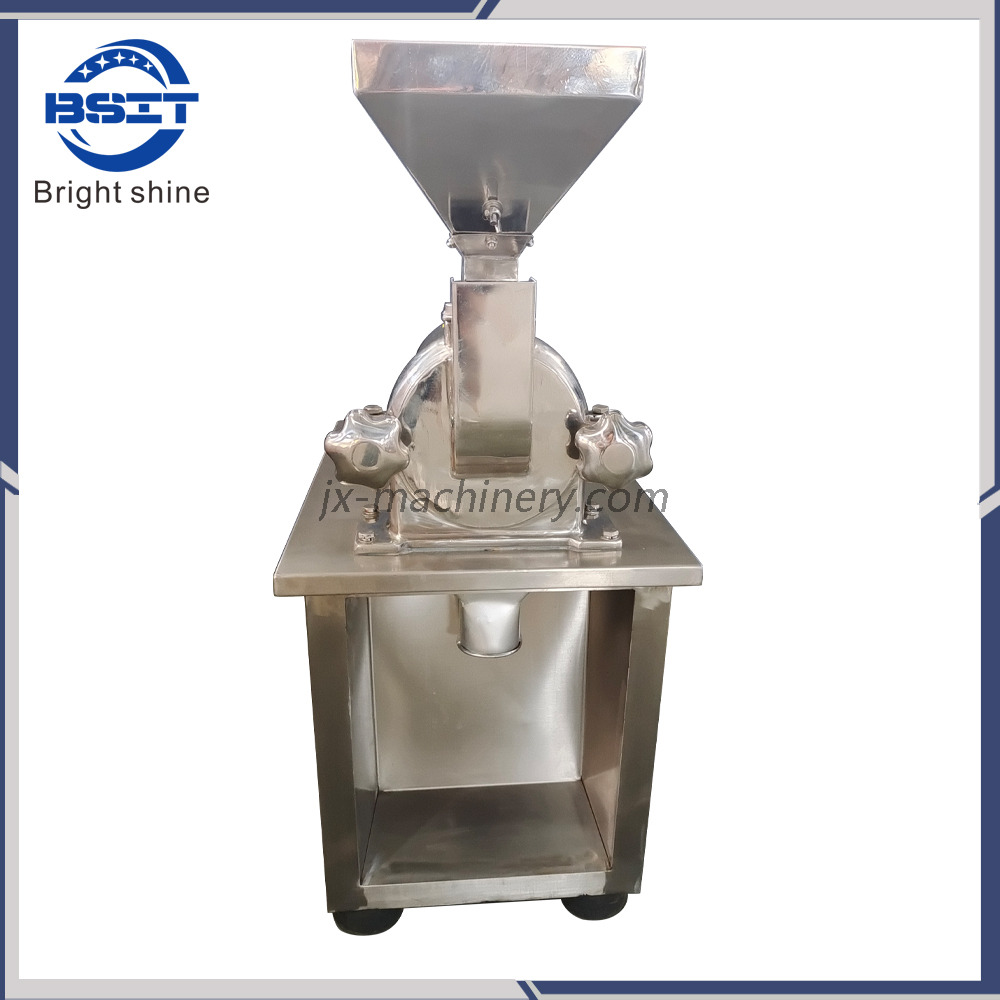

Pharmaceutical Machine Solid Tablet and Capsule Machine Crusher Machine

Grinding machine/pulverizer/crusher machine/mining machine/milling machine/crushing machine/mining equipment.

Features:

1) Contact material as SS304
2) Output 50-300 kg per hour
3)the face plate is glass and thickness is 10mm
4)two lock and top and below at door
5) Silicon sealing
6) Collect material with container
7) Output 50-300 kg.
8) Sieve, 120 mesh 2 pcs.
9) Gearing behind the machine should be full closed.
10)Discharge sleeve ( to connect bin for product with discharge hole)
11)Energy stop button

Technical parameters:

Mode	Main shaft speed	Crushing fineness	Crush capacity	Infeed max size	Motor	Size
SF130	7000r/min	10~120 mesh	2-5kg/h	5×5×5	1.1kw	520×360×820
SF180	4000r/min	10~120 mesh	10~20kg/h	8×8×8	2.2kw	420×600×1000
SF250	4000r/min	10~120 mesh	50~250kg/h	10×10×10	5.5kw	860×500×1360
SF320	4000r/min	10~120 mesh	80~300kg/h	10×10×10	7.5kw	880×520×1450
SF40	3400r/min	10~120 mesh	160~800kg/h	10×10×10	7.5kw	900×550×1450
