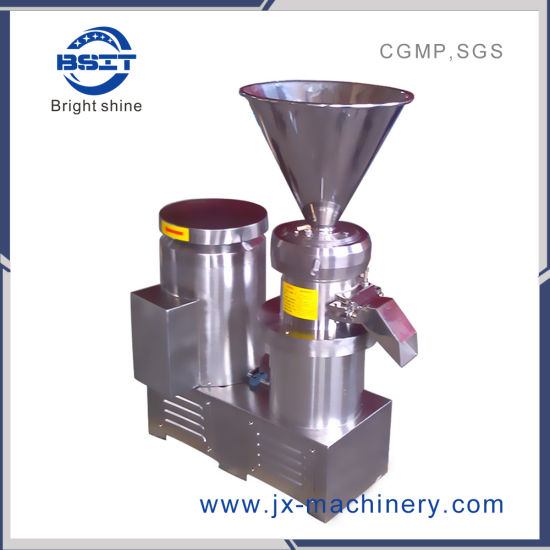

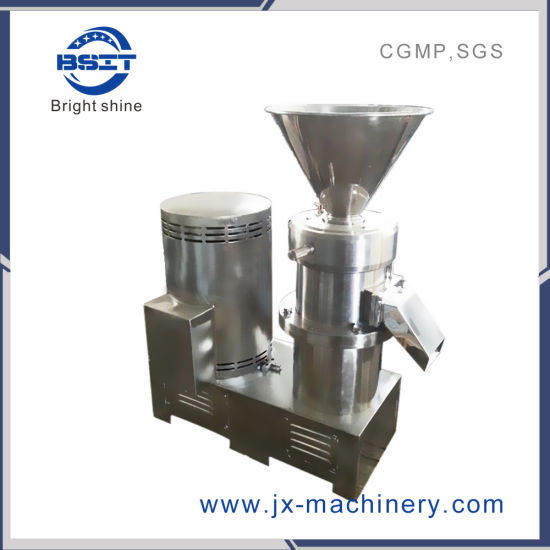

Jms Peanut Colloid Mill Grinding Machine (Meet Food Class)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
JMS-240
Automatic Grade:
Semiautomatic
Precision:
Precision
Certification:
ISO 9001
Condition:
New
Name:
Peanut Colloid Mill Grinding Machine
Product:
Jam, Beans, Peanuts, Cream
Suitable Range:
Food, Chemical,Plastic, Pharmaceutical Industry
Jms240 Capacity:
4-15 T/H
Materical:
Stainless Steel
Material Processing Size(µ M):
2-50um (Single Cycle or Multi-Cycle)
Power of Main Electrical Motor(Kw):
37kw
Rpm of Electrical Motor (R/Min. ):
1600-2950rpm
Size:
135X60 X128mm
Weight:
1300kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8479820090
Type:
Worktable Milling Machine
Object:
Peanut or Comstic
Structure:
Ram
Milling Cutter Type:
Vertical Milling Cutter
Milling Cutter Structure:
Indexable Type
Controlling Mode:
Program Control

Product Description

Jms Peanut Colloid Mill Grinding Machine (Meet Food Class)

Scope of Application:

Food-processing industry: Juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
Chemical industry concerned with products for daily use: Grease, water quality, powder cream high-level cosmetics; Shoe Polish, tooth paste, soap, cleaning detergent, bath extract.
Chemical industry: Lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
Other industries: Plastic industry, pharmaceutical industry, textile industry, construction industry and coinage industry.

Working principle

The machine is through the relative motion rotating at high speed with the different geometry's stator and rotor. When the material to be processed in weight, air pressure and centrifugal force, through the adjustable rotor clearance, action by the strong shear force, friction, impact strength , high-frequency vibration and other composite force, the material is effectively broken, dispersed and emulsified and mixed, and obtain the ideal product.
Crushing chamber has three grinding zone, the first is coarse grinding zone, the second is finely grinding zone, and the last is ultra- fine grinding zone, by adjusting the clearance of stator and rotor, can effectively achieve the desired effect of ultra-fine grinding(Also can be loop processing).

Introduction: The JM series colloid mill is the micro-fabrication plant of wet materials. The structural type of the machine is the pioneer in domestic, which possesses the characteristics of advanced equipment, reliable performance, easy operation, balanced operation, small noise, easy maintenance, corrosion prevention, wide application, and complete varieties. Main technical specifications have reached the advanced level of the similar products both at home and abroad.

Jms Peanut Colloid Mill Grinding Machine (Meet Food Class)

Sample as following:

Jms Peanut Colloid Mill Grinding Machine (Meet Food Class)

Main technical parameters:

Name	Standing colloid mill		Variable colloid mill							Lateral colloid mill
Type	JM-80 (J)	JM-130 (J)	JMS-50	JMS-80	JMS-130	JMS-180	JMS-240	JMS-300	JMS-450	JMW-120
Material processing size(µ m)(single cycle or multi-cycle)	2-50	2-50	2-50	2-50	2-50	2-50	2-50	2-50	2-50	2-80
Capacity (t/h)(change with the nature of material	0.07-0.5	0.5-2	0.005-0.03	0.007-0.5	0.5-2	0.8-6	4-15	6-20	10-40	1-4
Power of main electrical motor(kw)	4	11	1.1	4	11	15	37	55-75	160/200	11
rpm of electrical motor (r/min. )	2890	2930	1750-5000	1600-5000	1750-5000	1600-5000	1600-2950	1750-2970	1750-2970	2930
Overall size (L x W x H) mm	45 X46 X133	55 X55 aX140	53 X26 X58	68 X38 X93	99 X44X 105	135 X55 X134	135 X60 X128	135 X60 X142	198 X73 X187	107 X34 X74
Gross weight (kg)	190	320	70	210	420	550	1300	1600	3000	150
