JMS-80
BSIT
Shanghai, China
50 Sets/Year
T/T
1 set
wooden case packing

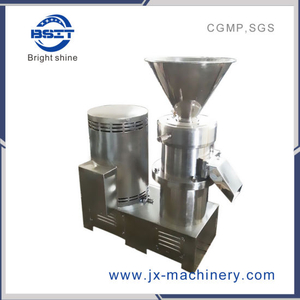

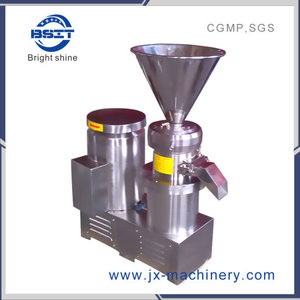

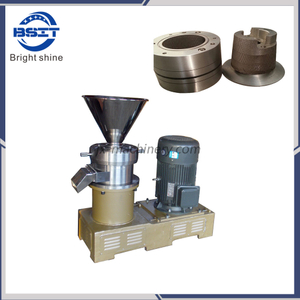

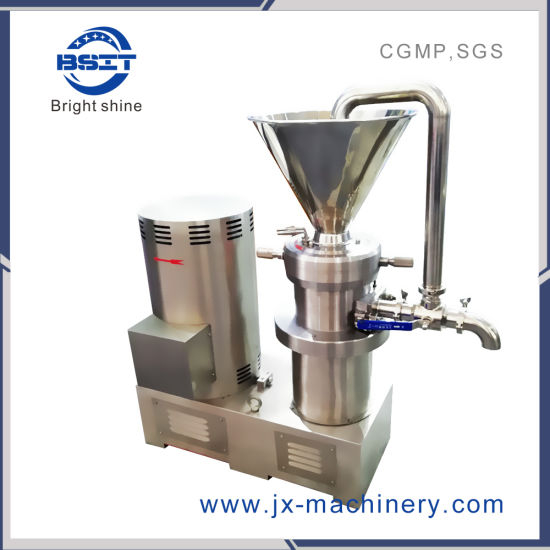

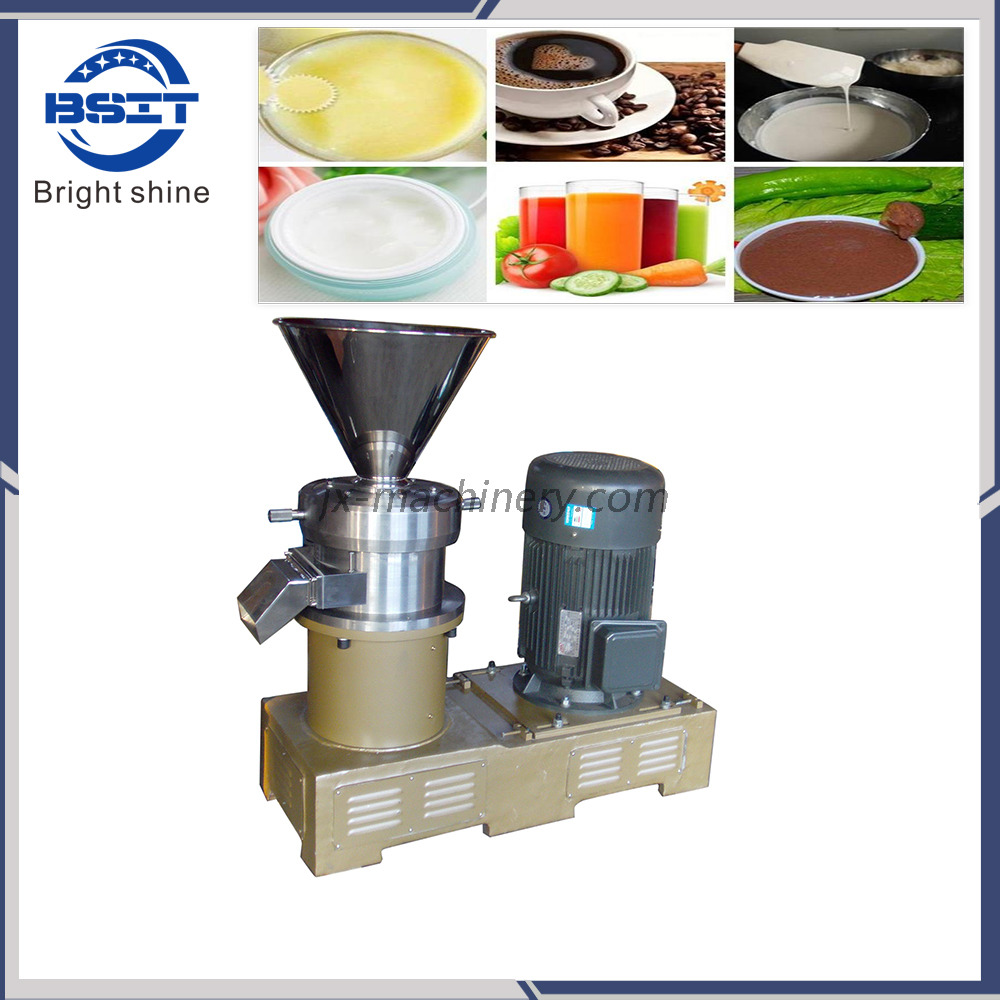

JMS-80 Factory Supply Food Machine Peanut Butter Colloid Mill
Introduction:
The JM series colloid mill is the micro-fabrication plant of wet materials. The structural type of the machine is the pioneer in domestic, which possesses the characteristics of advanced equipment, reliable performance, easy operation, balanced operation, small noise, easy maintenance, corrosion prevention, wide application, and complete varieties. Main technical specifications have reached the advanced level of the similar products both at home and abroad.
Scope of Application:
Food-processing industry: Juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
Chemical industry concerned with products for daily use: Grease, water quality, powder cream high-level cosmetics; Shoe Polish, tooth paste, soap, cleaning detergent, bath extract.
Chemical industry: Lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
Other industries: Plastic industry, pharmaceutical industry, textile industry, construction industry and coinage industry.
Main technical parameters:
| Name | Standing colloid mill | Variable colloid mill | Lateral colloid mill | |||||||
| Type | JM-80 (J) | JM-130 (J) | JMS-50 | JMS-80 | JMS-130 | JMS-180 | JMS-240 | JMS-300 | JMS-450 | JMW-120 |
| Material processing size(µ m)(single cycle or multi-cycle) | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-80 |
| Capacity (t/h)(change with the nature of material | 0.07-0.5 | 0.5-2 | 0.005-0.03 | 0.007-0.5 | 0.5-2 | 0.8-6 | 4-15 | 6-20 | 10-40 | 1-4 |
| Power of main electrical motor(kw) | 4 | 11 | 1.1 | 4 | 11 | 15 | 37 | 55-75 | 160/200 | 11 |
| rpm of electrical motor (r/min. ) | 2890 | 2930 | 1750-5000 | 1600-5000 | 1750-5000 | 1600-5000 | 1600-2950 | 1750-2970 | 1750-2970 | 2930 |
| Overall size (L x W x H) mm | 45 X46 X133 | 55 X55 aX140 | 53 X26 X58 | 68 X38 X93 | 99 X44X 105 | 135 X55 X134 | 135 X60 X128 | 135 X60 X142 | 198 X73 X187 | 107 X34 X74 |
| Gross weight (kg) | 190 | 320 | 70 | 210 | 420 | 550 | 1300 | 1600 | 3000 | 150 |
JMS-80 Factory Supply Food Machine Peanut Butter Colloid Mill
Introduction:
The JM series colloid mill is the micro-fabrication plant of wet materials. The structural type of the machine is the pioneer in domestic, which possesses the characteristics of advanced equipment, reliable performance, easy operation, balanced operation, small noise, easy maintenance, corrosion prevention, wide application, and complete varieties. Main technical specifications have reached the advanced level of the similar products both at home and abroad.
Scope of Application:
Food-processing industry: Juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
Chemical industry concerned with products for daily use: Grease, water quality, powder cream high-level cosmetics; Shoe Polish, tooth paste, soap, cleaning detergent, bath extract.
Chemical industry: Lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
Other industries: Plastic industry, pharmaceutical industry, textile industry, construction industry and coinage industry.
Main technical parameters:
| Name | Standing colloid mill | Variable colloid mill | Lateral colloid mill | |||||||
| Type | JM-80 (J) | JM-130 (J) | JMS-50 | JMS-80 | JMS-130 | JMS-180 | JMS-240 | JMS-300 | JMS-450 | JMW-120 |
| Material processing size(µ m)(single cycle or multi-cycle) | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-50 | 2-80 |
| Capacity (t/h)(change with the nature of material | 0.07-0.5 | 0.5-2 | 0.005-0.03 | 0.007-0.5 | 0.5-2 | 0.8-6 | 4-15 | 6-20 | 10-40 | 1-4 |
| Power of main electrical motor(kw) | 4 | 11 | 1.1 | 4 | 11 | 15 | 37 | 55-75 | 160/200 | 11 |
| rpm of electrical motor (r/min. ) | 2890 | 2930 | 1750-5000 | 1600-5000 | 1750-5000 | 1600-5000 | 1600-2950 | 1750-2970 | 1750-2970 | 2930 |
| Overall size (L x W x H) mm | 45 X46 X133 | 55 X55 aX140 | 53 X26 X58 | 68 X38 X93 | 99 X44X 105 | 135 X55 X134 | 135 X60 X128 | 135 X60 X142 | 198 X73 X187 | 107 X34 X74 |
| Gross weight (kg) | 190 | 320 | 70 | 210 | 420 | 550 | 1300 | 1600 | 3000 | 150 |
