Pharmaceutical Manufacturing Machine Liquid Plastic Blister Packing Machine Dpp-250



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
Dpp-250
Usage:
Outer, Inner
Type:
General
Name:
Alu-PVC Blister Packing Machine
Keywords:
Blister Packing Machine
Cutting Frequency:
10-50 Times/Min
Material:
SUS304 or SS316
Capacity:
9600 PCS/H
Max Forming:
240X150X26
Stroke:
40~160
Total Power:
6.0kw
PVC Hard Pieces:
0.25~0.5×250mm
Weight:
1600kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Application Field:
Food, Medical, Commodity, Beverage, Chemical
Driven Type:
Mechanical
Automatic Grade:
Automatic
Structure:
Feeding
Packaging Material:
Plastic
Packaging Type:
Blister

Product Description

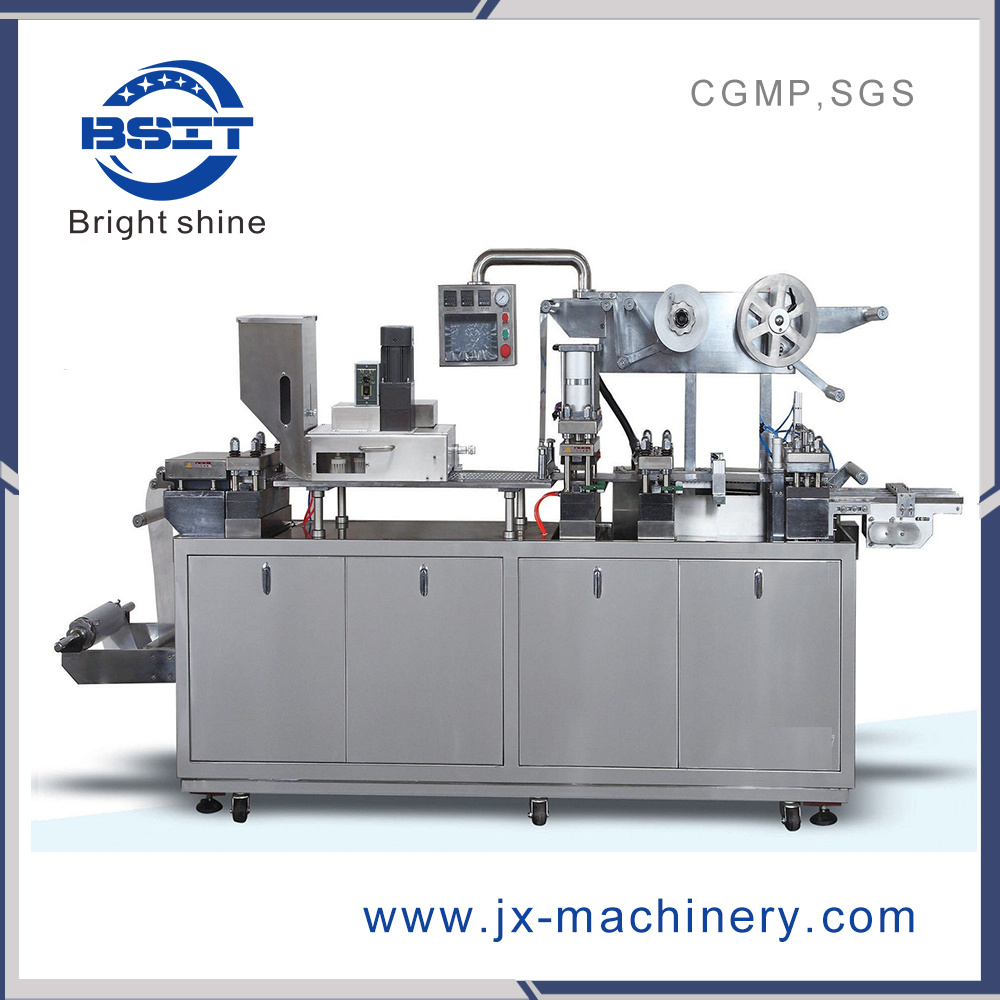

Pharmaceutical Manufacturing machine Liquid Plastic Blister Packing Machine Dpp-250

why choose our DPP 250 MACHINE?

1. It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu

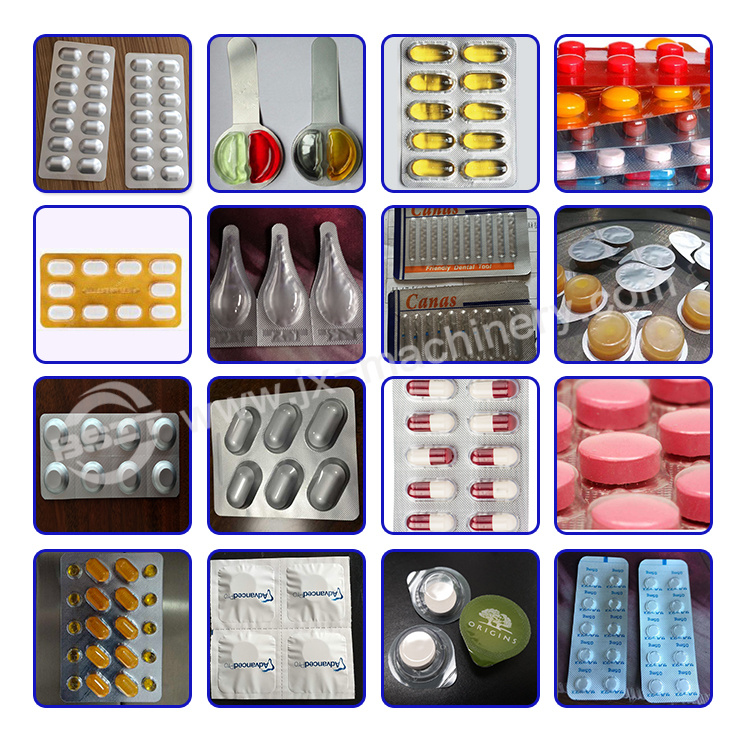

2. it is for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.

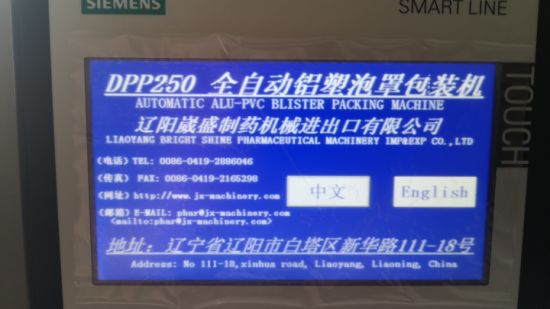

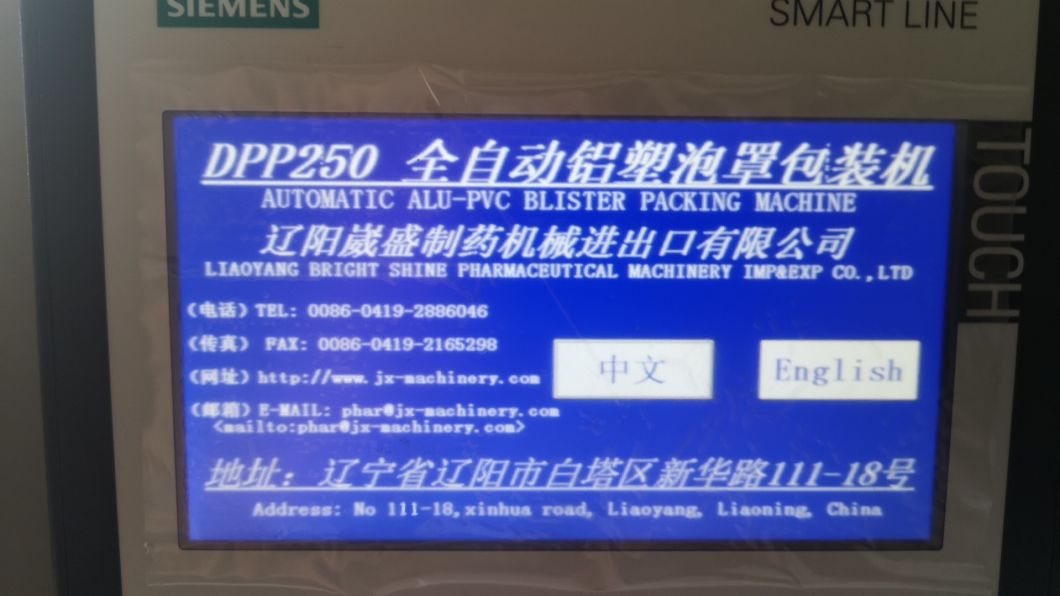

3. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; it is ideal blister packaging equipment.

Wroking video please check: https://youtu.be/jy1akWgIa_U

Main Feature:

1.Forming, heating sealing, batch marking, impression and cutting are with
Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.

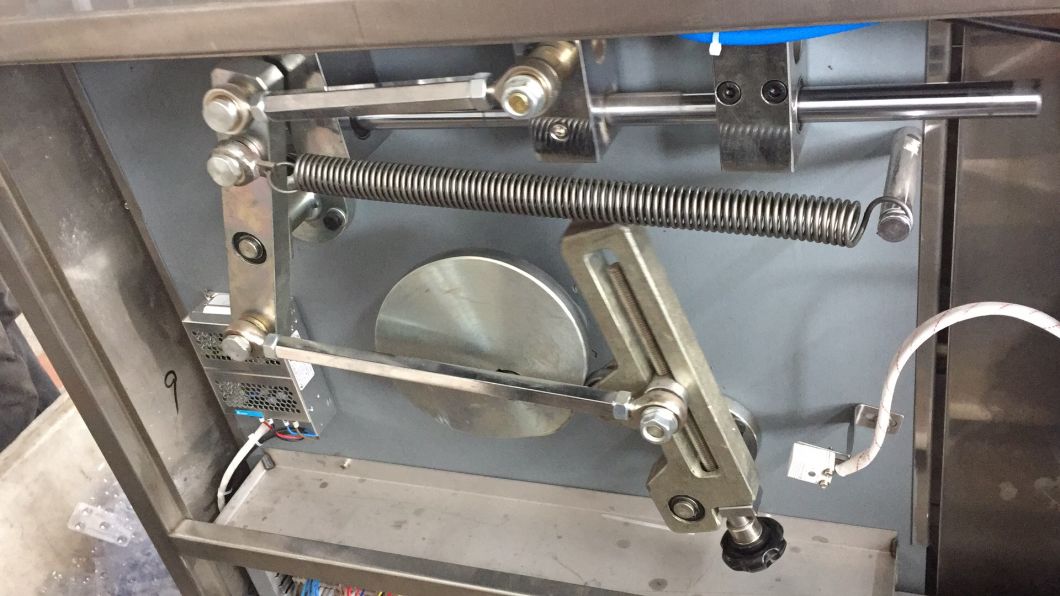

2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.
4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5.The body of machine can be produced under the split production for easier moving into the working room.

1.Optional Equipped with Photocell detecting device

2.Optional Equipped with Acylic glass cover

3.Optional Equipped with ink jet coding device

Technical data:

Model	DPP80	DPP140	DPP250
Cutting Frequency (Times/min) (according standard blister 80×57)	20-40	15-35	10-50
Capacity (Blister/h) (Calculating according standard blister )	2400	4800	9600
Max forming area and depth (mm)	80×100×26		240×150×26
Stroke (mm) (Can Be Manufactured As User's Requirements)	60~95	40~110	40~160
Air Pressure(Mpa)	0.4~0.6
Standard Plate (mm) (Can Be Manufactured As User's Requirements)	80×57×1	80×57×2	80×57×4
Total Power (Kw/volt/frequency))	1.8/220V/50Hz	3.2/380V/50Hz	6.0/380V/50Hz
Main motor power (kw)	0.55		1.5
PVC hard pieces (mm) (thickness×width)	0.15~0.5×80		0.25~0.5×250
PTP Aluminum Foil (mm) (thickness×width)	0.02~0.035×80		0.02~0.035×250
Mould Cooling	Tap water or recycle water
Overall Dimensions (L×W×H) (mm)	900×460×890	2300×700×1550	3000×730×1600
Weight (kg)	350	750	1600
