Automatic pharmaceutical/food/liquid Blister Packaging Machine (DPP150)

Automatic pharmaceutical/food/liquid Blister Packaging Machine
  • DPP150

  • BSIT

  • 8422303090

  • Shanghai, China

  • 30 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • 1 SET

  • export wooden packing

     Automatic pharmaceutical/food/liquid Blister Packaging Machine (DPP150)

DPP150 auto blister packing machine

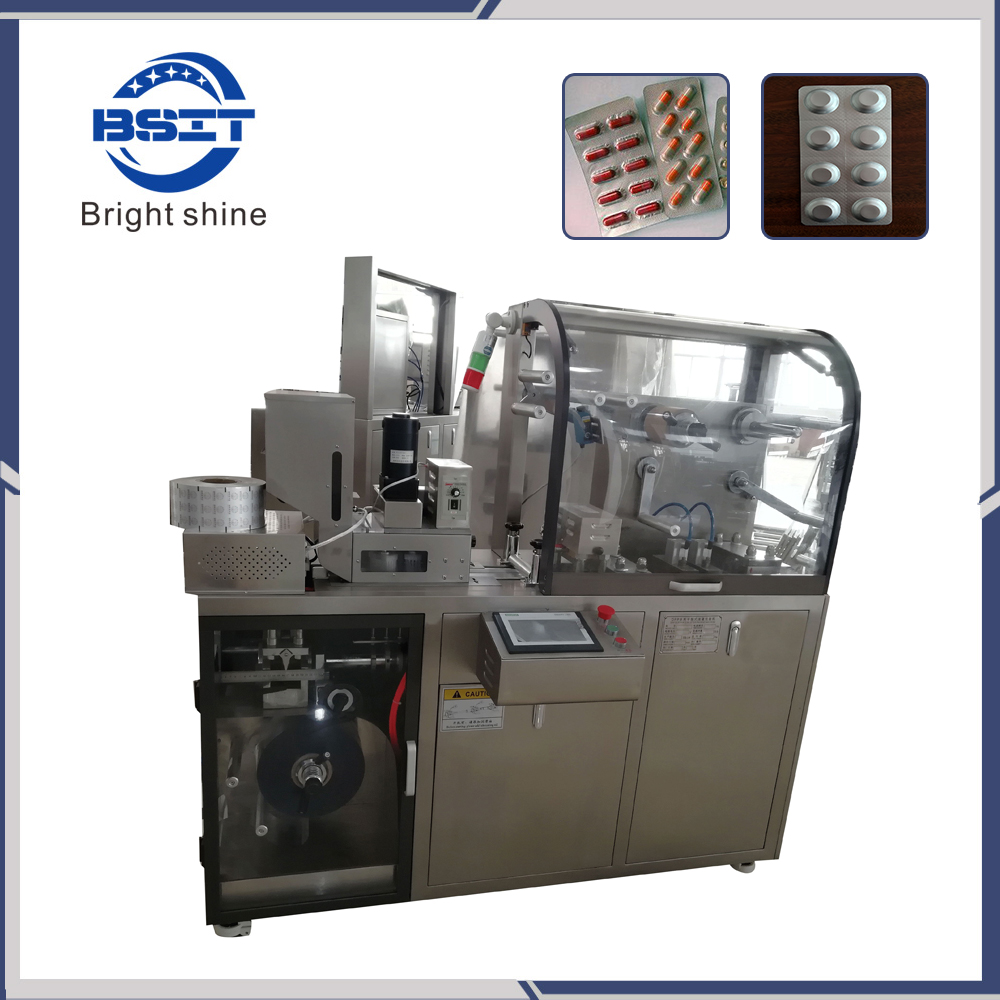

DPP110 Blister packing machine


DPP250 high speed blister packing machine

DPP250 with kuang Overview:

This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.

Usage: It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.


1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device (Omron Sensor) for number of medicines according to the user’s requirement. It adopts imported frequency inverter.

3.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade

blister sample:


Technical data:

Punches frequency


Production capacity

1200-4200plates/hour( two plates one time)

Max. forming area and depth

145x110(standard thickness≤15mm) Max. depth 26mm

Stroke range

50-120mm( can be designed as per users required)

Standard plate size

80x57mm ( can be designed as per users required)

Clean compressed air


Air compressed capacity


Total power supply

380V 50HZ 3.8kw

Main power


PVC hard film


PTP Aluminum film


Dialysis paper


Mould cooling

Tap water or recycling water

Overall dimension


Net Weight


Gross Weight


Overall Dimension
