DPP260
BSIT
8422303090
Shanghai, China
30 Sets/Year
T/T, Western Union, Paypal, Money Gram
1 SET
export wooden packing

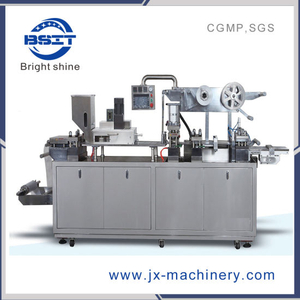

DPP260 High Speed Automatic Pharmaceutical Medicine Pill Tablet Capsule Flat Plate Al-Al /Alu-Alu/ Alu-PVC Blister Packaging Packing Machine
why choose our new model servo motor DPP 260 blister packing machine ?
1. It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu
2. it is for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.
3. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; it is ideal blister packaging equipment.
Wroking video please check: https://youtu.be/jy1akWgIa_U
Main Feature:
1.Forming, heating sealing, batch marking, impression and cutting are with
Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.
4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5.The body of machine can be produced under the split production for easier moving into the working room.
1.Optional Equipped with Photocell detecting device
2.Optional Equipped with Acylic glass cover
3.Optional Equipped with ink jet coding device
Technical data:
Model | DPP80 | DPP110 | DPP150 | DPP250 |
Punch frequency(times/min) | 10-33 | 10-33 | 10-35 | 10-40 |
Production capacity(plates/hour) | 1980 | 1980 | 1200-4200 | 580-3800 |
Max. Forming area & Depth (mm) | 80x100x26
| 90X115X26
| 145x110X26 | 240x140x26 |
Standard Stroke range(mm) | 30-80mm | 35-90mm | 50-120mm | 40-140 |
Standard plate size (mm) | 80x57 | 80x57 | 80x57 | 80x57 |
Air pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Total power supply | 380V/220V 50Hz 1.8Kw | 380V/220V 50Hz 2.4Kw | 380v/220v 50HZ 3.8KW | 380v/220v 50HZ 6.2KW |
Main motor(kw) | 0.55 | 0.75 | 1.5 | 1.5 |
PVC hard Film(mm) | (0.15-0.5)X110 | (0.15-0.5)X110 | （0.15-0.5）×160 | (0.15-0.5)x250 |
PTP Aluminum film(mm) | (0.02-0.035) X110 |
(0.02-0.035) X110 | (0.02-0.035）×160 | (0.02-0.035)x250 |
Dialysis Paper(mm) | (50-100g)X110
| (50-100g)x110
| （0.02-0.035）×160 | (50-100)x250 |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | tap water or recycle weter | tap water or recycle weter |
Overall Dimension(mm) | 1840x590x1100 | 1600x620x1420 | 2315×635×1405 | 3000×730×1600 |
Weight(kg) | 415 | 580 | 820 | 1400 |
Noise index(dBA) | <75 | <75 | <75 | <75 |

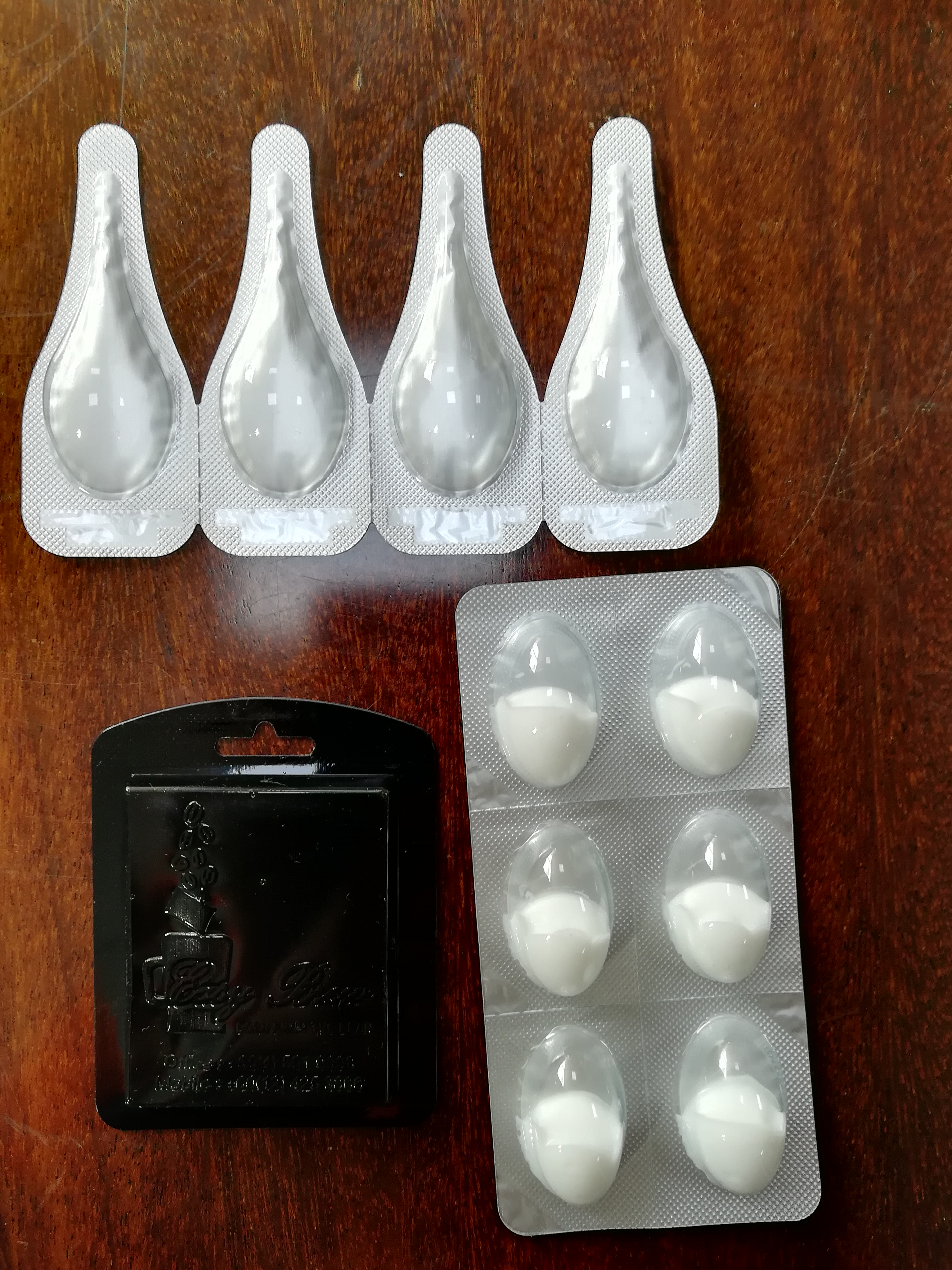

Sample:
DPP260 High Speed Automatic Pharmaceutical Medicine Pill Tablet Capsule Flat Plate Al-Al /Alu-Alu/ Alu-PVC Blister Packaging Packing Machine
why choose our new model servo motor DPP 260 blister packing machine ?
1. It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu
2. it is for capsule, tablet, candy, honey shape pills, disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.
3. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; it is ideal blister packaging equipment.
Wroking video please check: https://youtu.be/jy1akWgIa_U
Main Feature:
1.Forming, heating sealing, batch marking, impression and cutting are with
Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2.Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3.It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.
4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5.The body of machine can be produced under the split production for easier moving into the working room.
1.Optional Equipped with Photocell detecting device
2.Optional Equipped with Acylic glass cover
3.Optional Equipped with ink jet coding device
Technical data:
Model | DPP80 | DPP110 | DPP150 | DPP250 |
Punch frequency(times/min) | 10-33 | 10-33 | 10-35 | 10-40 |
Production capacity(plates/hour) | 1980 | 1980 | 1200-4200 | 580-3800 |
Max. Forming area & Depth (mm) | 80x100x26
| 90X115X26
| 145x110X26 | 240x140x26 |
Standard Stroke range(mm) | 30-80mm | 35-90mm | 50-120mm | 40-140 |
Standard plate size (mm) | 80x57 | 80x57 | 80x57 | 80x57 |
Air pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Total power supply | 380V/220V 50Hz 1.8Kw | 380V/220V 50Hz 2.4Kw | 380v/220v 50HZ 3.8KW | 380v/220v 50HZ 6.2KW |
Main motor(kw) | 0.55 | 0.75 | 1.5 | 1.5 |
PVC hard Film(mm) | (0.15-0.5)X110 | (0.15-0.5)X110 | （0.15-0.5）×160 | (0.15-0.5)x250 |
PTP Aluminum film(mm) | (0.02-0.035) X110 |
(0.02-0.035) X110 | (0.02-0.035）×160 | (0.02-0.035)x250 |
Dialysis Paper(mm) | (50-100g)X110
| (50-100g)x110
| （0.02-0.035）×160 | (50-100)x250 |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | tap water or recycle weter | tap water or recycle weter |
Overall Dimension(mm) | 1840x590x1100 | 1600x620x1420 | 2315×635×1405 | 3000×730×1600 |
Weight(kg) | 415 | 580 | 820 | 1400 |
Noise index(dBA) | <75 | <75 | <75 | <75 |
Sample:
