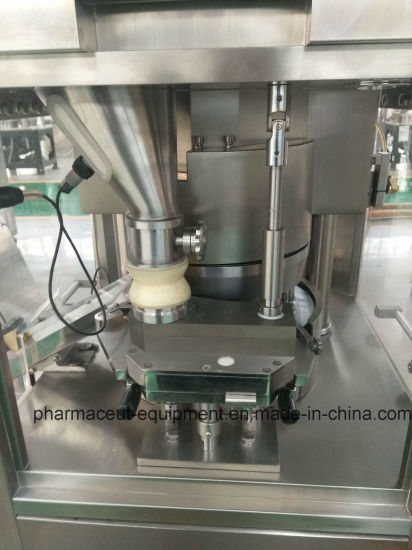

Pharmaceutical Machinery Rotary Tablet Pressing Machine (ZPT-17) Why choose our machine?
- ZPT15/ZPT17/ZPT20/ZPT25 tablet press machine as optional
- The machine can be pressed into a variety of granular raw materials round tablets, shaped tablets, cartoons, double-sided positioning lettering films.
- It can be used in pharmaceutical industries, chemical, food and electronic.
- This machine new design with pre-pressure function
- This machine with the force feeder system
- Guarantee 1 year
- Full compliance with GMP requirements.
- Supply free FAT testing
- Supply SAT testing according to customer request.
- tablet press working video https://youtu.be/M-oPHrywYrk
1. The contact with product adopt ss316 stainless steel.
2.The hole of the punch¨ is with special anti-leakage and anti-dust device. Convience for disassemble structure, make sure the maintenance. Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design. 3.The force feeder system solves the shortage situation of normal tablet pressing machine.
4.Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the enforced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
. The powder recovery system solves the cross contamination. Machine main drawing as following: Technical Parameter:
|Model ||ZPT15 ||ZPT17 ||ZPT20 ||ZPT25 |
|Die type ||D ||B ||BB ||BBS |
|Number of dies ||15 ||17 ||20 ||25 |
|Max. diameter of tablet (mm) ||25 ||16 ||13 ||11 |
|Max abnormal Prolate axis size (mm) ||25 ||18 ||16 ||_ |
|Maxoutput (tablets/h) ||70000 ||80000 ||95000 ||118000 |
|Maximum filling depth (mm) ||20 ||16 ||16 ||16 |
|Maximum main pressure (KN) ||100 ||80 ||80 ||80 |
|Maximum pre-pressure (KN) ||12 ||12 ||12 ||12 |
|Idle load noise dB(A) ||< 75 |
|Power of main motor (KW) ||380V 50HZ 5.5KW |
|Size of machine (mm) ||660× 690× 1620 |
|Net weight of machine (kg) ||675 |
