Pharmaceutical Machinery Dpp80 Alu-Alu Blister Packing Machine with High Quality



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DPP80
Usage:
Inner
Type:
General
Capacity:
2400 Strips/H
Punch Frequency:
20-40 Times/Min
Max Forming Area and Depth(mm):
80X100X26mm
Stroke(mm):
20-100mm
Standard Strip(mm):
80X57mm
Air Pressure(MPa):
0.4-0.6MPa
Total Power:
380V/220V 50Hz
Main Motor Power(Kw):
0.55kw
PVC Hard Pieces(mm):
0.15-0.5X88
Mould Cooling:
Tap Water or Recycle Weter
Overall Dimension(mm):
900X460X89(Lxwxh)
Weight:
350kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Application Field:
Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical, Apparel
Driven Type:
Mechanical
Automatic Grade:
Automatic
Structure:
Feeding
Packaging Material:
Plastic
Packaging Type:
Blister

Product Description

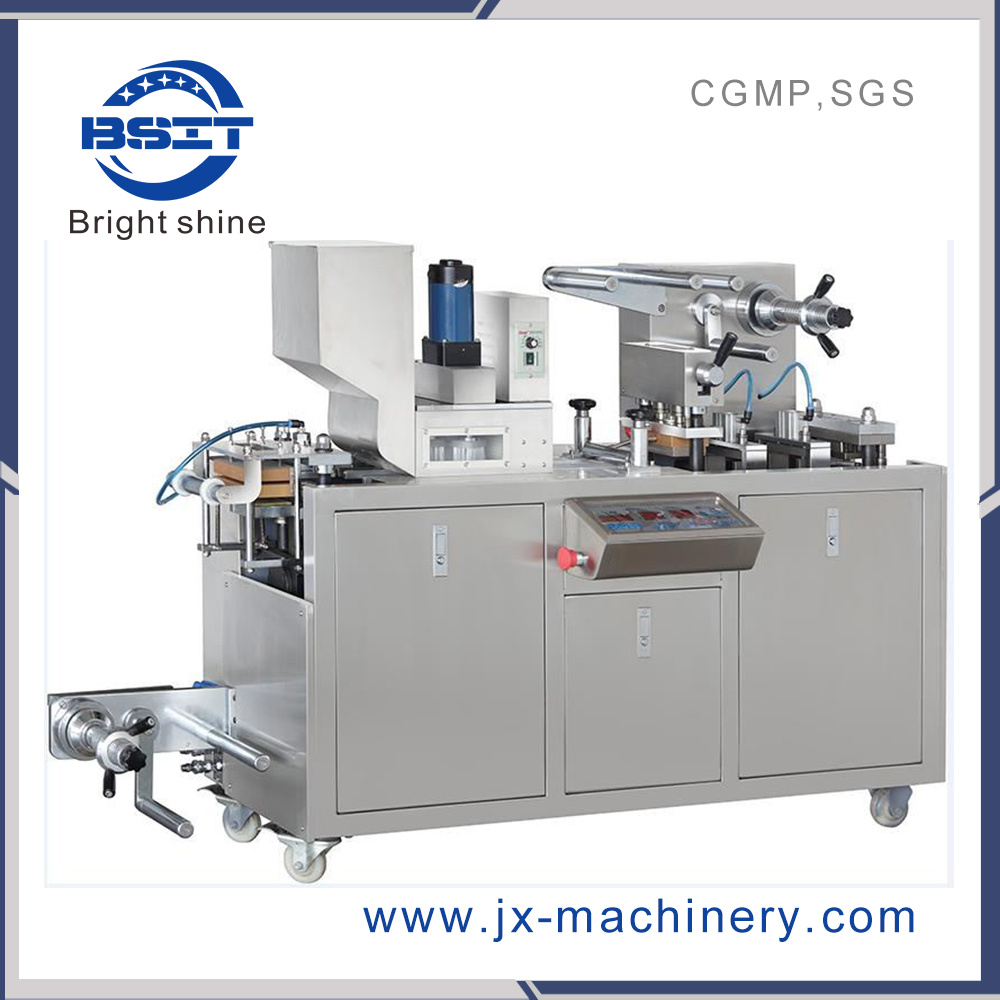

Dpp-88 Mini PVC/PE Alu-Alu Blister Packing Machine

This machine is a medicine packing machine by innovating design of our company, it is function reaches at leading in China. This latest generation blister packing machine widely used in small pharmacy factory, dosage room of hospital, institute laboratory, health care product food industry. It is applied to ALU-plastic, ALU-ALU blister packing for tablet, sugar-coated tablets, small hardware etc.

This machine can form the materials, heat seal al-plastic through pressing, and punch blocks in fort through the rotation of the front and rear boxes and cans
shaft, whereas the moulds is equipped on the middle guide, which works through the top rod's rolling with
the cam up and down, and the latitude shaft drives the crank to work while it is working, and the crank drives
the cam to have the mechanical hands work in equidistance through the formed PVC and aluminum foil.
The feeder can fill the capsules with medicament and the forming mould blisters, heat seals, stamps lot
numbers, impressed and punches the blocks at the same production line simultaneously, which assures
effectively the forming, heat sealing reliability synchronically.

Pharmaceutical Machinery Dpp80 Alu-Alu Blister Packing Machine with High Quality

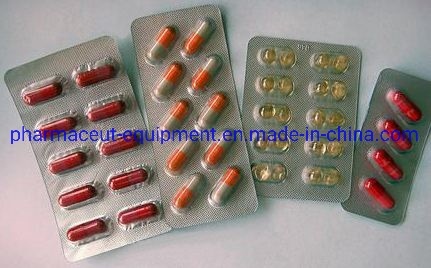

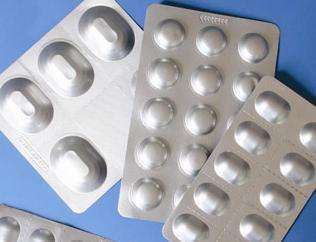

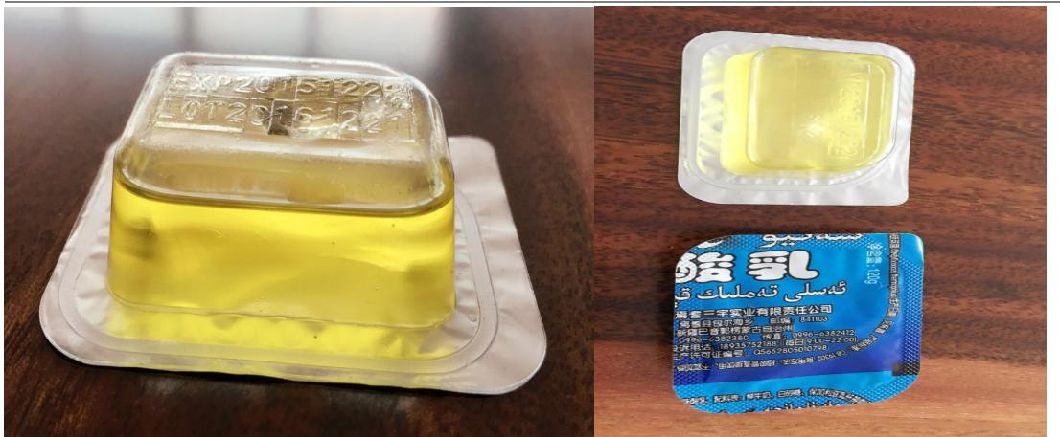

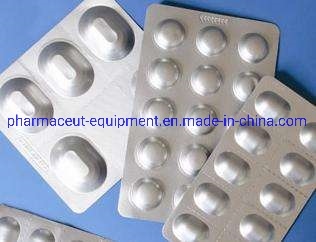

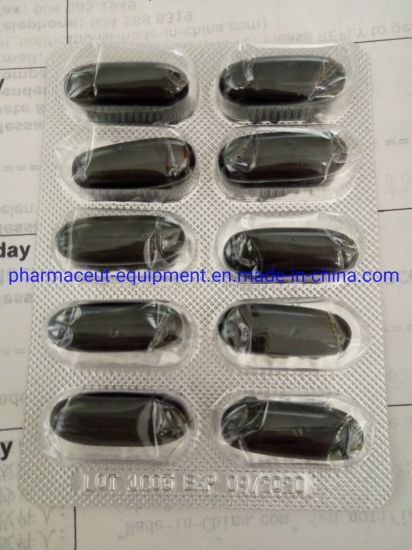

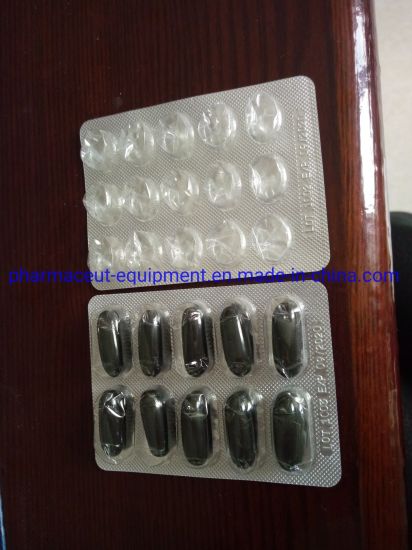

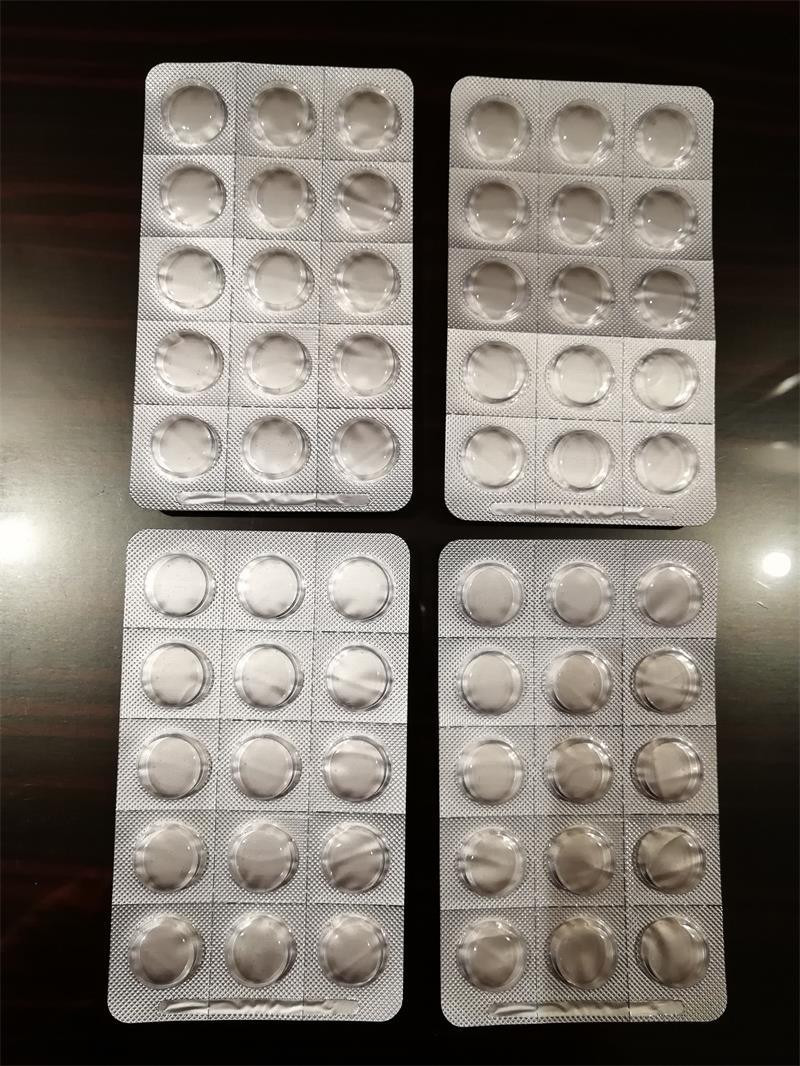

blister packing sample:

Pharmaceutical Machinery Dpp80 Alu-Alu Blister Packing Machine with High Quality

Technical parameters:

Technical data:
Punch Frequency(times/min)	20-40
Capacity(Strip/h)	2400(Standard 80x57)
Max forming area and depth(mm)	80x100x26
Stroke(mm)	20-100(can be designde as user is requirements)
Standard Strip(mm)	80x57(can be designed as user is requirements)
Air Pressure(Mpa)	0.4-0.6
Total Power	380v/220v 50HZ 1.8KW
Main Motor Power(kw)	0.55
PVC hard pieces(mm)	0.15-0.5x88
PTP Aiuminum Foil(mm)	0.02-0.035x88
Dialysis Paper(mm)	50-100x88
Mould Cooling	tap water or recycle weter
Overall Dimension(mm)	900x460X89(LXWXH)
Weight(kg)	350
