New Model Pharmaceutical Packing Packaging/Package Pack Machine of Automatic Blister Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DDP-80
Usage:
Outer
Type:
Blister Packing Machine
Model:
Dpp-80
Name:
Blister Packaging Machine
Cutting Frequency:
10-35 Times/Min
Material:
SUS304
Capacity:
2400PCS/H
Max. Forming Area and Depth:
90*115*26(mm)
Standard Stroke Range:
20-80mm
Air Pressure:
0.6-0.8MPa
Main Motor:
0.75kw
Weight:
550kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Application Field:
Food, Medical, Commodity, Beverage, Chemical
Driven Type:
Mechanical
Automatic Grade:
Automatic
Structure:
Lower Die Plate
Packaging Material:
Aluminum-PVC
Packaging Type:
Blister

Product Description

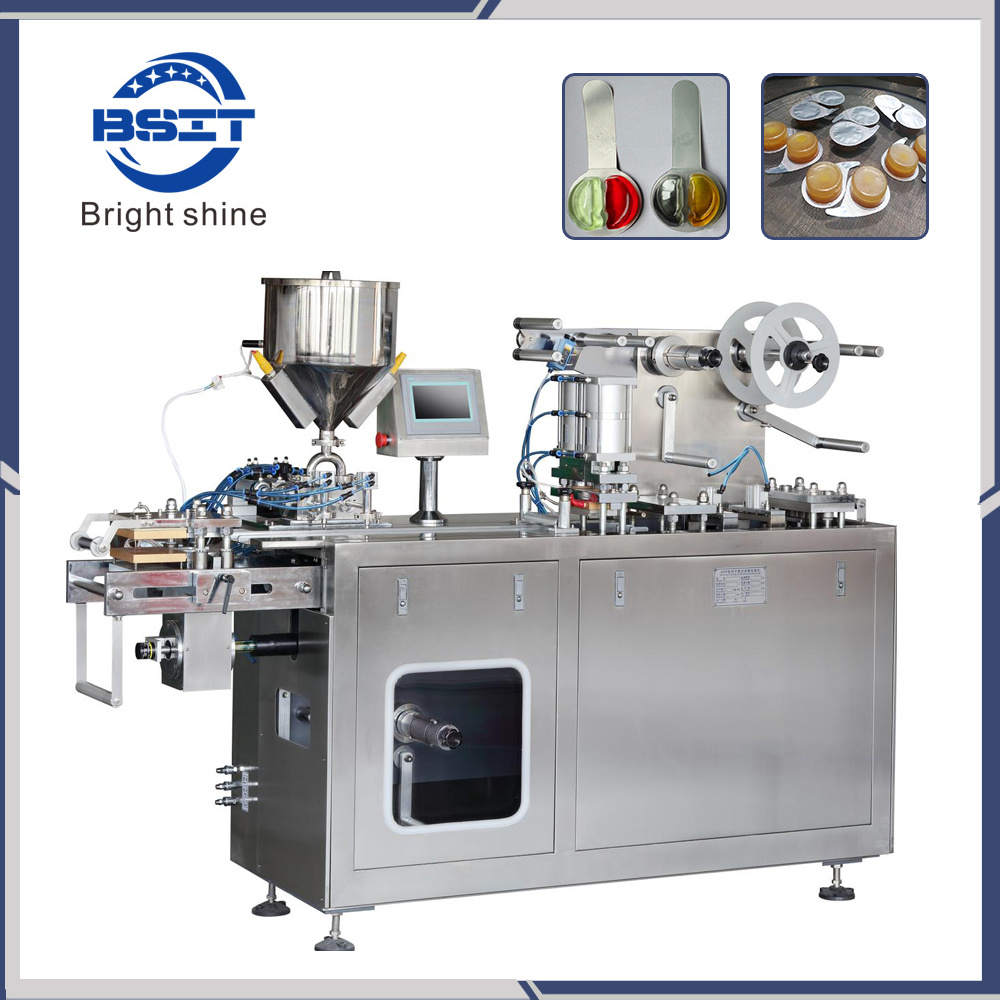

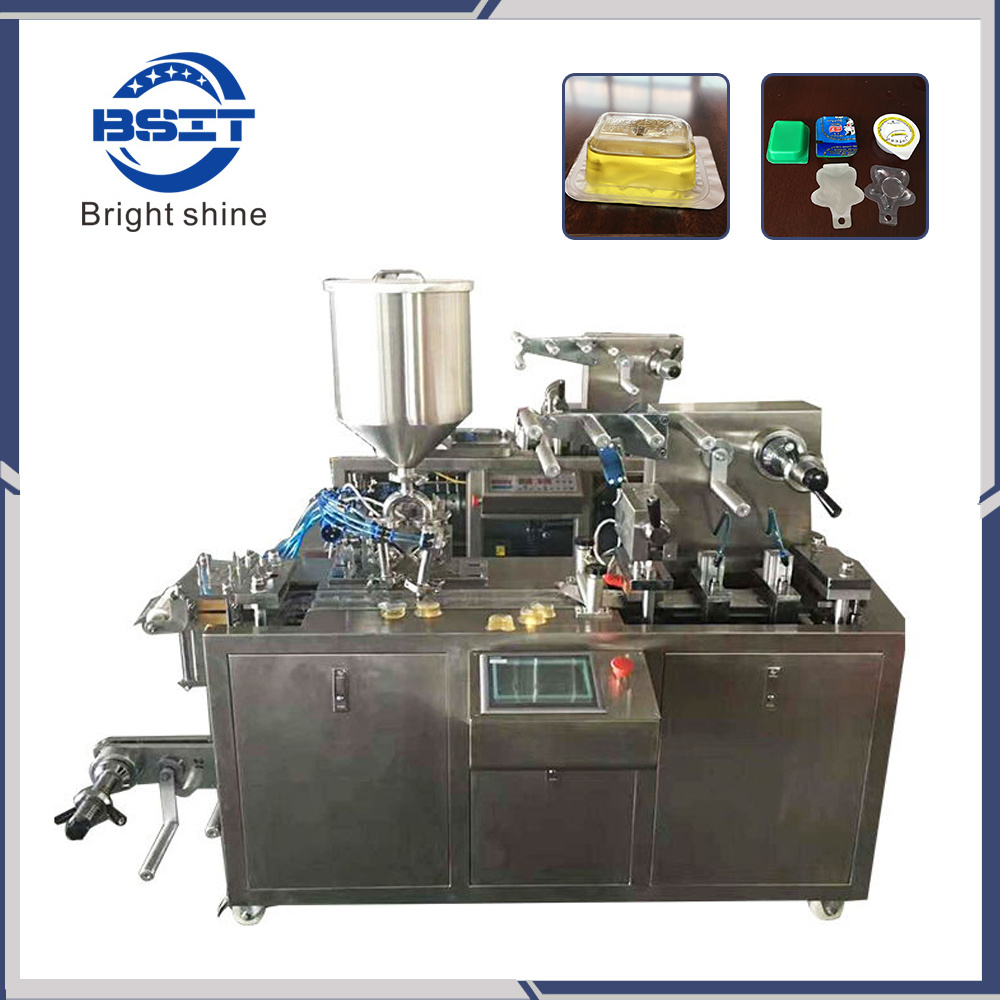

New model Pharmaceutical Packing Packaging/Package Pack Machine of Automatic Blister Machine

Why choose our mini liquid blister packing machine advantage?

1.All of working stations are adopted four columns for position. It is with stability performance and easy operation.
It can add pressing station. It can be with total of four working stations of forming, sealing, pressing and cutting.
2.It is widely suitable for all requirements of packaging.
3. It can add Waste edge device, The waste is in good consistent and clean after cut. It's easy to clean.
4. Box body can be adjusted through swing type gear with level. It's easy to adjust and check.

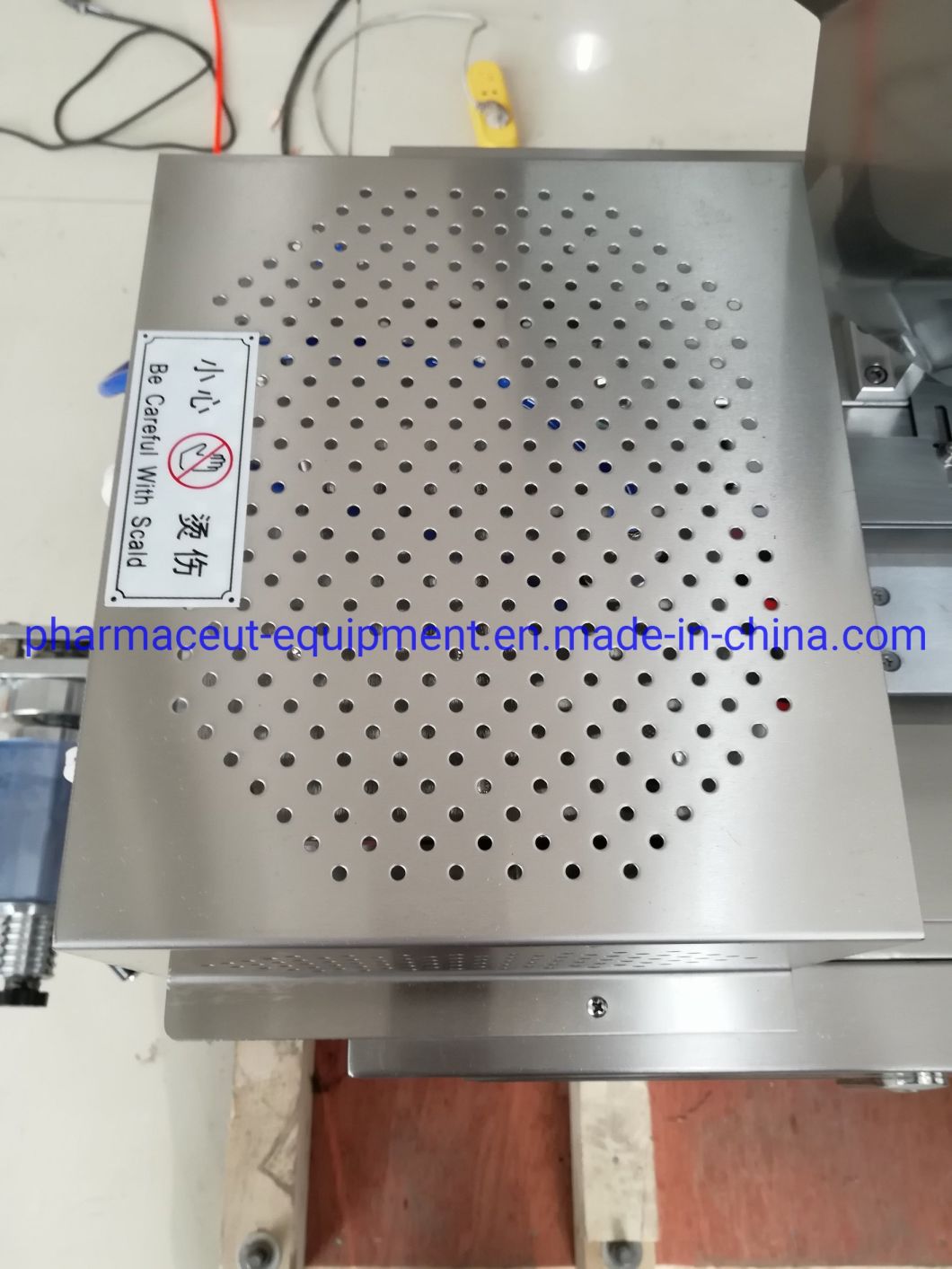

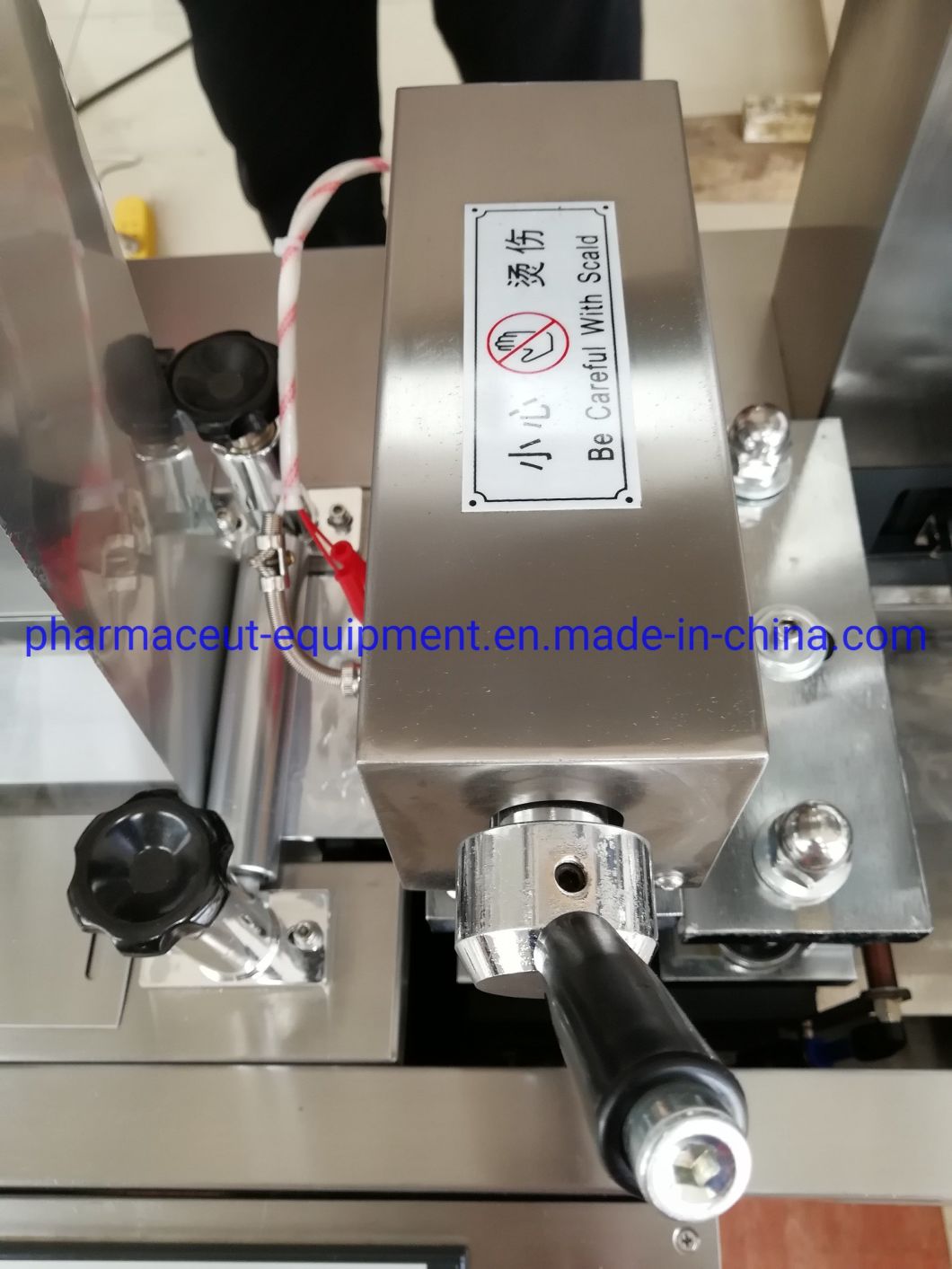

5. The hot sealing station adopts underneath type air cylinder. The pressure is average and clean appearance.

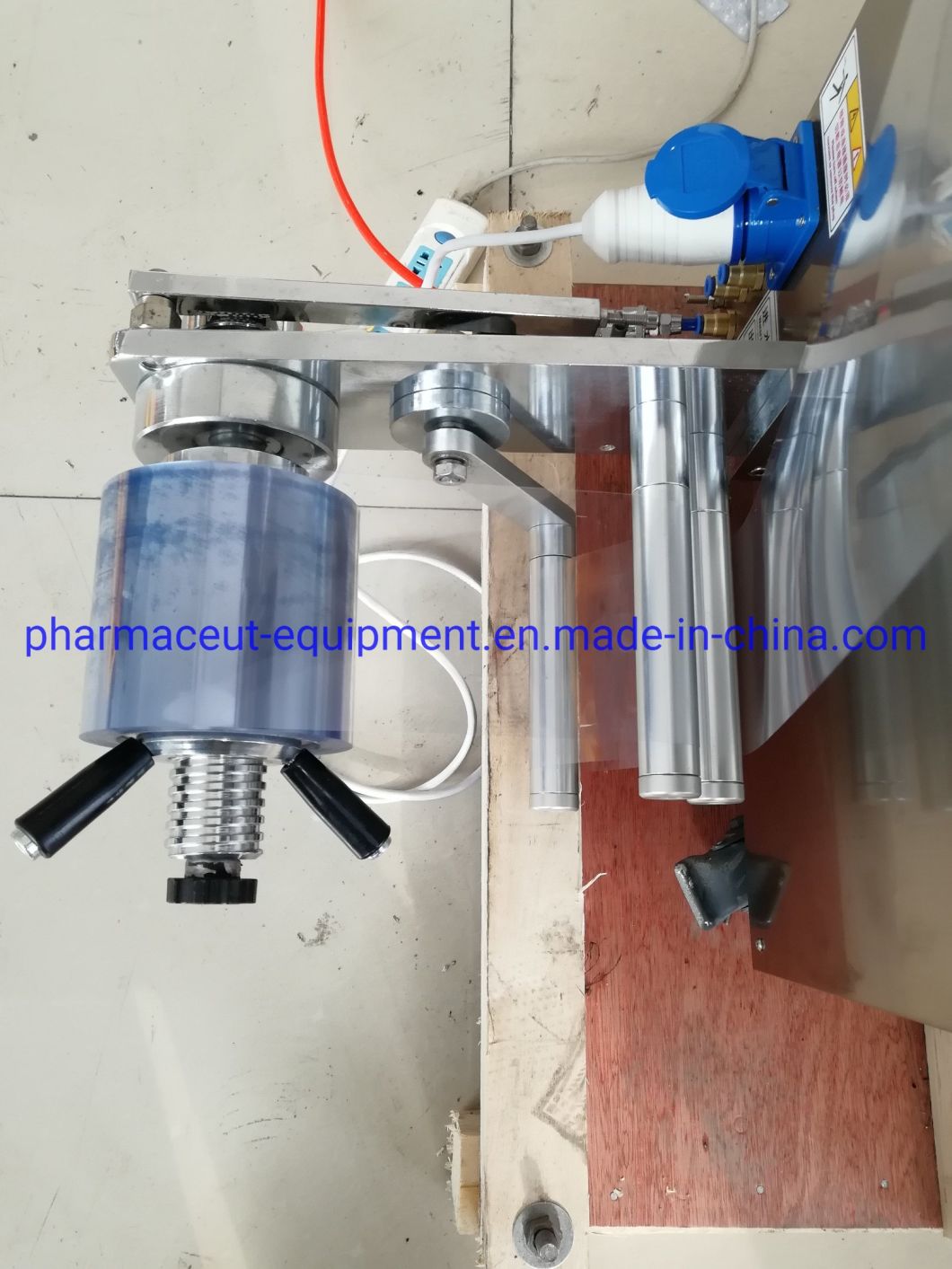

6. PVC film roller is built-in,it's sealing and dust-free.
7. this machine has ALU-ALU mould or ALU-PVC mould as optional
8. this blister packing machine suitable for pharmaceutical tablet/capsule/pill, food candy/honey/jam/cholocate/oil,helath, medical, and cosmetic and so on

New Model Pharmaceutical Packing Packaging/Package Pack Machine of Automatic Blister Machine

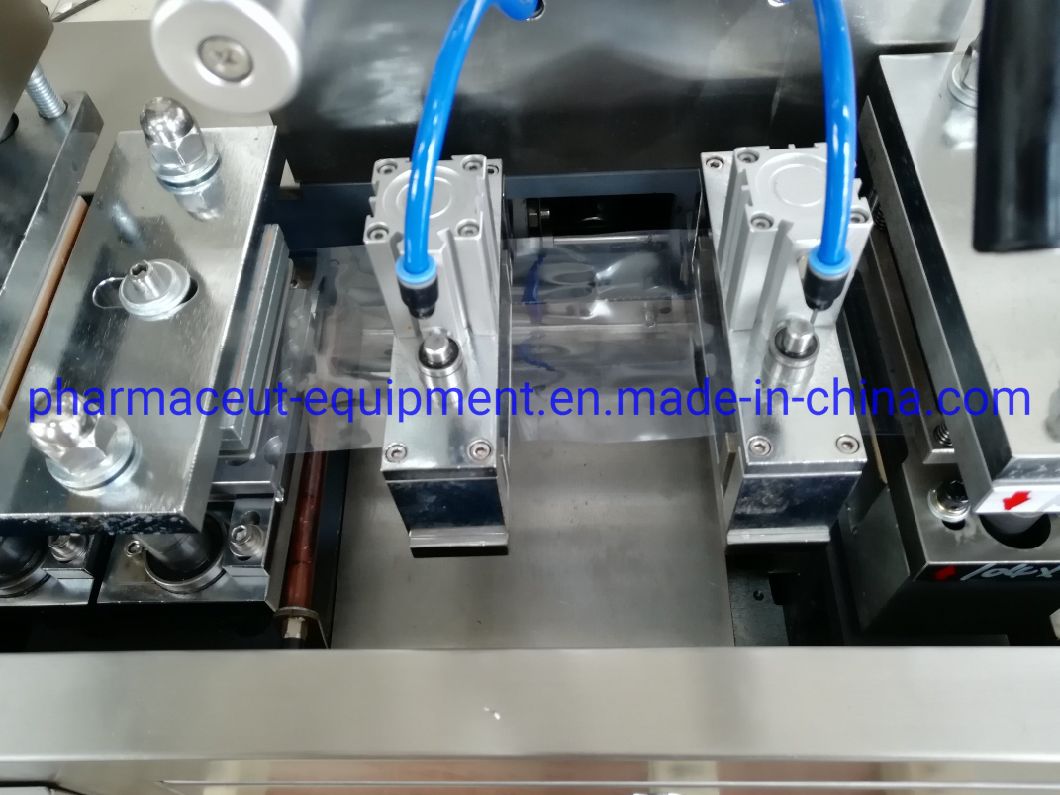

Machine Work process:

1.Forming ( up and down heating)
2.Heating sealing( up heating)
3.Embossing
4.Impression
5.Cutter
6.Finished product output

New Model Pharmaceutical Packing Packaging/Package Pack Machine of Automatic Blister Machine

Main Feature:

It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.

It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations..
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for packaging of capsule, tablet, coating pills, syringes, medical instruments electronics and etc.

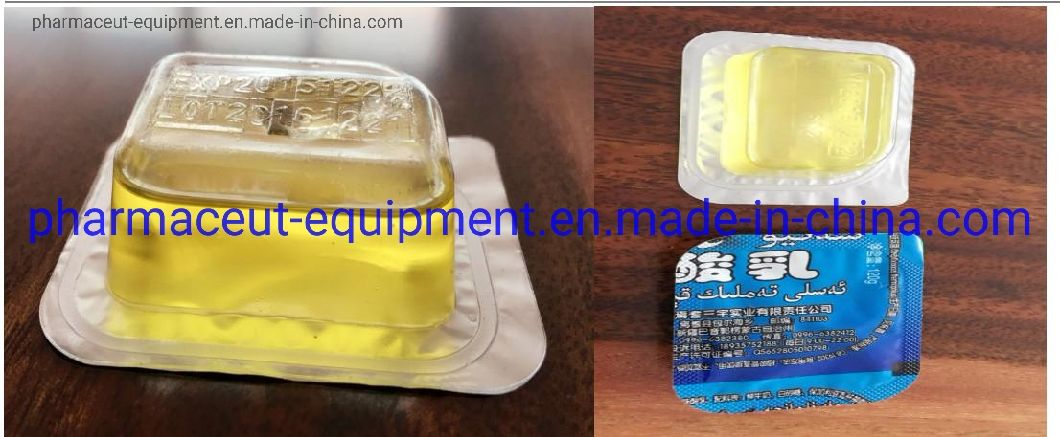

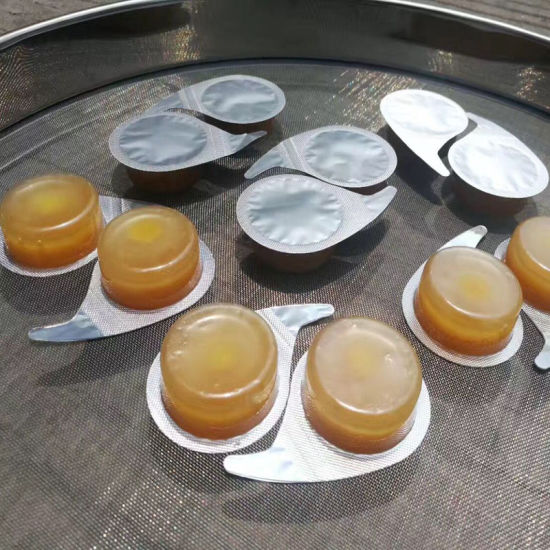

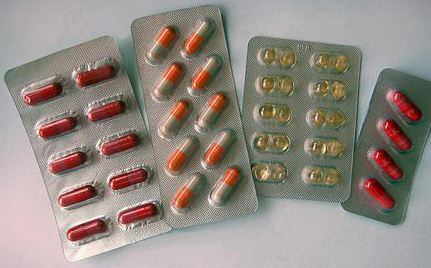

Blister sample:

New Model Pharmaceutical Packing Packaging/Package Pack Machine of Automatic Blister Machine

Technical Specifications:

Model	DPP-88-120
Punch frequency	10-35tims/min
Production capacity	2400plates/hour
Max. forming area and depth	9011526(mm)
Standard stroke range	20-80mm( can be designed as per user's required)
Standard plate size	80x57mm( can be designed as per user's required)
Air pressure	0.6-0.8Mpa
Power supply	220V 50Hz 2.4Kw
Main motor	0.75Kw
PVC hard film	0.15-0.5*120(mm)
PTP aluminum film	0.02-0.035*1200(mm)
Dialysis paper	50-100g*120(mm)
Mould cooling	Tap water or recycling water
Overall dimension	15006001200(mm)
Weight	550kg
Noise index	<75dBA
