Mini Laboratory Single Punch Tablet Press for Bdp25



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DP25
Customized:
Customized
Condition:
New
Warranty:
1 Year
Name:
Single Punch Tablet Press
Keywords:
Tablet Press
Max Diameter:
12-25mm
Capacity:
3600 PCS/H
Max Pressure:
50kn
Filling Depth:
20mm
Max Thickness:
8mm
Motor:
1.5
Size:
550*600*900mm
Weight:
200kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP standard
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Precision
Certification:
GMP, ISO
Voltage:
220V
Computerized:
Computerized

Product Description

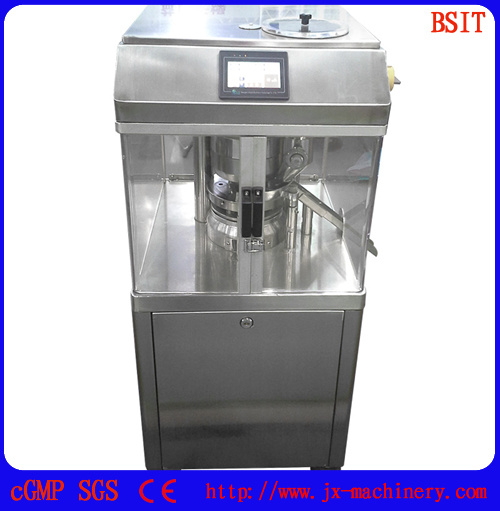

Mini Labortary Single Punch Tablet Press for Bdp25

Introduction:

BDP-12/BDP25 model single tablet press machine is to absorb advanced technology successfully developed. It is pharmaceutical, laboratory and other industries first choice and able to press the powder and granular material into tablets continuously and automatically.

Developed through the absorption of the international advanced technologies, this tablet press applicable to industries such as pharmaceutical, chemical, electric and foodstuff for pressing the powder or granulator materials into tablets automatically in a continuous way. It features advantages such as low waste of materials , reasonable structure, easy operation, compact size, large compression, low noise , small deviation of weight, with the filling depth and thickness of the tablet continuously adjustable and all the functionality indicators reaching the level of the similar imported machine.

DP12/25 single punch tablet press with stainless steel

The advantages are:

1.Materials high utilization, reasonable structure, convenient operation, small size, the depth of filling material and the thickness of the tablet can be continuously adjusted.
2.All the function index of advanced machine level and Highly sealed structure ensures powder cross pollution full compliance with national GMP standard.
3.Machine used in the design process a number of innovative designs, thus ensuring the production process more secure and standardized.
4.Safe protection device and hominization design.
5.Integral transmission structure maintains stable and low-noise operation.

Technical Parameters:

Model	DP-12	DP-25
Production Capacity	3600pc/h	3600pc/h
Max. Pressure	50kn	50kn
Max. Tablet Diameter	12mm	25mm
Filling Depth	20mm	20mm
Max. Tablet Thickness	8mm	8mm
Power	220V 50Hz 1.1kw	220V 50Hz 1.5kw
Dimension	450550750mm	550600900mm
Weight	100kg	200kg
