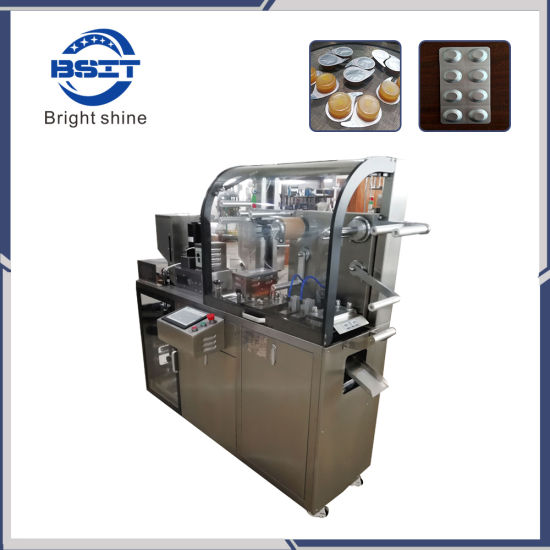

middel speed Aluminum-PVC tablet capsule Blister Packing Machine (DPP110)


Features:
- It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
- Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
- The machine adopts separation sectional combination: PVC forming, Feeding, Heating sealing for one section; Tropical cold aluminum forming, Heating sealing and cutting for another one section for separately packaging.
- It adopts photoelectrical controlling system to make PVC, PTP, be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
- It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade
- he machine is suitable for packaging of capsule, tablet, coating pills, syringes, medical instruments electronics and etc
- All of working stations are adopted four columns for position. It is with stability
performance and easy operatio - It can add pressing station. It can be with total of four working stations of forming,
sealing, pressing and cutting. It is widely suitable for all requirements of packaging - It can add Waste edge device, The waste is in good consistent and clean after cut. It's
easy to clean - Box body can be adjusted through swing type gear with level. It's easy to adjust and
check. - The hot sealing station adopts underneath type air cylinder. The pressure is average and
clean appearance. - PVC film roller is built-in,it's sealing and dust-free.
Technical data:
Model | DPP-110 |
Punch frequency | 10-33tims/min |
Production capacity | 1980plates/hour |
Max. forming area and depth | 90*115*26(mm) |
Standard stroke range | 35-90mm( can be designed as per user's required) |
Standard plate size | 80x57mm( can be designed as per user's required) |
Air pressure | 0.6-0.88pa |

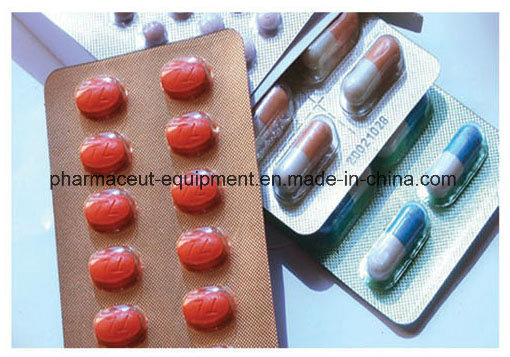

Finished product
