Hot Sale Tablet Capsule Alu-PVC Blister Packing Machine Dpp250



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DPP250
Usage:
Outer, Inner
Type:
General
Name:
Alu-PVC Blister Packing Machine
Keywords:
Blister Packing Machine
Cutting Frequency:
10-50 Times/Min
Material:
SUS304 or SS316
Capacity:
9600 PCS/H
Max Forming:
240X150X26
Stroke:
40~160
Total Power:
6.0kw
PVC Hard Pieces:
0.25~0.5×250mm
Weight:
1600kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Application Field:
Food, Medical, Commodity, Beverage, Chemical
Driven Type:
Mechanical
Automatic Grade:
Automatic
Structure:
Feeding
Packaging Material:
Plastic
Packaging Type:
Blister

Product Description

Hot sale tablet capsule Alu-PVC Blister Packing Machine DPP250

Application:

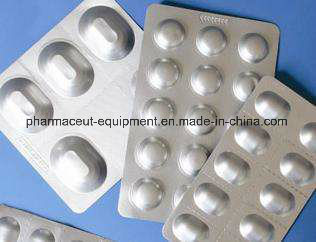

This machine is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic and Al-Al sealing packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer PLC, frequency converter, touch panel operation, high automation; it is ideal blister packaging equipment.

Wroking video please check: https://youtu.be/jy1akWgIa_U

Main Feature:
1, Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and it has staff gauge, easy to adjust and exact orientation.
2, Manipulator towing adopted culms double pendulum device, increased traction adjustable scope of the itinerary (it can get to 180mm), which can fit for medicine-card packaging of different sizes. The machine can registration heating, positive forming, up and down moiré, air cylinder heating sealing, automatic feeding, automatic lot number printing, automatic cutting die, easy to operate and credible running.
3, Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. It could fit for the packaging of ampoule, needle, Xilin Bottle, big honey pill, medical instrument and some special shape etc.
4, Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.
5, Detachable design make the machine can be easily carried and installed according to the requirement of user.

Technical data:

Model	DPP80	DPP140	DPP250
Cutting Frequency (Times/min) (according standard blister 80×57)	20-40	15-35	10-50
Capacity (Blister/h) (Calculating according standard blister )	2400	4800	9600
Max forming area and depth (mm)	80×100×26		240×150×26
Stroke (mm) (Can Be Manufactured As User's Requirements)	60~95	40~110	40~160
Air Pressure(Mpa)	0.4~0.6
Standard Plate (mm) (Can Be Manufactured As User's Requirements)	80×57×1	80×57×2	80×57×4
Total Power (Kw/volt/frequency))	1.8/220V/50Hz	3.2/380V/50Hz	6.0/380V/50Hz
Main motor power (kw)	0.55		1.5
PVC hard pieces (mm) (thickness×width)	0.15~0.5×80		0.25~0.5×250
PTP Aluminum Foil (mm) (thickness×width)	0.02~0.035×80		0.02~0.035×250
Mould Cooling	Tap water or recycle water
Overall Dimensions (L×W×H) (mm)	900×460×890	2300×700×1550	3000×730×1600
Weight (kg)	350	750	1600
