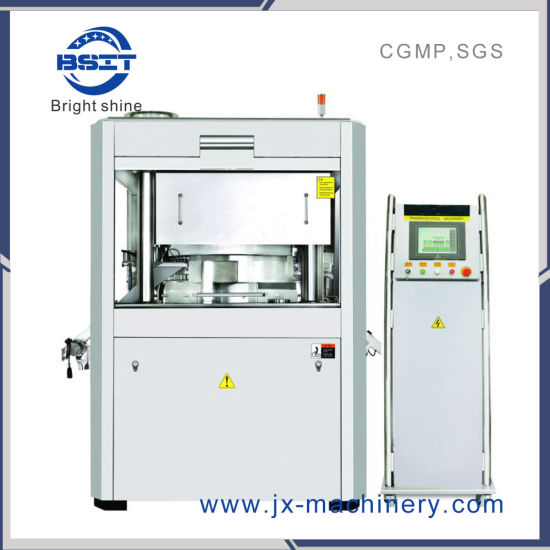

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

  • Shanghai, China

  • 50 Sets/Year

  • T/T, Western Union, Paypal, Money Gram

  • GZPT40

  • Customized

  • New

  • 1 Year

  • Automatic Rotary Pill Tablet Making Press

  • 170000-280000PCS/H

  • Rotary Tablet Press

  • 26/32/40/45

  • 13mm

  • 18m

  • 80kn

  • 20kn

  • 780X860X1930mm

  • 1650kg

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP standard

  • Made in China

  • 8438800000

  • Preparation Machinery

  • Tablet

  • Precision

  • CE, GMP, ISO

  • 380V

  • Computerized

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

Application:

it is work for Pharmaceutical medicine and chemicals.

Machine Introduction:

1.GZPT26/32/40/45 Serise High Speed Tablet Press Machine is the newest designed equipment, which totally meet GMP, ISO, and USA FDA requirement.
2.This machine is very nice, decent, and easy to operate, especially the electrical control cabinet is independent from machine, regarding to the safety of the operator.

3.The Punch Type (EU) is D/B/BB/BBS for customer choice. We can supply to you IQ OQ PQ and CE along with the machine.
4.The Punch Type (EU) is D/B/BB/BBS for customer choice.
5.Guarantee 1 year

6.Full compliance with GMP requirements.
7.Supply free FAT testing

8.Supply SAT testing according to customer request.


High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
Machine features:
1. No hand wheel system , HIM controlled.
2.Forced Feeder system supplying Forced Feeder system is controlled byIndependent Motor with variable-frequency
regulating speed technology . According the Material performance to change the running speed , Fundamentally Improve the powder fluidity and Filling performance .Solved the Problem of underfeeding on High Speed .

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)


3. Automatic Weight control function
With Weight Automatic Control Functions ,rejection in batch and in single .Normally ,the weight tolerance can control within ±2% .
4. The Feeder Bottom Surface and Die table surface gap less than 0.05mm ,And with the scraper device ,Reducing the leakage . Increasing the
utilization and Tablet Weight more stable.
High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
5. With The Pre-pressure and Main Pressure Exhaust air Through the Pre-Pression to ensure tablet forming on the Main Pressure position .
Greatly increasing the quality of tablet .
High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

6. Every Punch Pressure will be showed on HMI.

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
7.Hydralic system automatic function :
Adopt Integrated block Structure ,PLC can control the Hydraulic Pressure value after setting the Hydraulic pressure upper,lower LimiteValue for supporting and
suffering . Which can guarantee low noise running stable and with overload pressure protection .
High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
8. Lubrication system automatic function .
Lubrication Pump will be automatic controlled by System according to lubrication time and parameter. User can adjust according to demand .
9. Rejection System automatic function can rejection single and in Batch , Single rejection will blow the signal bad tablet to reject channel

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
10. Dusting system automatic function
11. Machine will be automatic stop when achieve the set capacity
12. Machine will be automatic stop when over rang set parameter
13. Touch Screen will automatic closed in the Un-operation state (time can be set according to user demand)
14. Machine will automatic stop in the alarm state meantime will light.
Alarm List
1,Door Protection Alarm
2,Upper & Lower Punch Tight Alarm
3,Leakage of Oil Alarm
4,Oversize Main Pressure Alarm
5,Oversize set value main pressure alarm
6,Upper & Lower Guide alarm
7,Oversize filling alarm
8,Undersize Filling Alarm
9,Overload main motor alarm
10,Feeding Motor Overload alarm
11,Single Punch Upper & Lower Value Over proof alarm
12,Countious punches over proof alarm protection function
13,Electrical system problem alarm
14,Leakage of powder alarm
15,Wrong set parameter alarm

Electric control function :

1,Inch Lubrication function
2,Inch Start , Inch feeding powder
3,Bad tablet/good tablet channel changed by manual (forced rejection)
4,Current capacity Accumulative Output display and clear .
5,Dust collecter and deduster running by manual
6,Hydraulic system pressure ,pre-pressure value display
7,Forced Feeding system , Twice Mixed
8,Tablet Average pressure , Average pressure deviation,single punch Max pressure ,Min Pressure and Punch No will be showed online
9,parameter can be stored and transform.
10,Printing online
11,Pulse sensor can be online monitored
12,Pressure value curve line show online
Sensor system - alarming first and then stopping machine when any one is happened as following situation.
A. Without powder or pellet
B. Open the plastic door
C. Motor of Dust collector is overload
D. Inverter is in trouble
E. Lack of lubrication

Main Technical Data:
Model GZPT26 GZPT32 GZPT40 GZPT45
Number of dies 26 32 40 45
Punch & die type (EU) D B BB BBS
Max diameter of tablet (mm) 25 16 13 11
Max diameter of abnormal tablet(mm) 25 18 16 13
Maximum pre-pressure (KN) 20
Maximum main pressure (KN) 100 80 80 80
Maximum filling depth (mm) 20 16 16 16
Max output (t/h) 170000 210000 260000 280000
Idle load noise dB(A) <75
Power of main motor (KW) 380/220 V 50/60HZ 9.5KW
Size of machine (mm) 830×870×1995
Net weight of machine (kg) 1650

Key components:
PLC Siemens S7 series Germany
Touch Screen Siemens Smart (10 inch) Germany
Frequency converter Siemens V20 7.5KW Germany
Contactor Siemens 3RT series Germany
Short-circuit protector Siemens 3RV series Germany
Bearing IKO/NSK 6214ZZ Japan
Power switch Tianyi(joint) TYX1-P-11/G China
Reduction gears WUMA SAF67/77 China
D/L relayer ELCO 24VDC Germany
Connection terminal Weidmuller ZDU2.5 Germany
Scram button Schneider ZB2 France
Lubrication system Shenxiang YET-B2/B2P2 China
Hydraulic unit HAWE HC14/0.61-B1 Germany
Step motor SiaoKe(joint) 90TDY060D4-2 China

Layout of the machine

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)


Tags: Tablet press , Tablet making machine, Pill making machine , Press machine, pressing machine, punching machine, Tablet machine, Rotary tablet press machine , Single punch tablet press , Mini tablet press ,l ab tablet press , pharmaceutical equipment, pharmaceutical machine , pharmaceutical machiner y, tablet presser , Tablet pressing machin e, Punch tablet press , Pill press machine , Powder tablet press , Tablet compression machine , Machine press , Candy tablet press , Automatic tablet press
High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)

All kinds of tablet Sample:

High Speed Automatic Rotary Pill Tablet Making Press Pharmaceutical Machine (GZPT40)
