Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine

  • Shanghai, China
  • 20 Sets/Year
  • L/C, T/T, Western Union, Paypal, Money Gram
  • GZS-9A
  • Customized
  • New
  • 1 Year
  • Suppository Liquid Bottle Forming Filling Sealing
  • 18,000-22,000 Capsules/H
  • 0.5-3.7g
  • SS316/SUS304
  • PVC,PVC/PE
  • Bullet Form, Torpedo Form, Duck-Mouth Form and Oth
  • 17.4mm
  • 9 Filling Head
  • 50L
  • 2500kg
  • BSIT
  • Export Standard Wooden Case
  • Meet GMP Standard
  • Made in China
  • 8422303090
  • Preparation Machinery
  • Suppository
  • Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine

The machine is made up of four parts:


1. High-speed suppository belt system
2. High-speed filling machine
3. High-speed cooling machine
4. High-speed sealing machine.

All the processes can be made automatically including shell-making, infusing, cooling,
Shaping, and sealing of the suppositories. It also doesn't infuse in the collapse and automatic
Rejection of it. The unit is controlled by PLC procedure with human-machine interface
Operation and it is the highest automatic suppository equipment in the country today.


working video as following:

https://www.youtube.com/watch?v=7f5x86V-VS4&feature=youtu.be
https://www.youtube.com/watch?v=zesbLtyMzgw&feature=youtu.be



Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine
Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine
Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine
Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine

Technology advantage:

1. The adoption of PLC programmable control and human-computer interface operation the unit is simple to operate and with high automaticity.
2. With the function of automatic deviation rectification the characters' position can be controlled as you like. The suppositories have the neat and good appearance.
3. With the function of detecting collapse, infused quantity, the liquid level of the charging basket.
4. The infusion is adopted the servo motor system exactly adjusting the infusing quantity with menu-memory-function and simple to change the specifications.
5. The adoption of insert-type straight line infusion mechanism has the advantages of correct location, no drop medicine, and no adhesion phenomenon.
6. Cooling protection shut down, the band comes out continuously without end breaking and low waste rate.
7. Not infusing the wastes, auto-drill, and automatic rejection of them at the end of the machine.
8. Interlock protection, intelligent alarm, and safety assurance.
9. Continuous band-making and sealing and the shearing numbers can be set at will.

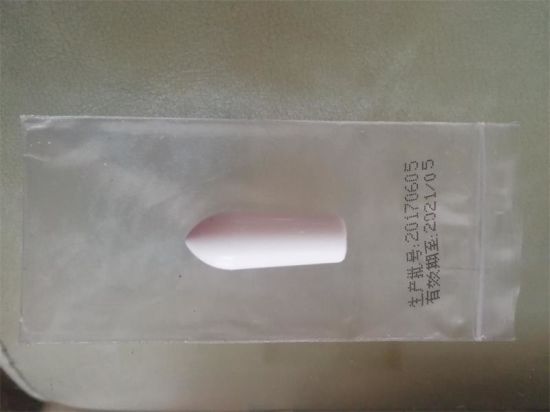

Sample:

Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine


Technical Parameter:

Output 18000-22000 capsules/h
Dosage per suppository cell 0.5-3.7g
Allowable Error of granular weight ± 2%
Shape of suppository Bullet form, torpedo form, duck-mouth form and other special form
Center distance 17.4mm
Patterns on a die: 9 granules
Sheets specification Height: 56-58mm, thickness: 0.15± 0.01mm
Capacity of reserve liquid 50L
Filling height 2000 mm
Power Voltage 380V three-phase AC
Total Power 17KW
Barometric pressure 0.55-0.65MP
Gas consumption 1.0m3/min
Water consumption 480L/h (circulations)
Overall dimension 4000× 5700× 2000 mm
Total weight 2500kg


Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine

Gzs-9A High Speed Suppository Liquid Bottle Forming Filling Sealing Machine
