Flower Basket Big Pressure Tablet Thp-20 Model Hydraulic Tablet Press



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
THP-20
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Max Tablet Diameter:
30mm
Max Pressure:
40kn
Max Dia of Tablet(mm):
30mm
Max. Depth of Tablet(mm):
25mm
Max. O.D of Ring Like Tablet (mm):
22 mm
Hole Dia of Ring Like Tablet(mm):
5.10mm
Filling Depth of Ring Like Tablet(mm):
25mm
Production Capacity(PCS/Min):
2070PCS/H
Motor( Kw):
1.1kw
Net Weight(Kg):
520kg
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP standard
Origin:
Made in China
HS Code:
8438800000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Precision
Certification:
GMP
Voltage:
220V
Computerized:
Non-Computerized

Product Description

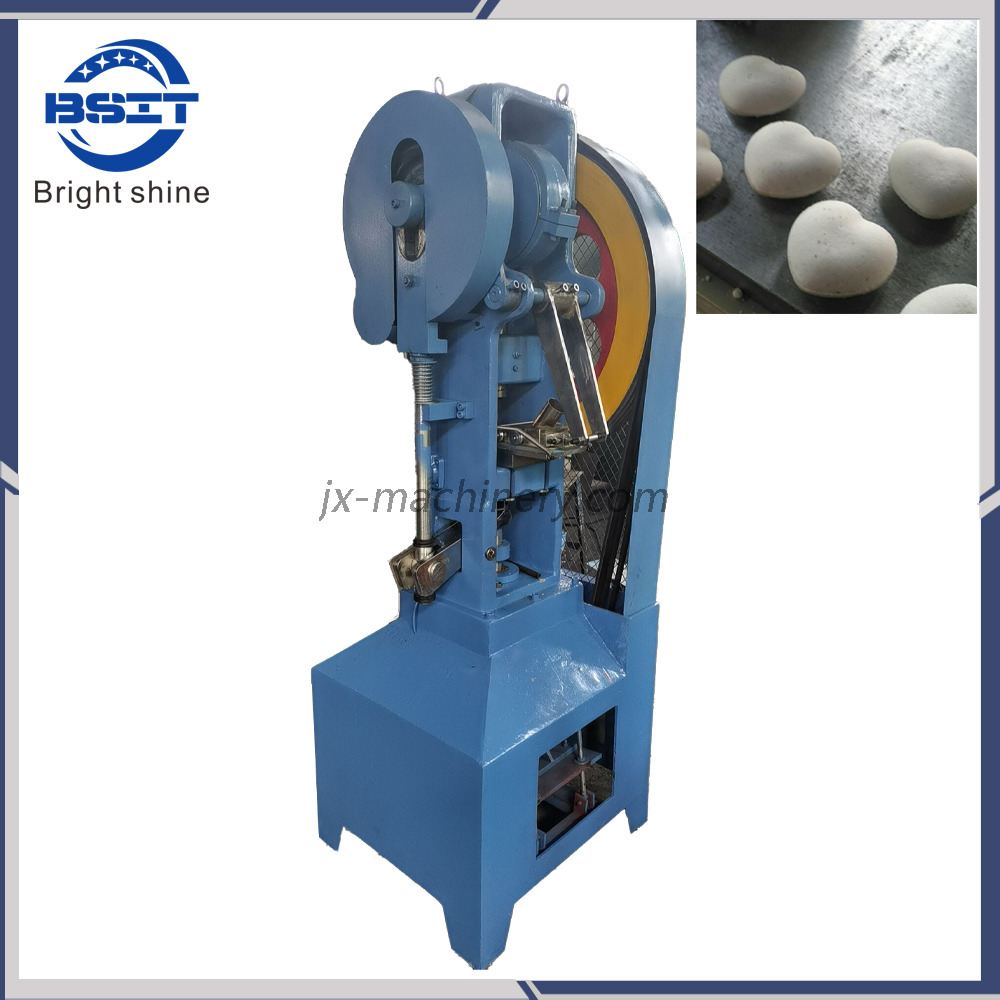

Hydraulic Tablet Press Model Thp-20 Flower Basket Big Pressure Tablet

Main introduce: We make and supply various kinds of tablet press machines, such as animal licking salt block press machine(1kg 2kg 5kg 10kg even 25kg), chlorine tablet press, 500T/1000T large hydraulic tablet press and so on, which have the characteristics of high stability, high efficiency, low cost, save work, and one-person -multi-equipment.

Suitable product:

Candy, coffee block, chocolate, seasoning block, chicken tablets, tea-leaves, preserved fruit, cheese and other material's molding . it can press any powder/granules into tablet or blocks.

All kinds of powder forming in Sanitizer, water purification salt block, bath salt tablet and other corrosive materials. toilet articles, industrial salt tablet, chemical powder, ceramic, chicken essence powder.

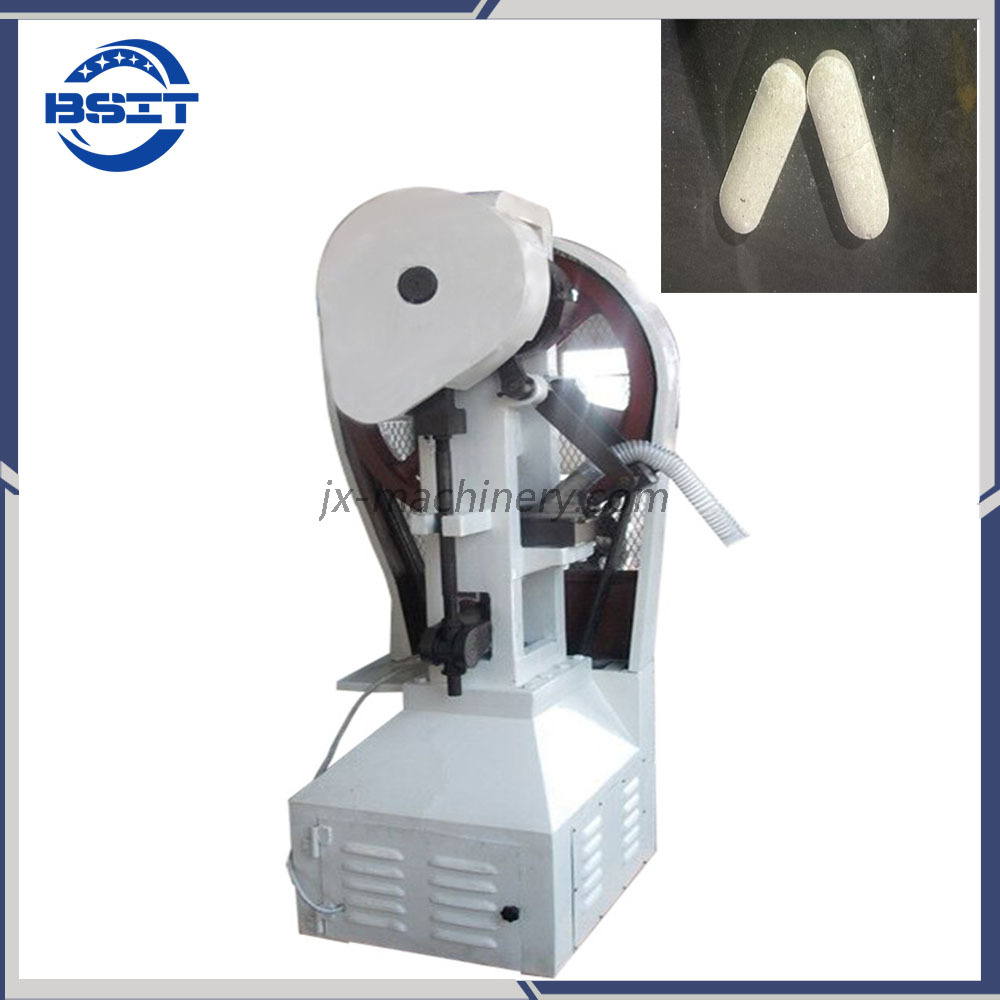

Flower Basket Big Pressure Tablet Thp-20 Model Hydraulic Tablet Press

Main Application:

This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.

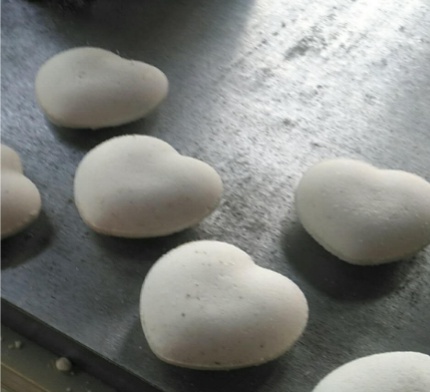

Sample:

Flower Basket Big Pressure Tablet Thp-20 Model Hydraulic Tablet Press

This machine is a medium continuous automatic tablet press which is one of the essential equipment for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food, electronics components, various tablets of pesticide and fertilizer etc. In small-batch production, laboratory and hospital. The machine can press special-shaped circular tablets of different kinds, and can also process the tablets of pesticide both sides are impressed trademarks, letters and simple patterns.

Technique parameter:

Model	THP-6	THP-10	THP-15	THP-20
Working Pressure (kN)	6T	10T	15T	20T
Max. dia. of tablet (mm)	35mm	50mm	55mm	65mm
Upper punch max travel(mm)	80mm	100mm	100mm	100mm
Loading height(mm)	40mm	50mm	50mm	50mm
Lower mold diameter(mm)	20mm	60mm	35mm	50mm
Production times(times/min)	25	25	25	25
Product error	±0.05	±0.05	±0.05	±0.05
Motor power	1.5	3KW	3	3
Size	7008001600	8009002100	8009002100	9008002300
Weight	0.3T	1.2T	1.3T	1.5T

Model	THP-25	THP-30	THP-45	THP-60
Working Pressure (kN)	25T	30T	45T	60T
Max. dia. of tablet (mm)	80	85mm	90mm	100
Upper punch max travel(mm)	120	130	140	110mm
Loading height(mm)	90	100	120	60mm
Lower mold diameter(mm)	130	140	100	100mm
Production times(times/min)	25	25	25	20
Product error	±0.05	±0.05	±0.05	±0.05
Motor power	4	4	5.5	5.5
Size	218010201080	224011001040	233011651080	90010002600
Weight	1.6T	1.7T	2.1T	2.4T
