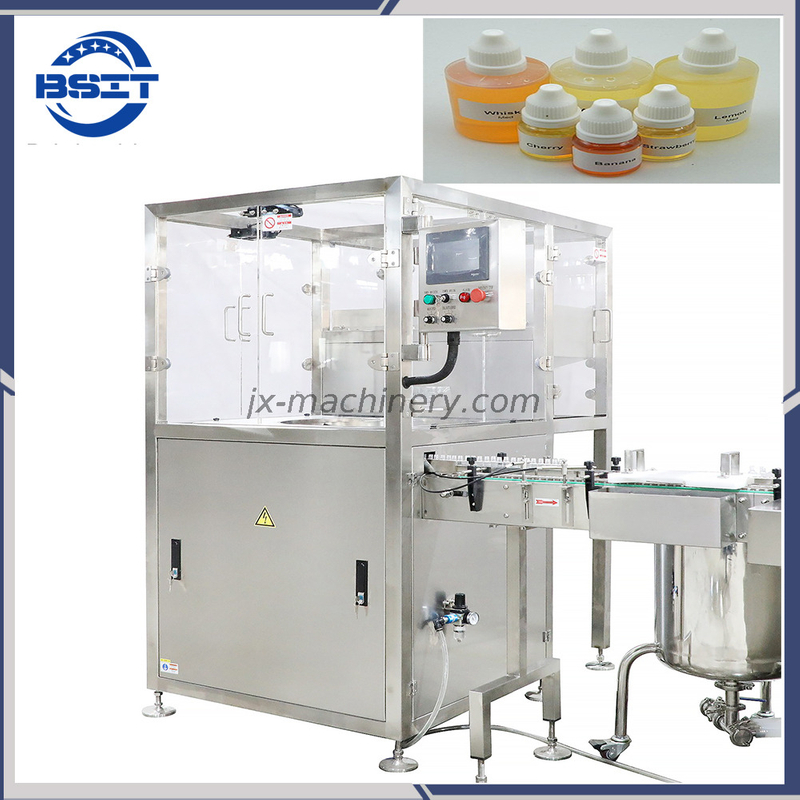

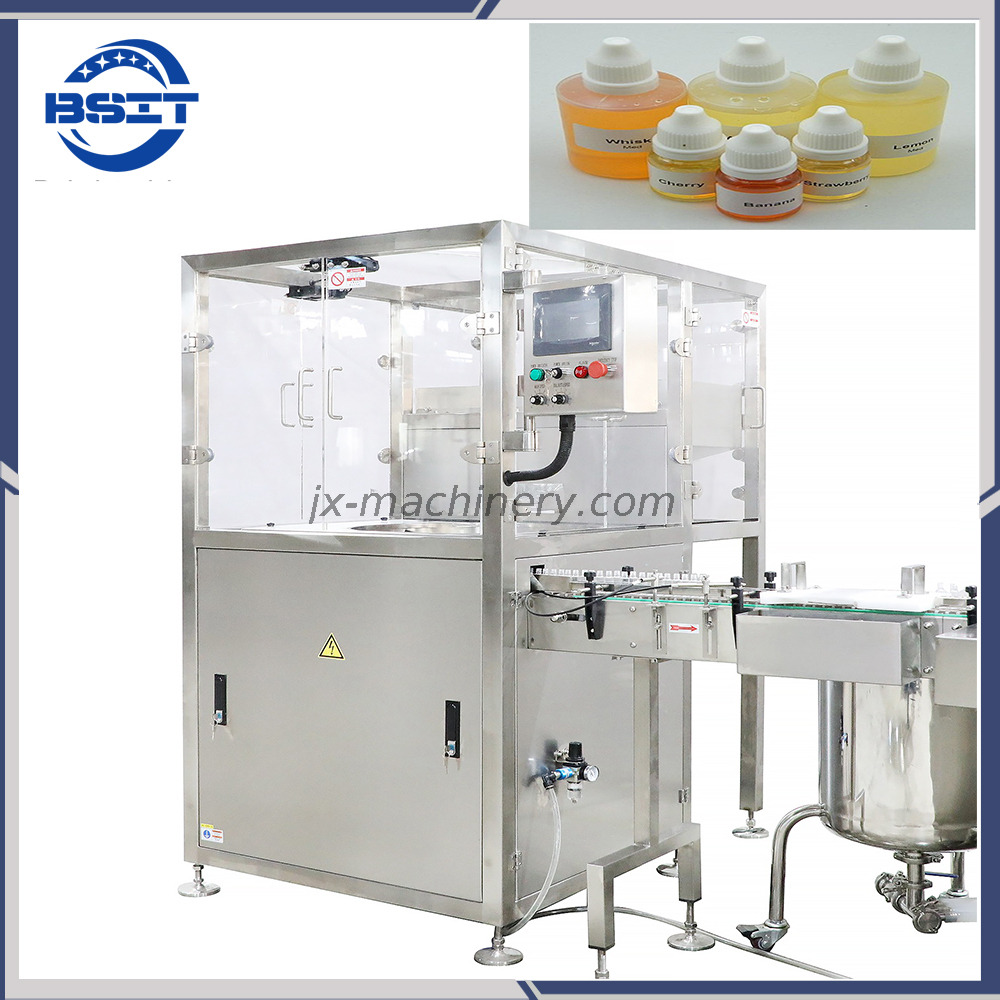

Factory supply manufacture Automatic servo motot filling systems e-liquid bottle filling machine

Liquid oil /E-Cig/E-liquids/Eyedrop filling plugging and capping machine suitable 5-30ml round PET bottle or similar bottle, The machine is composed by a load turntable, by piston pump (Metering pump) ceramic piston pump(alternative peristaltic pump) according to difference liquid viscosity; capacity by fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loading turntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.

Availability:



Inquire Add to Basket

Model:
DXYG
Brand:
BSIT
Port:
Shanghai, China
Production Capacity:
50 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram

Product Description

Factory supply manufacture Automatic servo motot filling systems e-liquid bottle filling machine

why choose our machine /our machine advantage:

This machine has been to UK Europe big E-Liquids factory .
Suitable for all kind CBD oil/Vape oil/Liquid oil/eyedrop
Guarantee 1 year
Supply free FAT testing
Supply SAT testing according to customer request.
It is SS316 contact with product
suitable for Glass or plastic bottle

Main introduction :

1. function suitable production line
Bottle in-feeding → filling→ (plugging)→ cap placing→ capping →bottle out-feed

2.high filling precision:≤±1%
3.Filling range and production capacity:80pbm (according to 10ml PET bottle)
4. Qualified rate:≥99.9%
5. Save electricity : Power:220V 50HZ

6total output:≤1.2kw
6. Use high quality SS316 stainless steel contact with liquid, other parts use SUS304 stainless steel
7.air pressure range:0.4-0.6MPa;Air consumption10-25L/min

8.total weight:≤1000kg
9.overall dimension:please refer to the diagram

10. high quality PLC Touch screen platform Host frequency variable speed controlling, automatically show the current frequency
11. this machine has CE certificate in order to export Europe factory. also meet with GMP and CGMP standards
12. Supply English IQ,OQ,document and English manual user's
13.Supply FAT testing and SAT testing

14.Guarantee 1 year
15. bottle range: 5-100ml
16. bottle material: plastic bottle or glass bottle
17. it is made of bottle, plugging, capping, or dropper + bottle
18. pump as optional from stainless steel pump (piston pump, peristaltic pump or ceramic pump)
19. Low maintenance
20. Easy to use control display panel PLC touch screen
21. We can make production from filing plugging capping machine +labeling machine+carton packing machine

CBD E-liquid filling machine FAT testing working video as linkage: https://youtu.be/PF_8swVvD7Q
E-liquids/Eyedrop SAT testing working video for UK E-liquids factory as linkage :https://youtu.be/yqfhaqtj71o

1. BLP-120 automatic bottle Unscrambler
2. BDXYG2/1/1 E-cig Filling Plugging Capping Monobloc:

3. BSMT-A Adhesive Label Wrap-Around Machine

4. BSM-125 carton boxing machine

Technical Features:

Kind of bottle	Round eyedrop bottle or similar
Bottle size	Min. Ø20mm Max. Ø30mm
Speed	80~100bpm on 10ml~5ml
Filling volume	5ml~30ml
Filling accuracy	±2%
Power	220V 50/60Hz 1.5kw
Compress air require	50~70L/min, 4~6bar
Machine size mm	Length 2500, width 1420, height 1500
Machine weight:	900kgs
