E-liquids Filling Machine

E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on.
Material:
Availability:
  • DXYG4/2

  • BSIT

  • 8422303090

  • shanghai seaport china

  • 30-50 sets per year

  • by T/T or by L/C at sight

  • 1 set

  • export case

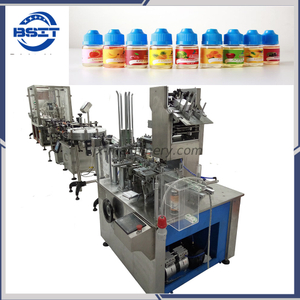

                                    10ml E-cig liquid line (eye-drop filling machine) capacit 60pcs/min

E-liquid filling 1 (3)


General Features:


E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.


why choose our machine /our machine advantage:

  1. This machine has been to UK Europe big E-Liquids factory .

  2. Suitable for all kind CBD oil/Vape oil/Liquid oil/eyedrop

  3. Guarantee 1 year

  4. Supply free FAT testing

  5. Supply SAT testing according to customer request.

  6. Meet with GMP standards. it is SS316 contact with liquid

  7. it has piston pump/peristaltic pump/ceramic pump as optional parts

Main introduction :

 function suitable production line
Bottle in-feeding → filling→ (plugging)→ cap placing→ capping →bottle out-feed

1.high filling precision:≤±1%

2.Filling range and production capacity:80pbm (according to 10ml PET bottle)
3. Qualified rate:≥99.9%
4. Save electricity : Power:220V 50HZ

5.total output:≤1.2kw

6. Use high quality SS316 stainless steel contact with liquid, other parts use SUS304 stainless steel

7.air pressure range:0.4-0.6MPa;Air consumption10-25L/min

8.total weight:≤1000kg

9.overall dimension:please refer to the diagram
10. high quality PLC Touch screen platform Host frequency variable speed controlling, automatically show the current frequency
11. this machine has CE certificate in order to export Europe factory. also meet with GMP and CGMP standards
12. Supply English IQ,OQ,document and English manual user's
13.Supply FAT testing and SAT testing

14.Guarantee 1 year
15. bottle range: 5-100ml
16. bottle material: plastic bottle or glass bottle
17. it is made of bottle, plugging, capping, or dropper + bottle
18. pump as optional from stainless steel pump (piston pump, peristaltic pump or ceramic pump)
19.  Low maintenance
20. Easy to use control display panel PLC touch screen
21. We can make production from filing plugging capping machine +labeling machine+carton packing machine

 Sample:

439382_201526155457406




Kind of bottleRound eyedrop   bottle or similar
Bottle sizeMin. Ø20mm   Max. Ø30mm
Speed80~100bpm  on 10ml~5ml
Filling volume5ml~30ml
Filling accuracy±2%
Power220V 50/60Hz 1.5kw
Compress air  require50~70L/min,   4~6bar
Machine size mmLength 2500, width 1420, height 1500
Machine weight:900kgs
