BYG
BSIT
Shanghai, China
80-100 Bottles/Min Per 10ml
L/C, T/T, Western Union, Paypal, Money Gram
Automatic small bottle filling machine for e liquid/CBD oil liquid filling machine
Working video as following :
https://youtu.be/PF_8swVvD7Q
https://youtu.be/yqfhaqtj71o
General Features:
E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.

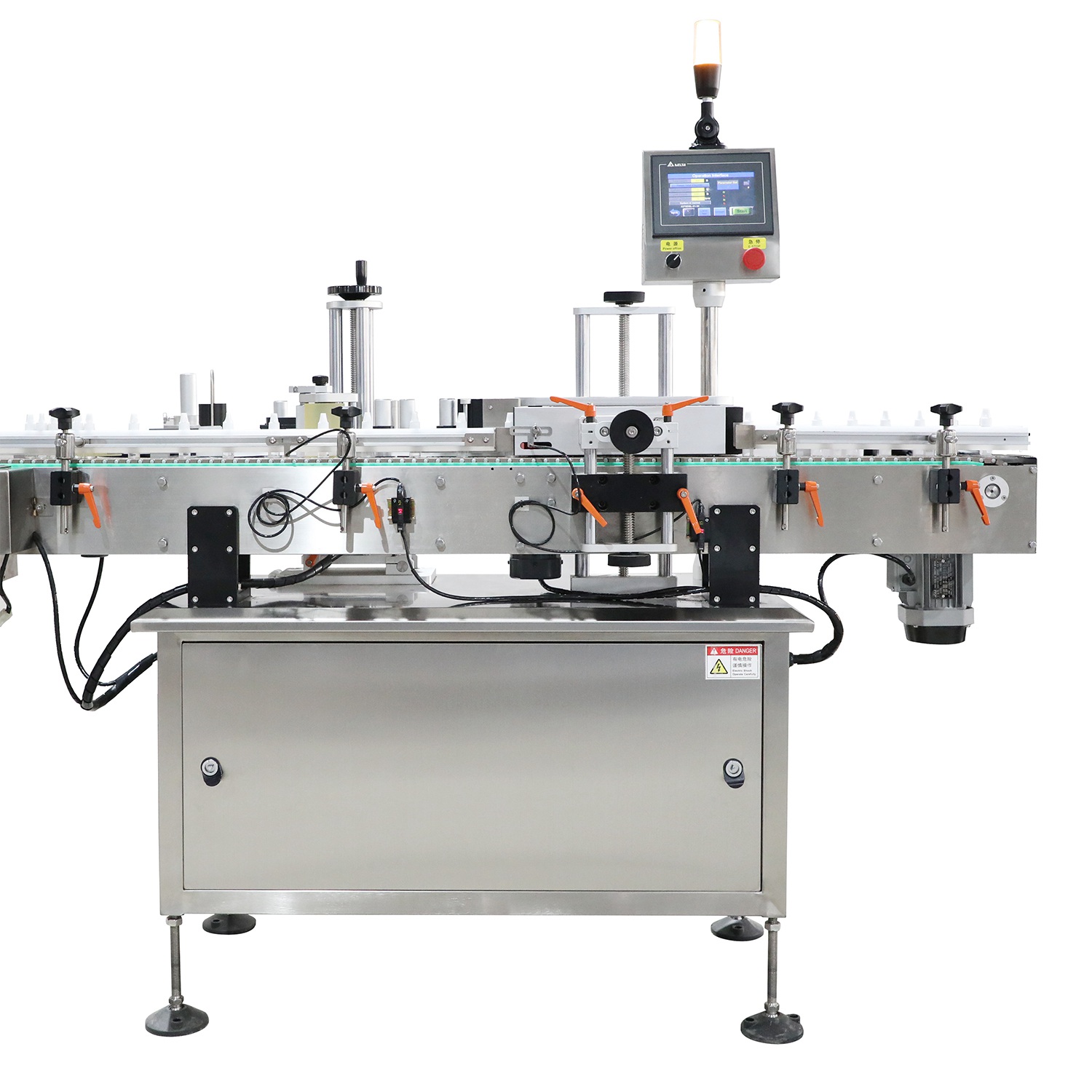

3. BSMT-A Adhesive Label Wrap-Around Machine
4. BSM-125 carton boxing machine
Technical Features:
| Kind of bottle | Round eyedrop bottle or similar |
| Bottle size | Min. Ø20mm Max. Ø30mm |
| Speed | 80~100bpm on 10ml~5ml |
| Filling volume | 5ml~30ml |
| Filling accuracy | ±2% |
| Power | 220V 50/60Hz 1.5kw |
| Compress air require | 50~70L/min, 4~6bar |
| Machine size mm | Length 2500, width 1420, height 1500 |
| Machine weight: | 900kgs |
Sample:
Automatic small bottle filling machine for e liquid/CBD oil liquid filling machine
Working video as following :
https://youtu.be/PF_8swVvD7Q
https://youtu.be/yqfhaqtj71o
General Features:
E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.
3. BSMT-A Adhesive Label Wrap-Around Machine
4. BSM-125 carton boxing machine
Technical Features:
| Kind of bottle | Round eyedrop bottle or similar |
| Bottle size | Min. Ø20mm Max. Ø30mm |
| Speed | 80~100bpm on 10ml~5ml |
| Filling volume | 5ml~30ml |
| Filling accuracy | ±2% |
| Power | 220V 50/60Hz 1.5kw |
| Compress air require | 50~70L/min, 4~6bar |
| Machine size mm | Length 2500, width 1420, height 1500 |
| Machine weight: | 900kgs |
Sample:
