BYG
BSIT
Shanghai, China
60 Bottles/Min Per 10 Ml
L/C, T/T, Western Union, Paypal, Money Gram
1 set
wooden case packing
Factory Price Automatic Eye Drop Filling Machine in Pharmaceutical Disposable Vape Oil /CBD oil/ E-liquids/E-juice
machine speed capacity: 40-50pcs/min as optional
80-100pcs/min as optional
160-200pcs/min as optional
1. BLP-120 automatic bottle Unscrambler
2. BDXYG2/1/1 E-cig Filling Plugging Capping Monobloc:

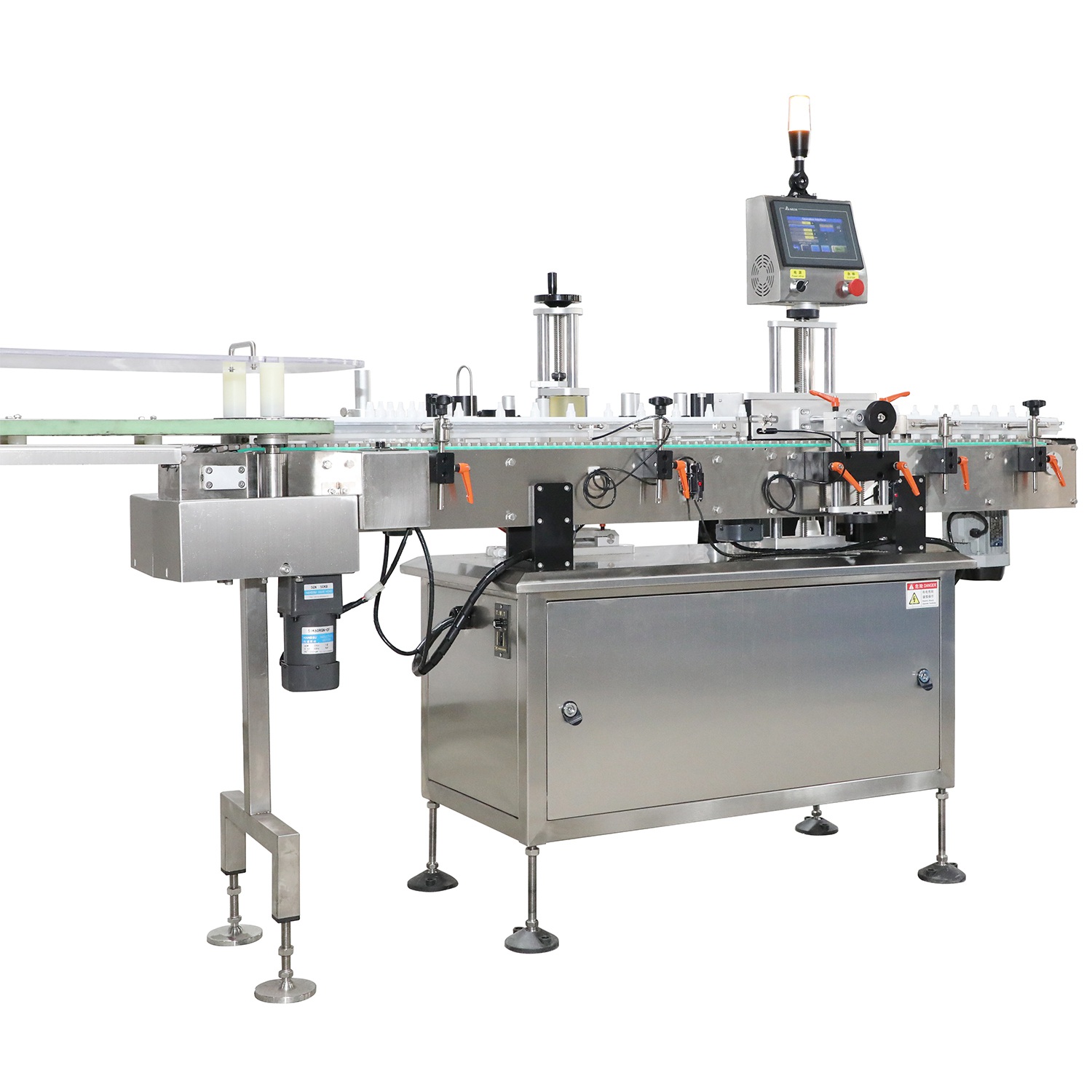

3.BSMT-A Adhesive Label Wrap-Around Machine
4. BSM-125 carton boxing machine
General Features:

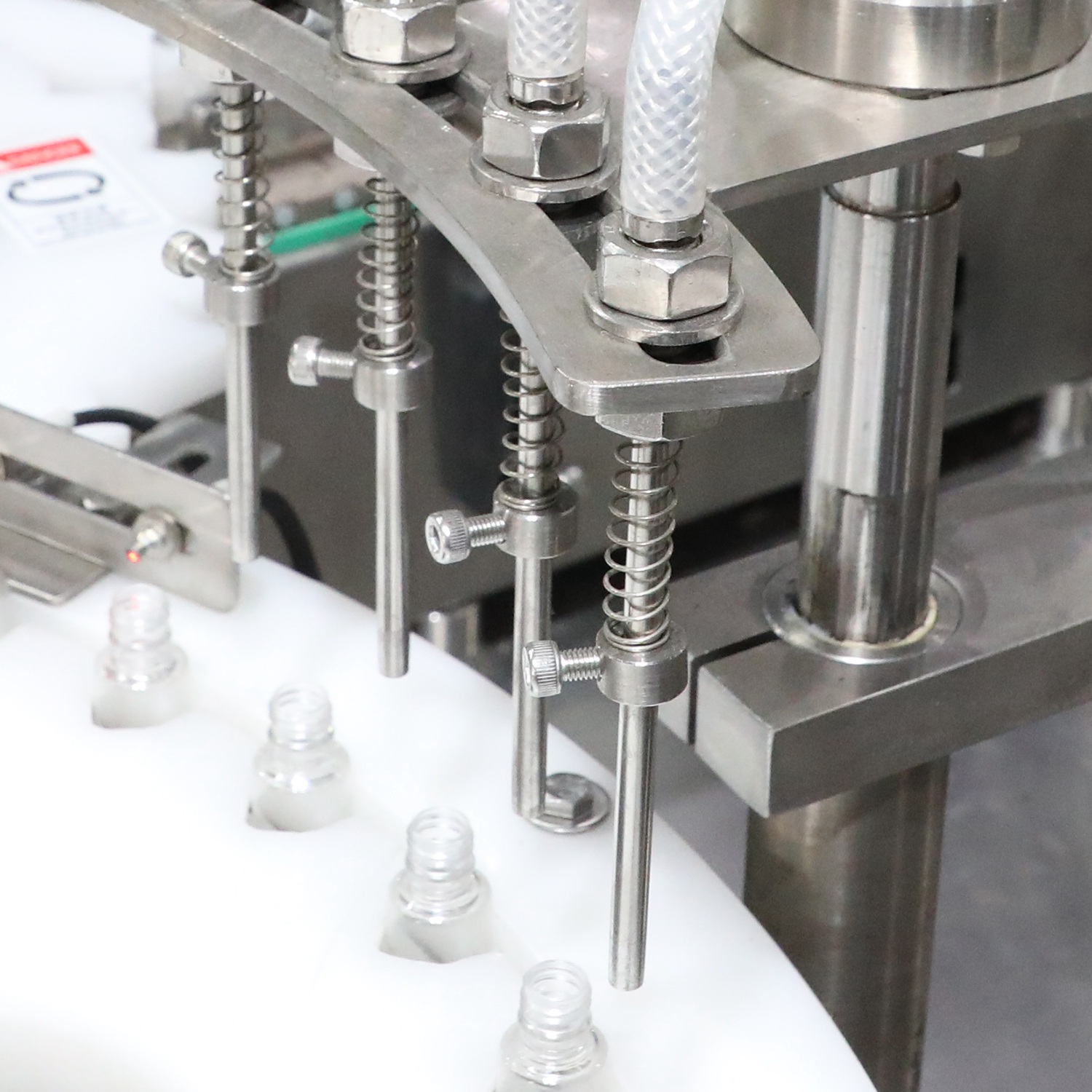

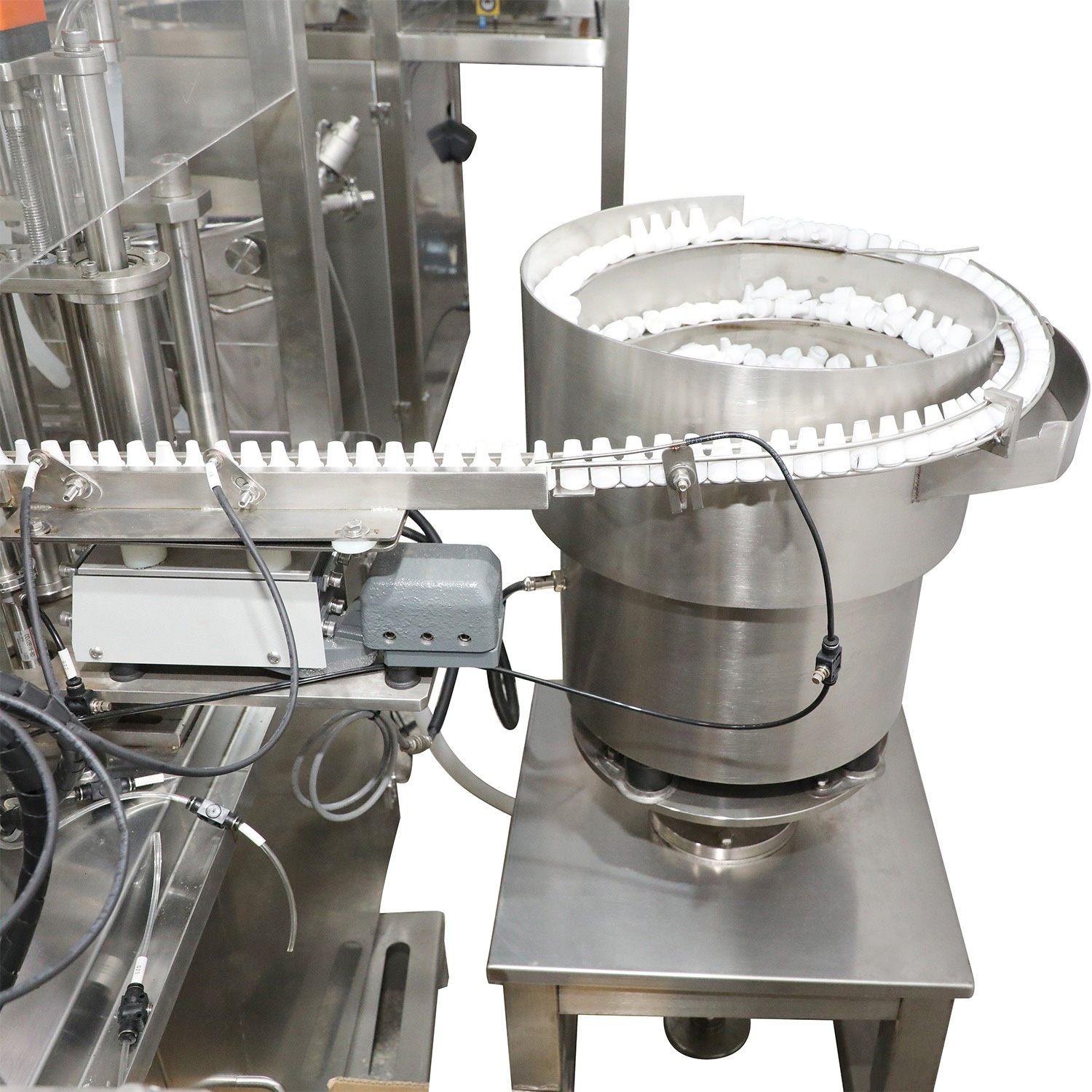

E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntable Ø500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.
Technical Features:
| Kind of bottle | Round eyedrop bottle or similar |
| Bottle size | Min. Ø20mm Max. Ø30mm |
| Speed | 80~100bpm on 10ml~5ml |
| Filling volume | 5ml~30ml |
| Filling accuracy | ±2% |
| Power | 220V 50/60Hz 1.5kw |
| Compress air require | 50~70L/min, 4~6bar |
| Machine size mm | Length 2500, width 1420, height 1500 |
| Machine weight: | 900kgs |
* Other sizes on request
Factory Price Automatic Eye Drop Filling Machine in Pharmaceutical Disposable Vape Oil /CBD oil/ E-liquids/E-juice
machine speed capacity: 40-50pcs/min as optional
80-100pcs/min as optional
160-200pcs/min as optional
1. BLP-120 automatic bottle Unscrambler
2. BDXYG2/1/1 E-cig Filling Plugging Capping Monobloc:
3.BSMT-A Adhesive Label Wrap-Around Machine
4. BSM-125 carton boxing machine
General Features:
E-Cig liquid, Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a load turntable, ceramic piston pump(alternative peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loadingturntable Ø500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.
Technical Features:
| Kind of bottle | Round eyedrop bottle or similar |
| Bottle size | Min. Ø20mm Max. Ø30mm |
| Speed | 80~100bpm on 10ml~5ml |
| Filling volume | 5ml~30ml |
| Filling accuracy | ±2% |
| Power | 220V 50/60Hz 1.5kw |
| Compress air require | 50~70L/min, 4~6bar |
| Machine size mm | Length 2500, width 1420, height 1500 |
| Machine weight: | 900kgs |
* Other sizes on request
