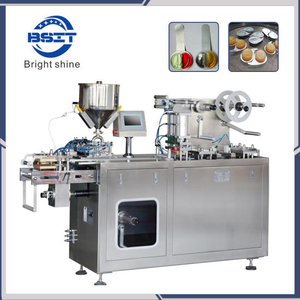

Factory Supplier Chocolate Jam Cheese Blister Packing Machine (DPP250)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
DPP250
Usage:
Outer, Inner
Type:
General
Dpp140 Cutting Frequency:
15-40times/Min
Dpp250 Cutting Frequency:
15-40times/Min
Weight:
1050 Kg
Keywords:
Blister Packing Machine
Product Name:
Blister Packing Machine
Step Distance:
45-160mm
Max Molding Depth:
45-160mm
Power:
5.55kw
Machine Dimensions:
2800X630X1580mm
Materical:
SS304
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Application Field:
Food, Medical, Commodity, Machinery & Hardware, Chemical, Apparel, Textiles
Driven Type:
Electric
Automatic Grade:
Automatic
Structure:
Feeding
Packaging Material:
Plastic
Packaging Type:
Blister

Product Description

high speed servo motor driving tablet/Capsule Blister Packing Machine (Dpp250)

This machine is suitable for aluminum-plastic, aluminum- aluminum, paper-plastic laminated and sealed packing of capsule, tablet, sweet and deformed tablet in the pharmaceutical, food, Electronic and medical equipment industry. Besides the aluminum automatic feeding, the upper and lower texture, concavo-convex cooperating work-team, multi-stage cylinder heat sealing, automatic pressing and printing batch number and aluminum alloy double heating, the machine also has the following characteristics.

Factory Supplier Chocolate Jam Cheese Blister Packing Machine (DPP250)

1. The distance among parts of forming, heat sealing and punching can be adjusted at will to fit for various medicines packing with high precision and strong usability.

2. It pulls with manipulator, adjusts travel at will, operates easily and runs reliably.

3. It adopts cycloid pinwheel to reduce speed and makes the noise low and service life long.

4. It is replaced the mould easily and accurately, adjusts speed stepless and has good performance and high efficiency.

5. The cursor alignment finishes the traction length compensating automatically.

6. Print automatically the batch Number in synchronism with ribbon.

Technical data:

	DPP140	DPP250
PVC sheet	Thickness: 0.2-0.4 mm Width: 100-150 mm	Thickness: 0.2-0.4 mm Width: 160-280 mm
PTP aluminum film	Thickness: 0.02-0.04 mm Width: 100-150 mm	Thickness: 0.02-0.04 mm Width: 160-280 mm
Cutting frequency	15-40 times/min	15-40 times/min
Step distance	45-160mm	45-160mm
Max molding depth	30mm	30mm
Power	4.8 KW	5.55 KW
Power supply	380V 50Hz	380V 50Hz
Machine dimensions	2250x630x1580mm	2800x630x1580mm
machine weight	1050 KG	1850 KG
