Candy Tablet Press for Model Zp29 Ring Form

  • Shanghai, China

  • 50 Sets/Year

  • L/C, T/T, Western Union, Paypal, Money Gram

  • ZP29

  • Customized

  • New

  • 1 Year

  • 22 mm

  • 125,280 PCS/H

  • 100kn

  • Stainless Steel

  • 14-36 R/Min

  • 4kw

  • 15mm

  • 8mm

  • 1500*1300*1650

  • 1850kg

  • BSIT

  • Export Standard Wooden Case

  • Meet GMP standard

  • Made in China

  • 8438800000

  • Preparation Machinery

  • Tablet

  • Precision

  • CE, GMP, ISO

  • 220V

  • Computerized

Candy Tablet Press for Model ZP29 Ring Form

Candy Tablet Press for Model Zp29 Ring Form

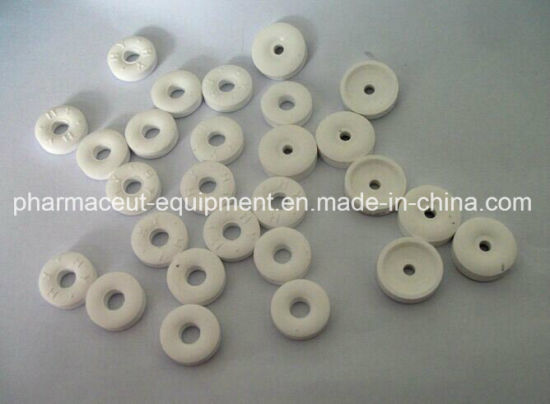

sample :

Candy Tablet Press for Model Zp29 Ring Form

This machine is a kind of double press automatic rotary, press continuous machine, press granulate material to tablet.
This machine main used for pharmaceutical tablet production, and chemistry, food, electric etc industry. It is closedcompletely, material is stainless steel, inner table is stainless steel, can keep surface luster, and prevent pollution,meet the GMP standard.
There is a transparent window, can watch the status of press tablet, side plate can open, easy to clean and maintain.
Layout of all the controller and operation parts is reasonable.
Use frequency converter adjust speed to electric adjust speed, easy to operate, rotary stable, safety and accuracy.
Equipment overload protection device, when the pressure is overload, stop machine automatically, touch button andscreen display.
Traditional system enclosed in the tank below the machine body, and is completely separate individual components,will not produce oil pollution, and the transmission system components infiltration in the oil sump, easy to heat and
wear. Machine has dust collect device, can collect the dust in press room.

Technical data:

The number of punches
29

Max. pressure(KN)
100

Max. diameter(mm)
22

Max. filling depth(mm)
15

Max. thickness(mm)
8

Rotary table speed(rotary/min)
14-36

Capacity(pcs/h)
120000

Power(KW, rotary/min)
4kw

Dimensions(mm)
1500*1300*1650

Weight(KG)
1850

Candy Tablet Press for Model Zp29 Ring Form
Candy Tablet Press for Model Zp29 Ring Form
Candy Tablet Press for Model Zp29 Ring Form
Candy Tablet Press for Model Zp29 Ring Form
