Bzs-230 Uphill Deduster Machine for Tablet/ Polisher Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
T/T
Model NO.:
BZS-230
Customized:
Customized
Condition:
New
Warranty:
1 Year
Name:
Uphill Deduster Machine for Tablet/ Polisher Machi
Keywords:
Uphill Deduster Machine
Max Capacity (Output)PCS/H:
800,000 (Diamter 6mm Tablet)
Max Tablet Diamter:
5mm- 25mm
Dedusting Distance (M):
3.0 M
Dedust Route(M):
6
Suitable:
Uphill or Downhill Model
Power Supply:
110V /220V 50Hz/60 Hz 1p
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Type:
Preparation Machinery
Finished Dosage Form:
Tablet
Precision:
Normal Precision
Certification:
GMP
Voltage:
220V
Computerized:
Non-Computerized

Product Description

BZS-230/200/200F Uphill Deduster Machine for Tablet/ polisher machine

Description:

1.Uphill Deduster is a special equipment to wipe out burr and dust of tablet whilst going up way.
2.It can be connected with tablet press and metal detection systems.
3. 316Lstainless steel are used for all metal parts contacting tablets. Design of GMP.
4. we have uphill deduster machine and downhill deduster machine as optional
5. this machine suitable for pharmaceutical or food . main work for tablet press

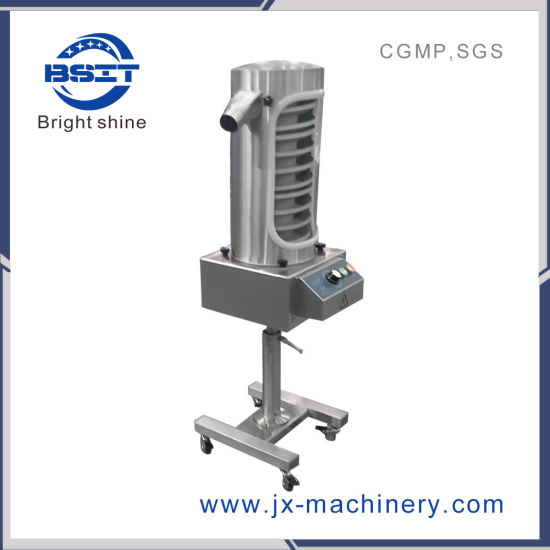

Uphill Deduster Machine

Bzs-230 Uphill Deduster Machine for Tablet/ Polisher Machine

downhill Deduster Machine
Bzs-230 Uphill Deduster Machine for Tablet/ Polisher Machine

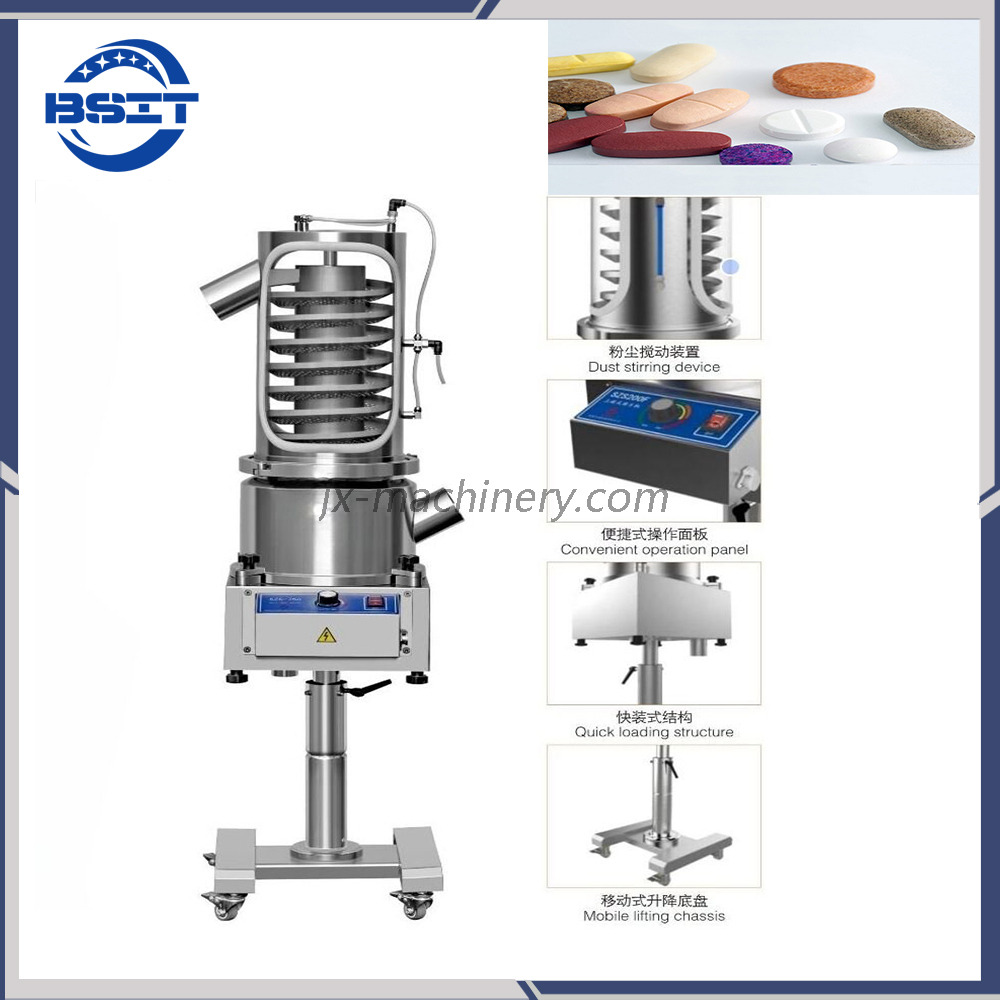

Detailed parts :

Bzs-230 Uphill Deduster Machine for Tablet/ Polisher Machine

Drawing:

All kinds of tablet sample
Bzs-230 Uphill Deduster Machine for Tablet/ Polisher Machine

Technical parameter:

Model	BZS-230/200/200F
Max. Output(tablets/h)	800000(6mm Tablet)
Dedust Route(M)	6
Max. Lift highness (mm)	1220
Max. tablet diameter (mm)	25
Power Supply	110V /220V 50Hz/60 Hz 1P
Compressed air	0.1m3/min 0.05MPa
Vacuum	2.7 m3/min -0.01pa
Overall Dimension (mm)	500X550X(H: 1350-1500)
Weight(kg)	70
